WILLIAM OPTICS REDCAT 71 WIFD f/4.9 REFRACTOR

The William Optics RedCat 71 WIFD brings the new internal focusing mechanism to the largest of the CAT series of Petzval refractors. This makes it simple to install autofocusers such as the ZWO EAF without the need for clumsy belt-driven add-ons.

The Redcat 71 WIFD comes with a FREE Uniguide 32mm guide scope.

The RedCat 71 WIFD features the same excellent Petzval optics as its predecessor, but the addition of the WIFD focusing mechanism makes the whole package more stable, precise and far easier to use.

The WIFD series has been designed from the ground up to support the latest large and heavy high-resolution cooled cameras and accessories. The focuser movement is integrated inside the main OTA, so no external focuser drawtube is needed. This will reduce tilt caused by focuser sag and mechanical flex and lessen vignetting.

WIFD focuser detail as found on the Redcat 61.

The focuser utilizes a zero image shift rack & pinion mechanism for precise adjustability of critical focus, with an external graduated display showing focus position. The lens cell is protected from the elements and is designed to not come out of alignment. The focuser is fully compatible with the ZWO EAF without the need for optional accessories.

With a fast focal ratio of f/4.9 and a focal length of 350mm, the RedCat 71 WIFD is perfect for capturing large deep space objects such as the Rosette nebula, the Pleiades, Eta Carina and more. The RedCat also excels as a telephoto wildlife lens.

The unique optical design includes the highest quality FPL-53 synthetic fluorite glass for the best possible colour correction and a flat field across a full-frame sensor, with a generous 45mm image circle. The CNC-machined and anodized handle bar with finder-style saddle is perfect for attaching a guide scope or other accessories.

M68 x 1, M54 x 0.75 and M48 x 0.75 threads are available to connect a wide variety of imaging systems. The M48 adapter includes an internal thread for fitting 2" filters.

Features

• Interchangeable camera mount
• Full-frame / APS-C compatible
• Apochromatic FPL-53 lenses
• Anti-reflection multicoating
• Brand new patented integrated focuser design

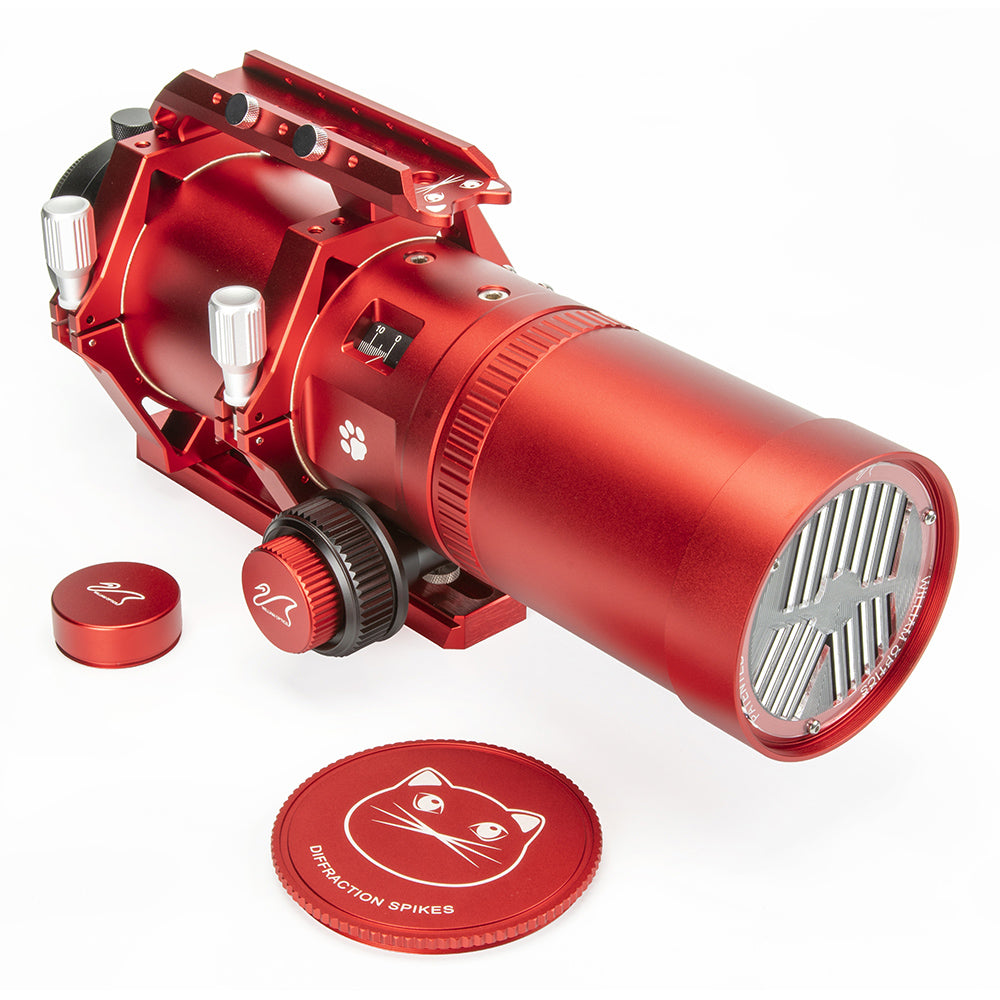

• Super bright Bahtinov mask
• Dual Vixen / Arca-Swiss mounting plate
• Field rotator with markings for easy framing
• Small and easy to store
• 48mm filter slot for standard 2" filters
• Modular mounting options

Specifications

Included items

• RedCat 71 WIFD
• Free Uniguide 32mm guide scope
• Patented Bahtinov mask
• Dew shield
• 210mm dual dovetail
• Finder-style handle bar saddle
• Camera angle rotator
• Internal tilt adapter
• Mounting rings
• Soft carry case

Instructions

Downloads

Instruction manual
