MORAVIAN C5 CAMERAS

The Moravian C5 camera series is designed to accommodate the latest generation of extremely large Sony IMX CMOS sensors with 100 and 150 MPx resolution and diagonal dimensions up to 67 mm. These sensors share many of the same properties of the exceptional sensors used in the C3 series, including the 3.76 μm pixel size with full-well capacity exceeding 50 ke-, very high quantum efficiency thanks to the back-illuminated design and very low dark current. C5 sensors also offer 16-bit digitization, perfectly linear response to light and exceptionally low read noise.

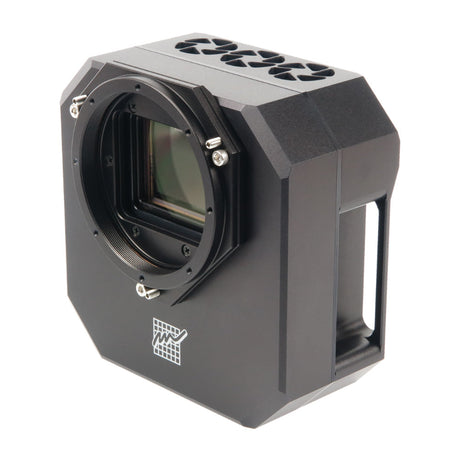

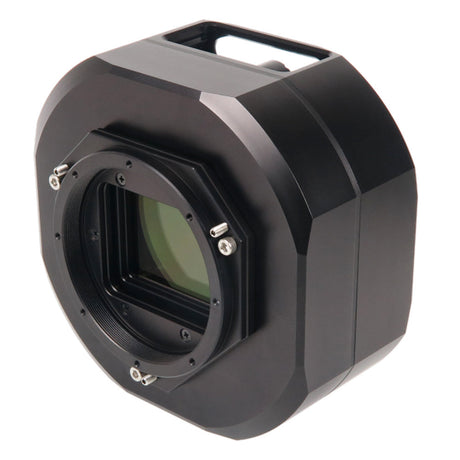

C5 cameras are made in two versions: Asymmetrical version marked C5A and Symmetrical version marked C5S, which are designed to not exceed the central obstruction of reflecting telescopes at primary focus. Both cameras may be equipped with GPS receiver for precise exposure timing.
