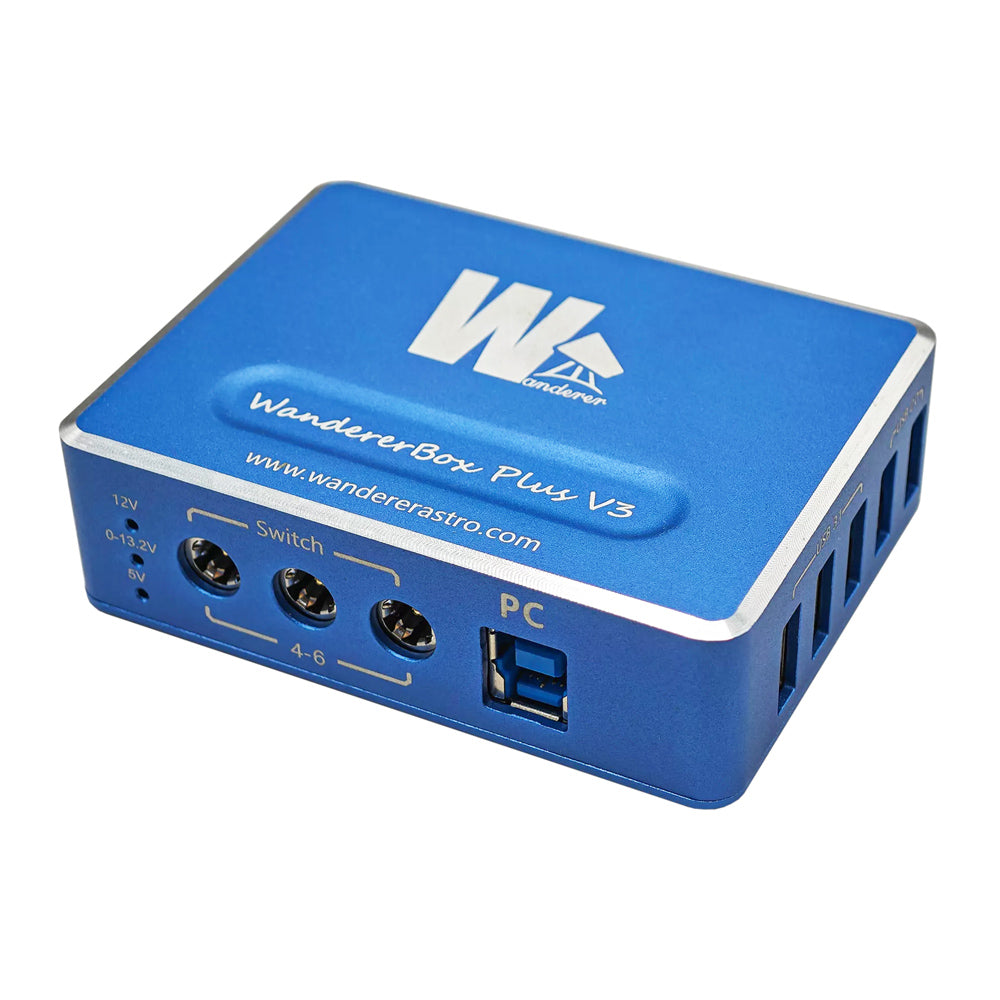

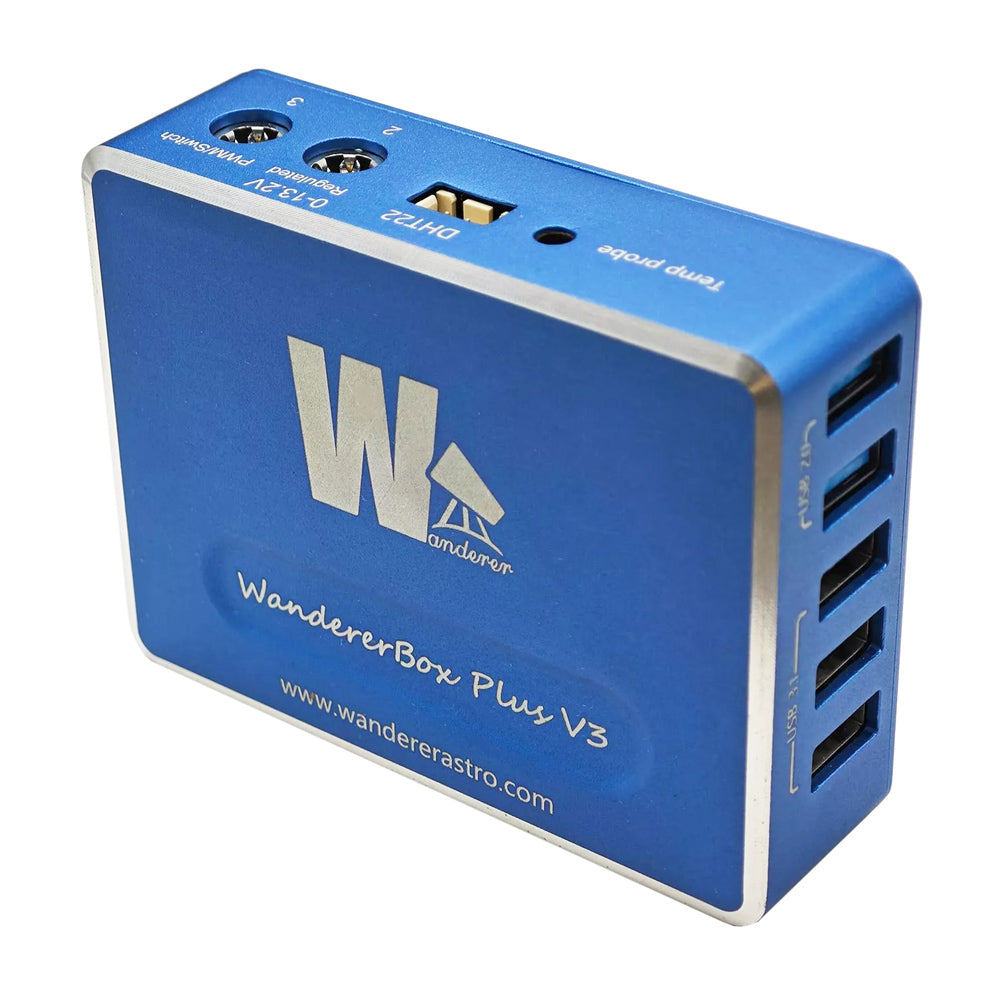

WANDERER ASTRO WANDERERBOX PLUS V3

The WandererAstro WandererBox Plus V3 is a lightweight and compact 5-channel powered USB hub with 6 DC power outputs. With a combined total of 8-10A depending on which ports are utilized, the WandererBox Plus can power your cameras and other accessories with ease.

The WandererBox V3 includes 2 x USB 3.1 ports and 3 x USB 2.0 ports which can be switched on and off together and provide a total of 5A at 5V, enough to supply power to cooled cameras, autofocusers and filter wheels. The Multiple Transaction Translator (MTT) USB 2.0 hub chip ensures high-speed data transmission across every port.

Each USB port is equipped with ESD surge protection for safe usage in very dry climates where static discharges can be an issue. The built-in 12V - 5V step-down module provides continuous current up to 5A, with a self-recovery fuse to prevent overcurrent.

Six 12V DC output ports are available, with up to 10A input current to power your equipment. Port 3 features PWM output for control of dew heaters. The built-in power sensor allows realtime visual monitoring of input voltage and current draw. Indicator lights show the status of each group of power section. Check out the table below for details on each port's capabilities.

The WandererBox Plus V3 includes temperature and humidity sensors and a temperature probe as standard. The software features intelligent and efficient dew heater control including manual and automatic control.

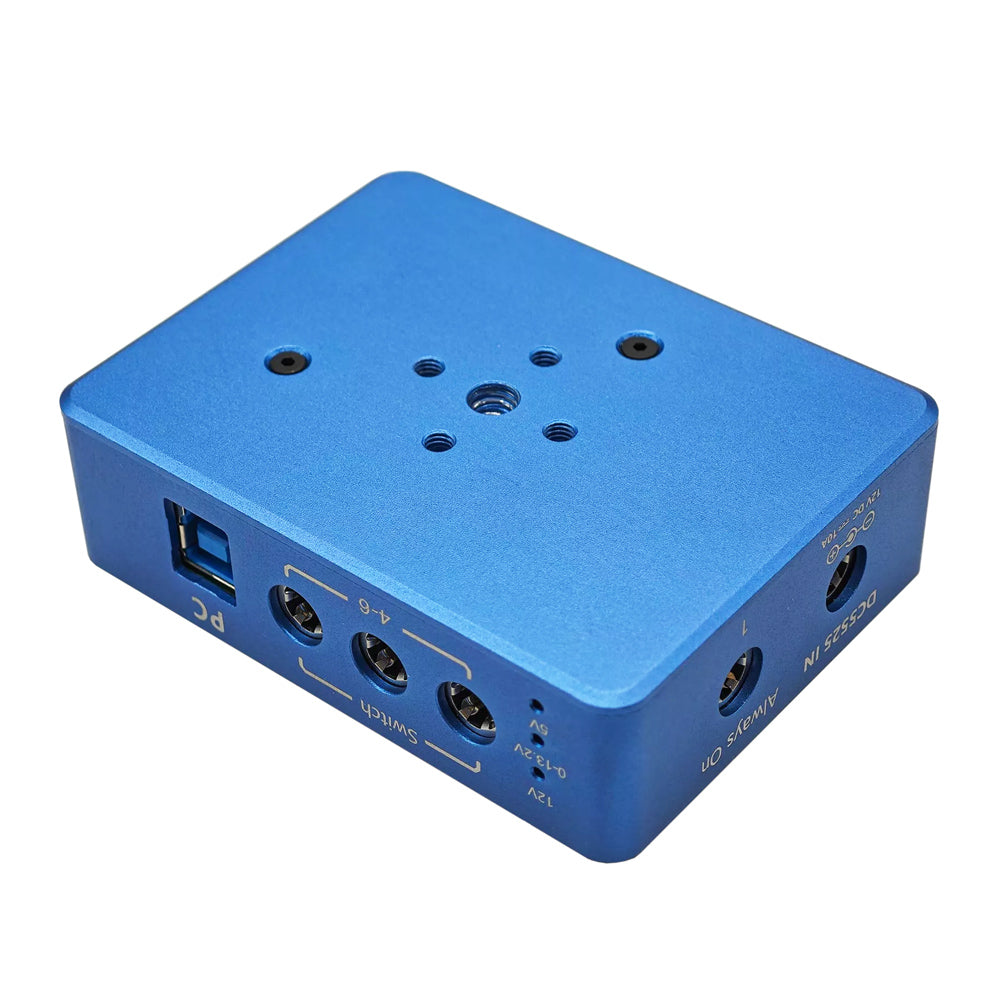

The WandererBox Plus weighs only 150 grams and fits in the palm of your hand. The CNC-machined aluminium alloy body features 1 x threaded M6 and 4 x threaded M4 holes for simple installation onto dovetail bars.

Items included

• WandererBox Plus V3
• 1 x USB 3.0 cable 0.5m
• 1 x 5.5 x 2.1 DC to RCA cable 0.1m
• 1 x Temperature probe 1m
• 1 x Temperature & humidity sensor
• 1 x 5.5 x 2.1 female to 5.5 x 2.5 male adapter

Specifications

Downloads

WandererBox Plus V3 downloads
