WANDERER ASTRO WANDERERBOX LITE V3
Wanderer Astro
0.09 kg
WANDERER ASTRO WANDERERBOX LITE V3 is backordered and will ship as soon as it is back in stock.

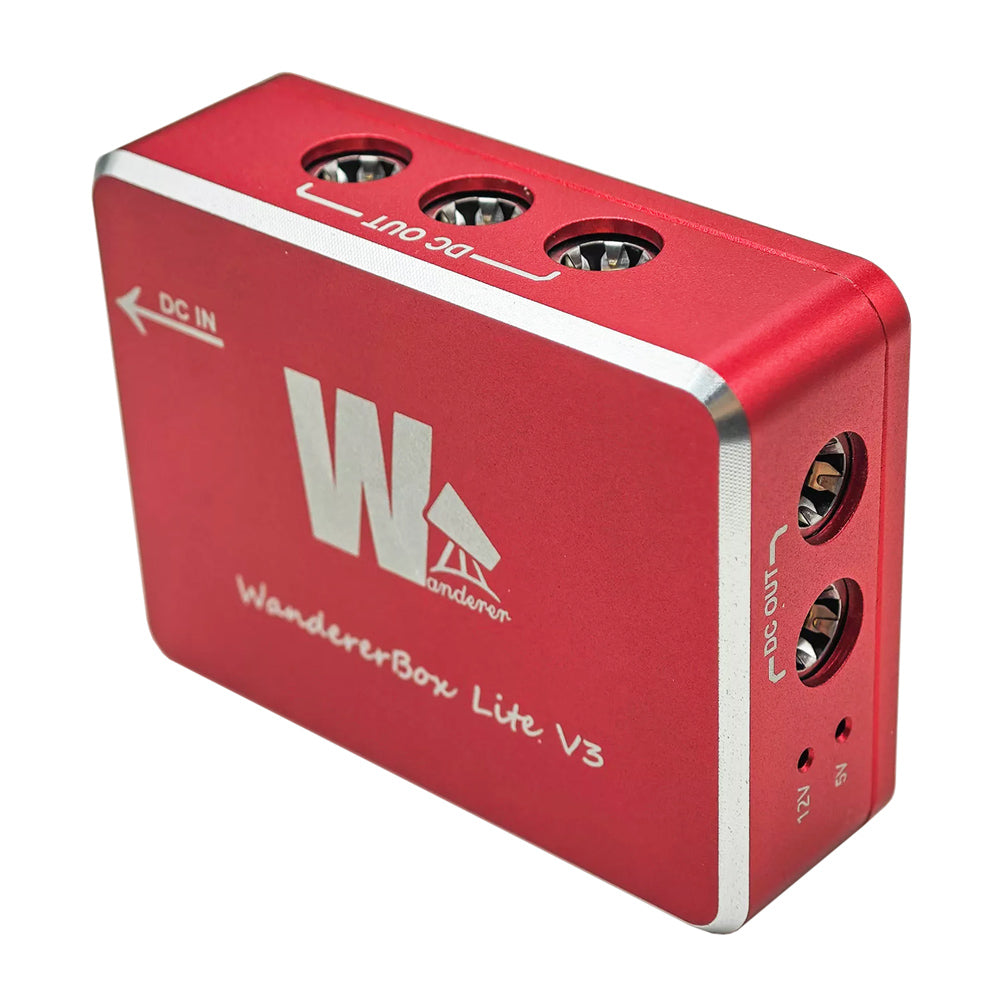

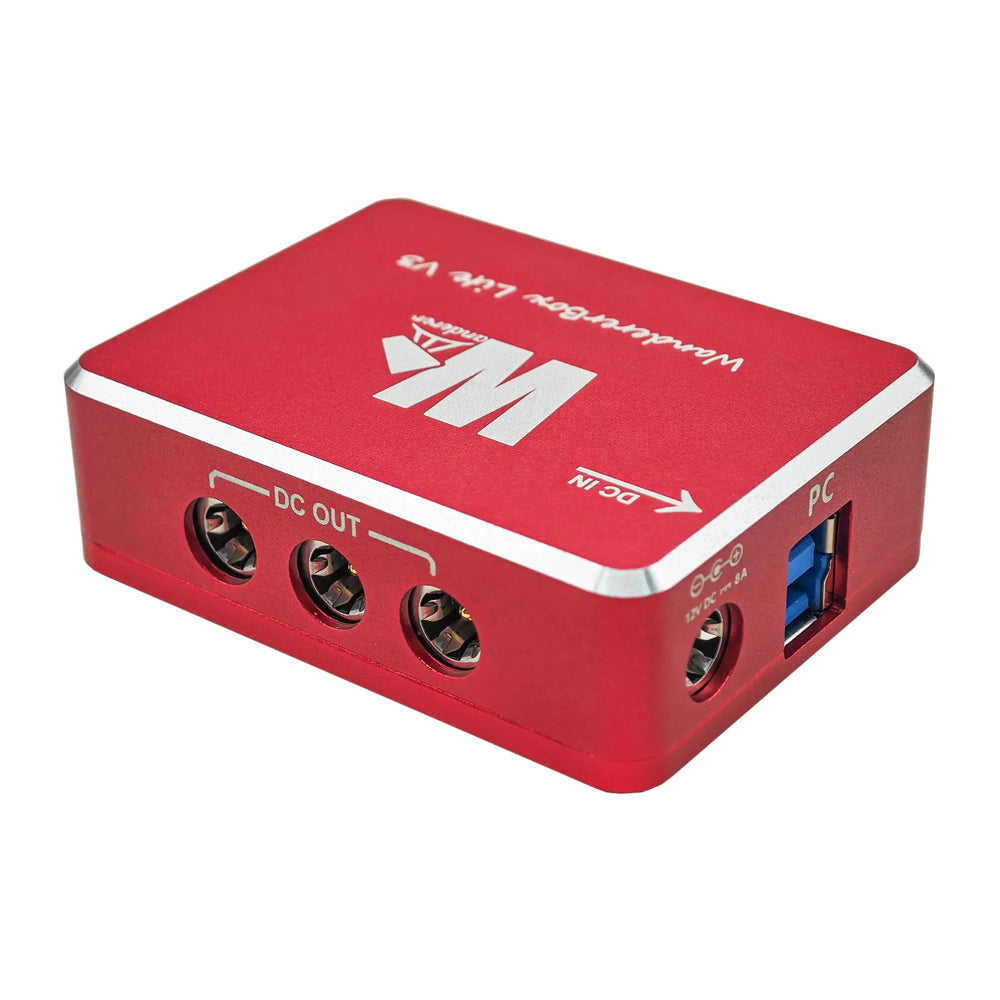

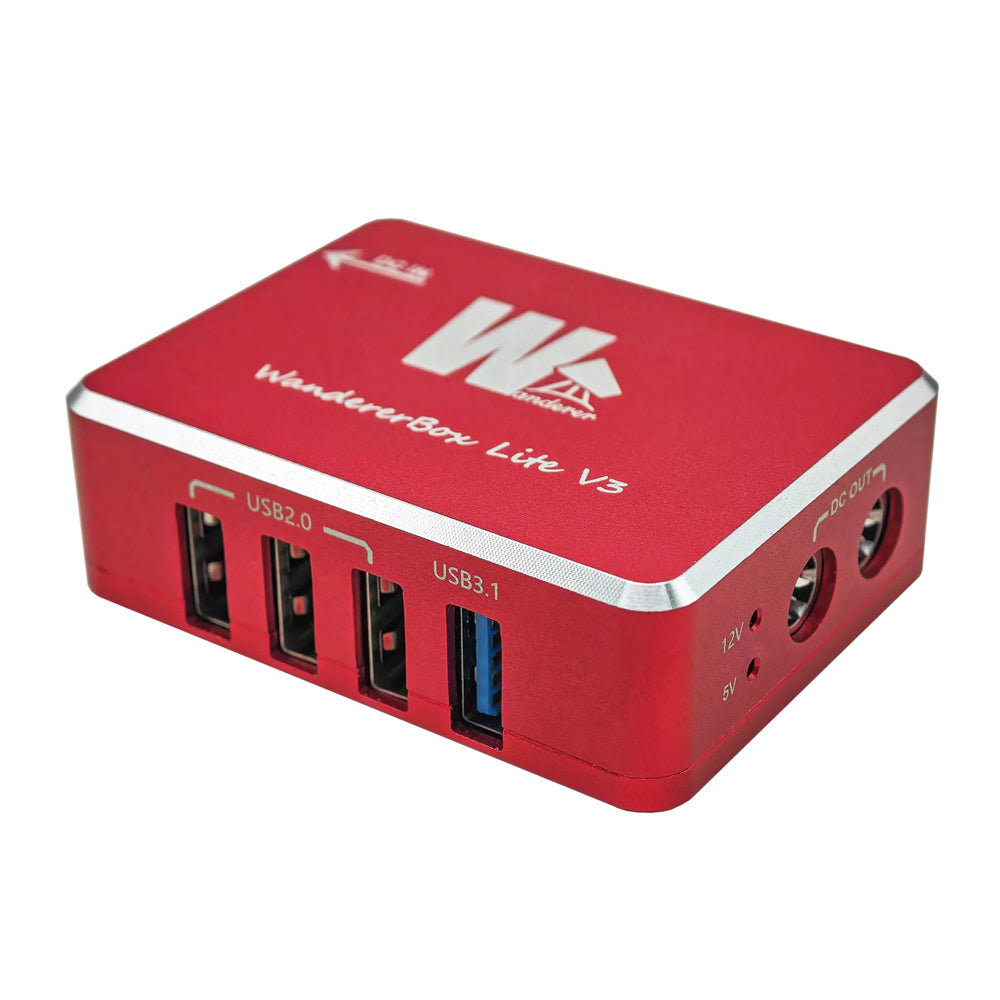

The WandererAstro WandererBox Lite V3 is an ultra-lightweight and compact 4-channel powered USB hub with 1 x USB 3.1 port, 3 x USB 2.0 ports and 5 x DC power outputs. With a combined total of 8A through its DC outputs, the WandererBox Lite can power your cameras and other accessories with ease.
The USB ports can provide a total of 3A, enough to supply power to the ZWO EAF 5V, uncooled guide cameras and filter wheels. Each USB port is equipped with ±15kV ESD surge protection for safe usage in very dry climates where static discharges can be an issue. The built-in 12V - 5V step-down module provides continuous current up to 3A, with a self-recovery fuse to prevent overcurrent.

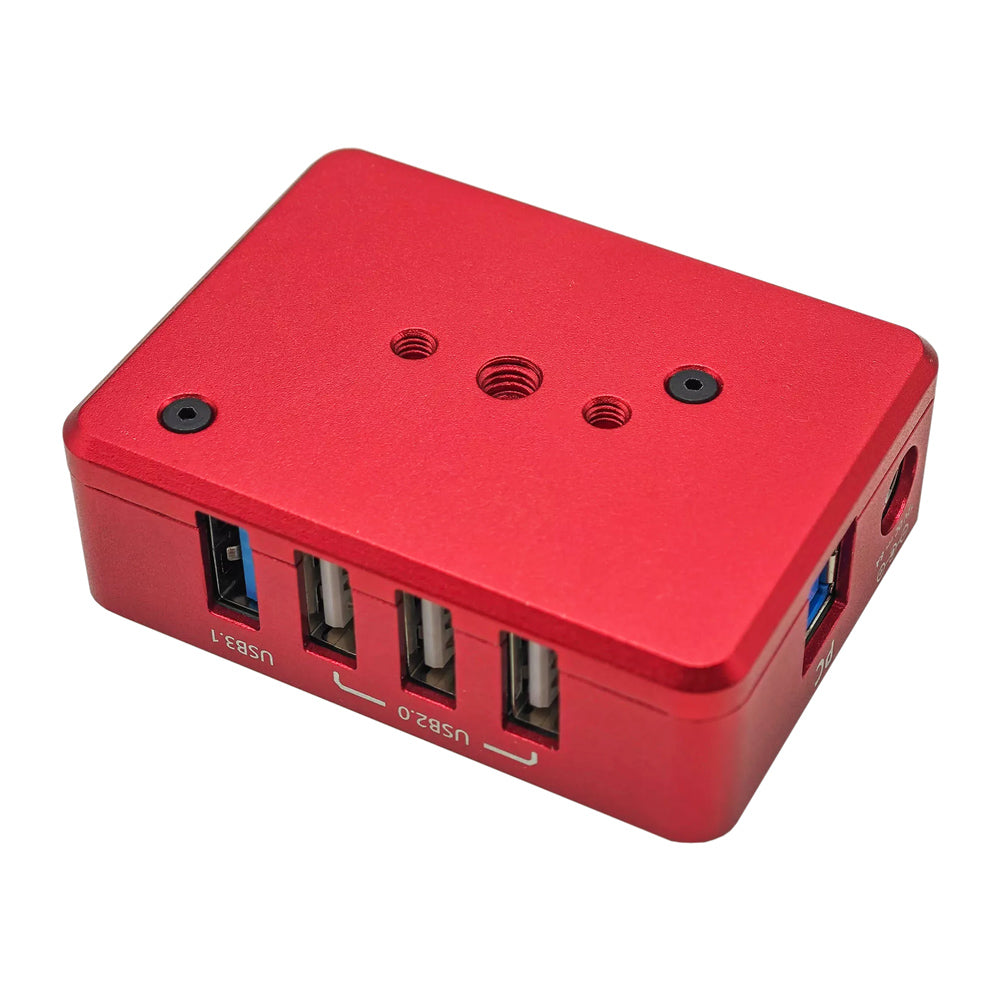

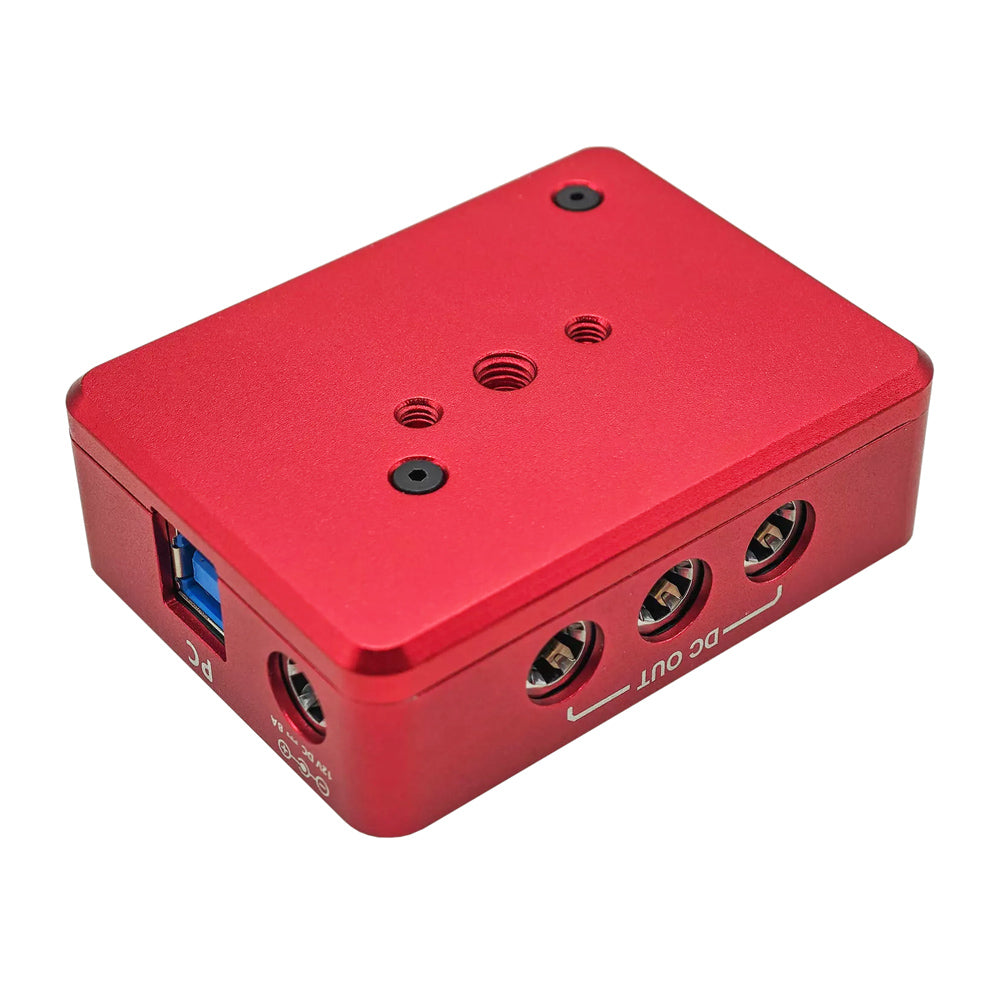

The WandererBox Lite weighs only 88 grams and is as small as a matchbox. The CNC-machined aluminium alloy body features 1 x threaded M6 and 2 x threaded M4 holes for simple installation onto dovetail bars.
Comparison between WandererBox variants
Specifications
| Power input voltage |
12V DC |
|---|---|
| Power input connector | 5.5 x 2.1 DC female (gold plated) |
| PC connectivity |
USB 3.0 type B |
| DC outputs |
5 x 5.5 x 2.1 DC female ports (gold plated), max 8A total current |
| USB ports | 1 x USB 3.1 type B port, 3 x USB 2.0 type A ports (max 3A total) |
| Mounting holes | 1 x M6, 2 x M4 |
| Dimensions | 68 x 51 x 23 mm |
| Weight |
88 g |
| SKU |
WA-LITE-BOX |
Items included
- WandererBox Lite V3
- 1 x USB 3.0 data cable 0.5m
- 1 x 5.5 x 2.1 DC to RCA adapter cable 0.1m
Downloads
 WandererBox Lite V3 downloads
|
