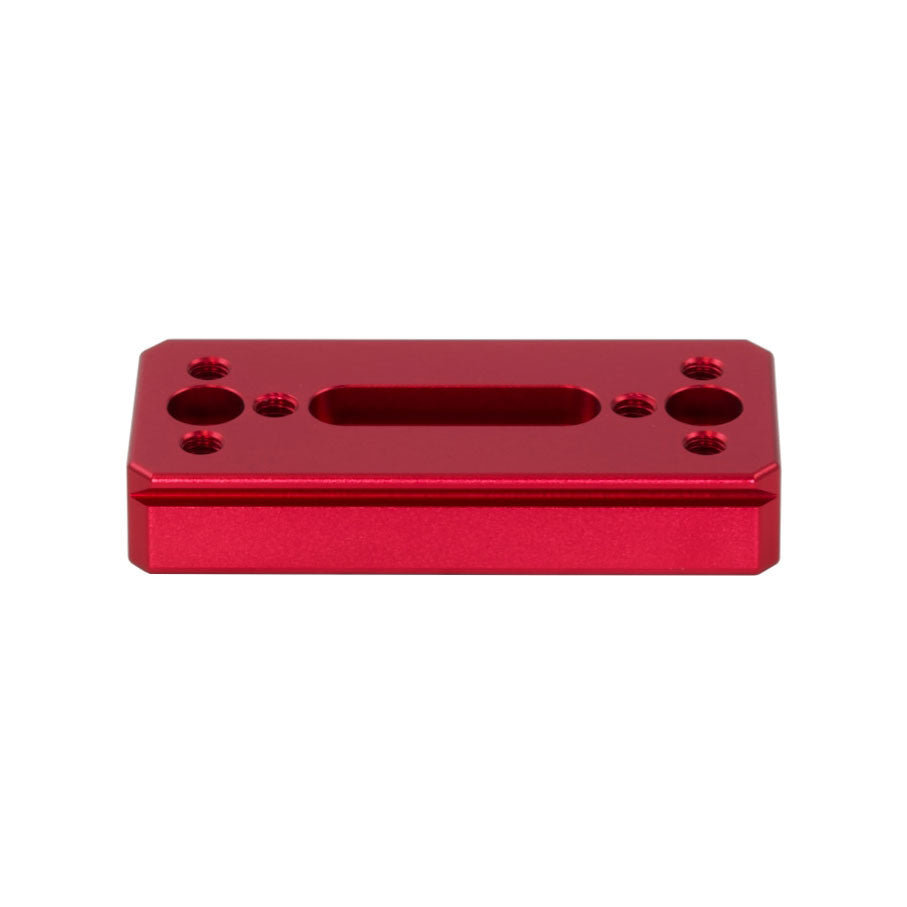

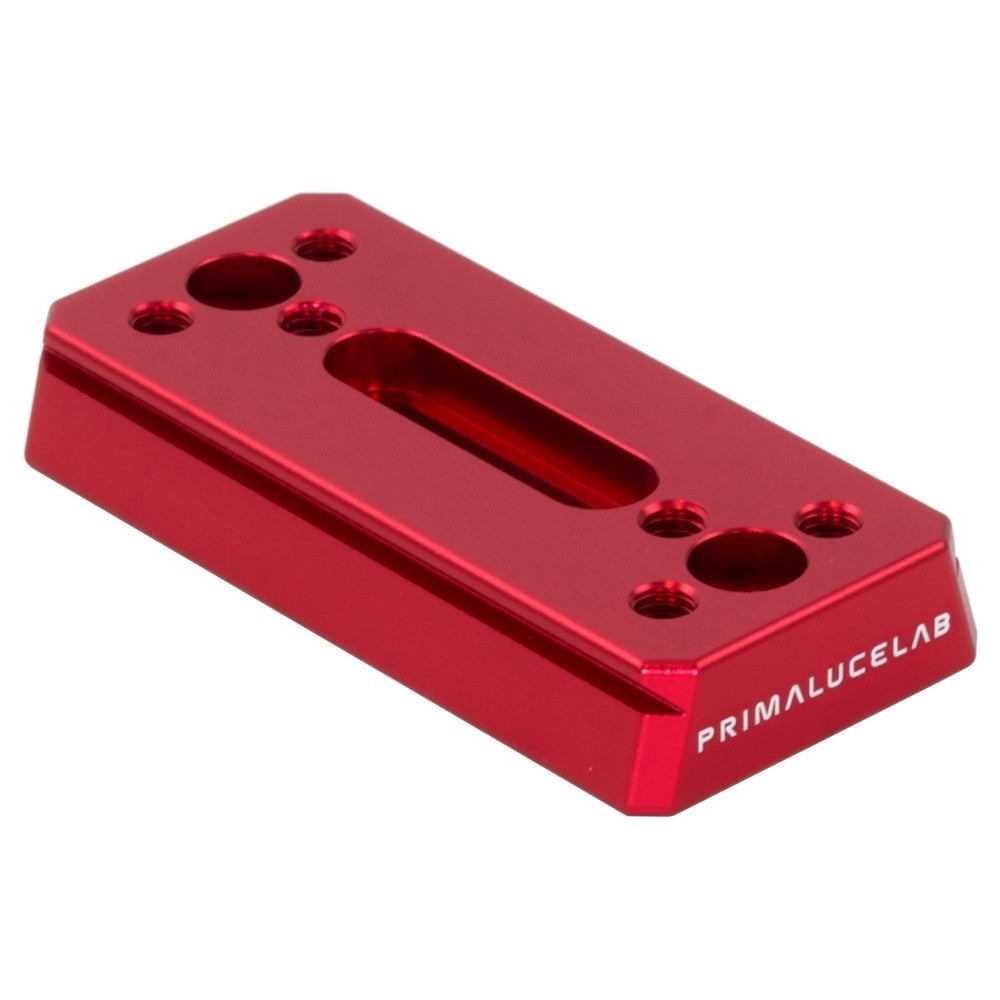

PRIMA LUCE LAB VIXEN BAR - SMALL 90mm

The Vixen bar 90mm belongs to the PLUS system (Prima Luce Universal System) that includes a large variety of telescope rings, bars, guide rings and dovetail clamps. The bar has a system of slots, drilled and threaded holes that maximize the compatibility between parts, allowing several mechanical combinations and assembly solutions. The bar is also compatible with Arca-Swiss saddles.

Each component of the PLUS system is carved from aluminium blocks that are CNC machined. Then, the aluminium is sandblasted to achieve a very smooth surface finish and is anodized (hard anodizing) to increase the hardness of the material and to protect it from oxidation.

Due to its particular design, the Vixen plate 90mm PLUS can be:

1. Positioned below telescope rings
2. Installed below a DSLR camera (connection screw not included)
3. Installed below a telescope or a camera to connect it to a photographic head with Arca Swiss dovetail clamp
4. Installed above the support telescope rings to increase the mechanical rigidity of the telescope (and it allows you to attach other accessories such as guide rings).

Vixen style dovetail plate 90mm PLUS installed below a camera: this way you can connect the camera to a photographic head (to the left) or to a mount (to the right) in the same way as a telescope.
