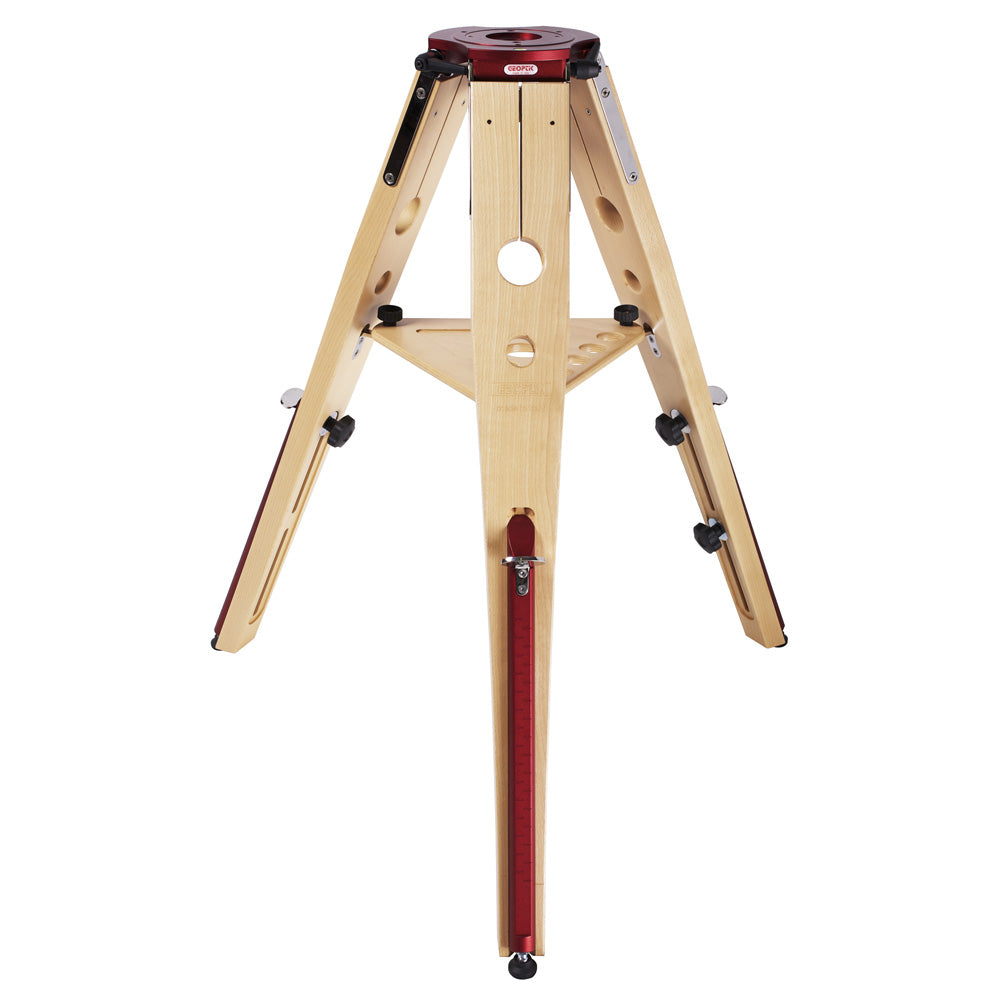

GEOPTIK HERCULES WOOD TRIPOD 95 - TALL 950/1100
Geoptik
Payload: 150 kg
10 kg
GEOPTIK HERCULES WOOD TRIPOD 95 - TALL 950/1100 - Red is backordered and will ship as soon as it is back in stock.
Geoptik Hercules wood tripods are an excellent choice for mounts such as the SkyWatcher HEQ5 (with adapter #30A230), NEQ6 Pro, AZ-EQ6 GT, EQ6-R Pro, CQ350 and EQ8 Pro, Losmandy GM8 and G11 (with adapter #30H150), iOptron iEQ30, iEQ45, CEM40, CEM60, CEM70, CEM120, GEM45 (with adapters #30H151 and #30H153), Avalon M-uno, M-zero and Linear, ZWO AM5 (with adapter #30A155) and Sharpstar Mark III (with adapter TE-PIER2000-MARK3).

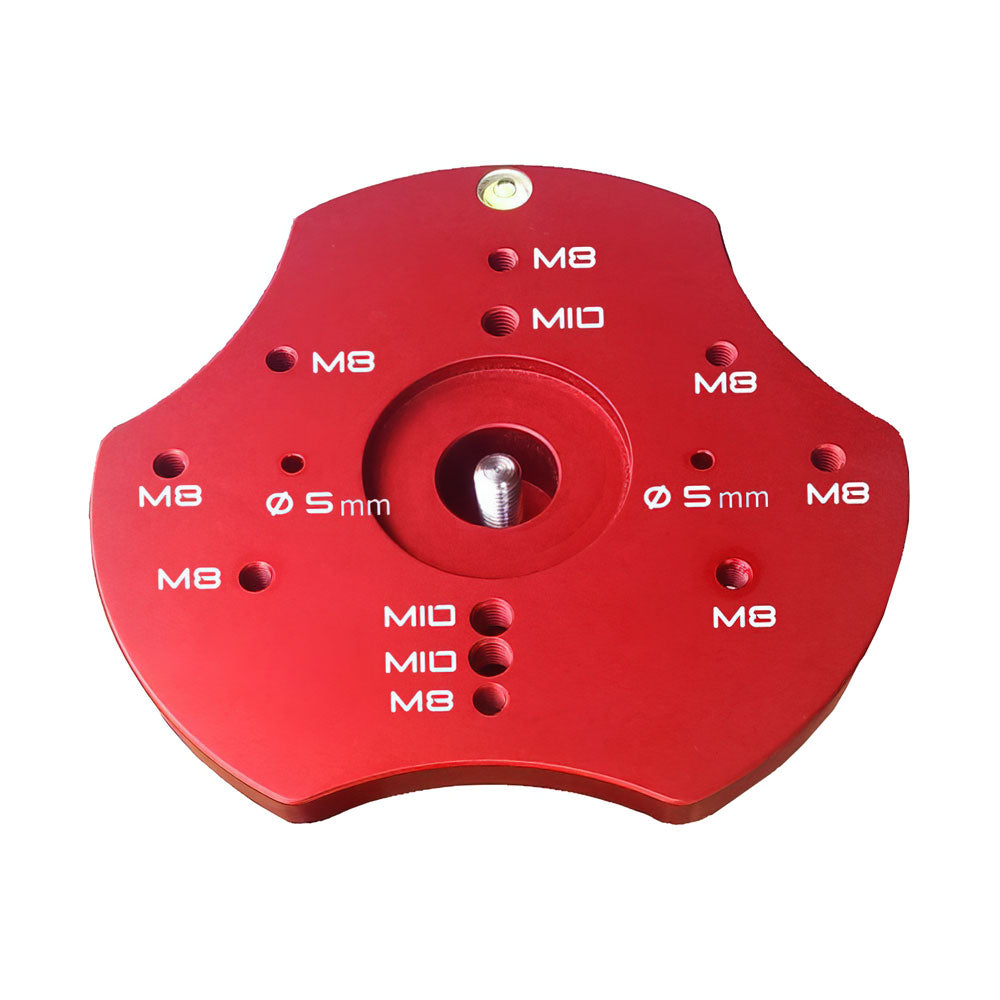

Made of the finest beech wood treated for outdoor use, the Hercules offers excellent stability, vibration damping and heavy load capability. The base plate is finely CNC machined and anodized.

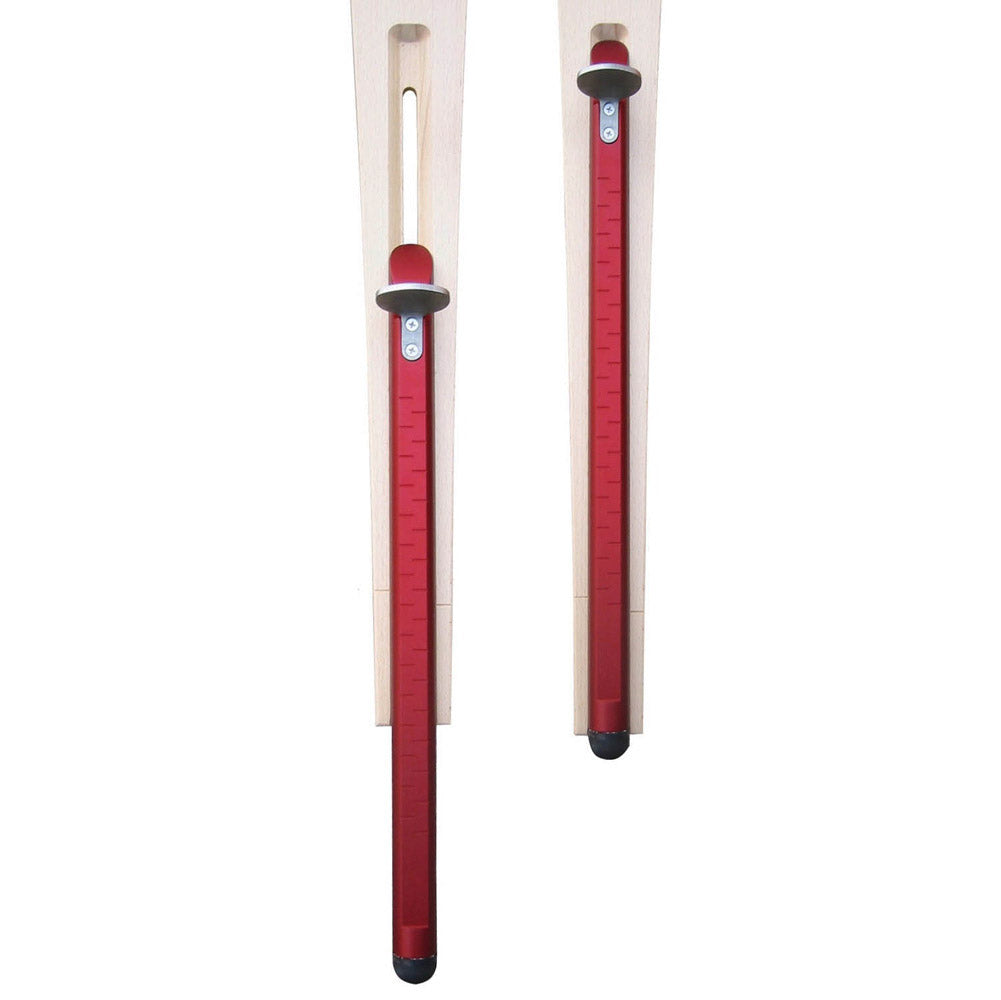

The height of the tripod can range from 950 mm to 1100 mm via aluminium extenders. These extenders are reversible, offering the possibility of a rubber or metal tip. The triangle support is laminated beech and has five holes for 1.25" eyepieces and three holes for 2" eyepieces, as well as a section to hold small parts such as screws, filters, etc. The tripod legs also feature three holes each for 1.25" & 2" eyepieces.
The Hercules can also be connected directly to the ZWO PE200 pier extension for AM-series mounts using the following parts:
- 2 x M5 socket cap head screws - 35 - 40mm thread length
- 4 x regular washers - 10mm outer diameter
- 2 x spring washers - 5mm internal diameter
- 2 x M5 hex nuts
Specifications
| Max load |
150 Kg |
|---|---|
| Height | 950 mm to 1110 mm |
| Weight |
10 Kg |
| Max distance between adjacent legs (fully extended) | 1090 mm |
| SKU | 30H100 |
Compatible Mounts
SkyWatcher:
Avalon:
10 Micron:
Losmandy:
iOptron:
