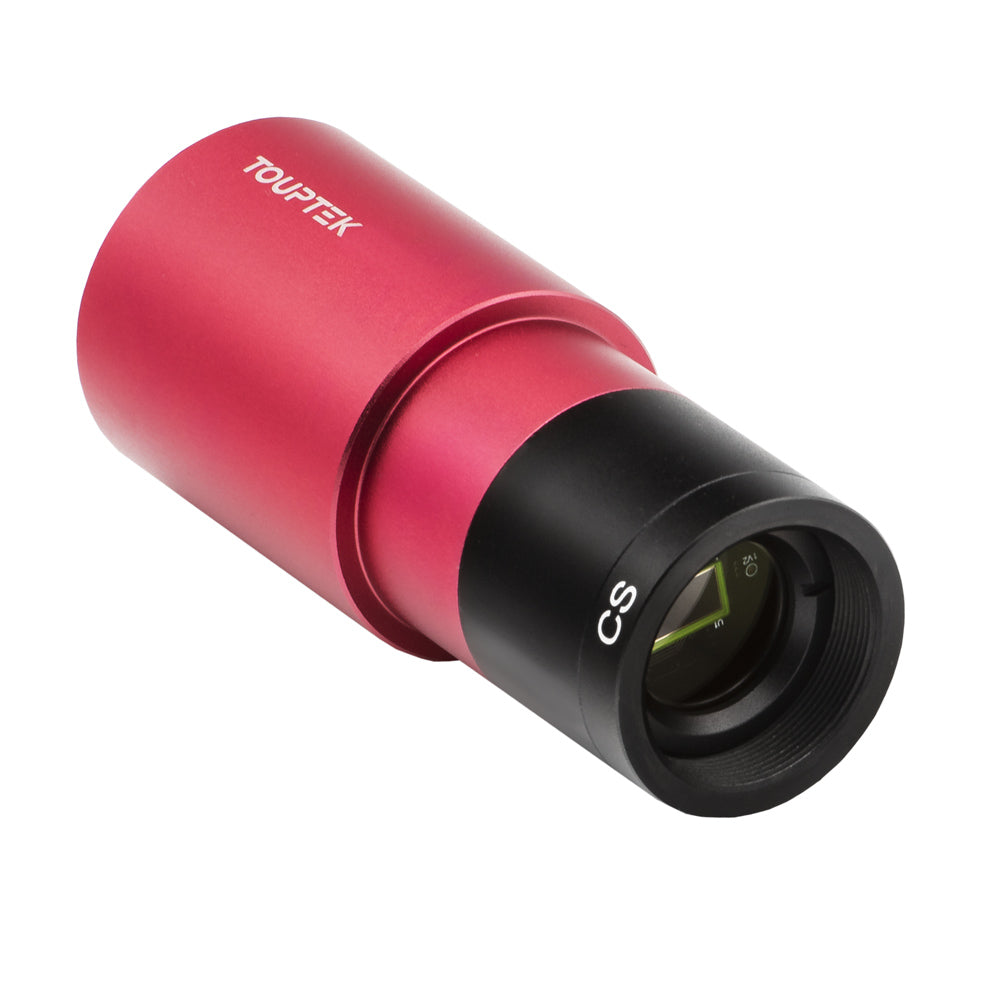

TOUPTEK G3M 462M PLANETARY CAMERA [MONO]

The ToupTek G3M462M Planetary Mono is a 1.25" barrel size planetary camera using the Sony IMX462M CMOS sensor. With a quantum efficiency of >89%, read noise as low as 0.49e- and 2.9µm pixels, the G3M462M is an excellent camera for high resolution planetary imaging with a wide range of telescopes.

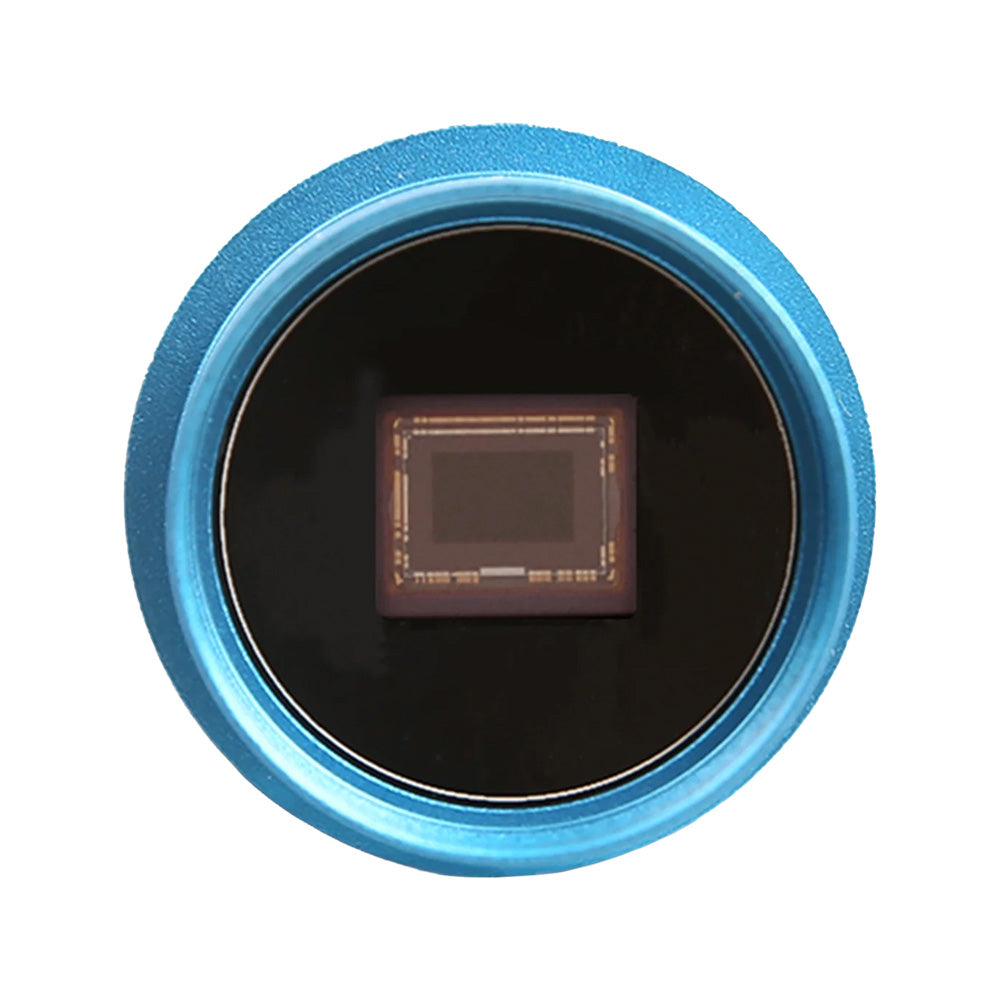

The G3M462M's back-illuminated sensor has QE up to 89% and very good NIR sensitivity, making it possible to use IR-pass filters to cut through the atmosphere and bring out finer details.

Note: in order to attach 1.25" filters to Touptek G3M series planetary cameras, you must use the included 1.25" barrel extender. The standard CS adapter does not have the necessary M28.5 filter threads.

The G3M462M is equipped with USB 3.0 connectivity as well as a traditional ST-4 autoguiding interface. Thanks to the high transmission speed of USB 3, the G3M462M can reach an incredibly fast 152FPS at full resolution. The built-in 512MB DDR3 memory ensures reliability over long sequences of high framerate video capture. Its 1.25" barrel design also makes it straightforward to use with most off-axis guiders (OAG not included).

Available in anodized Red.
