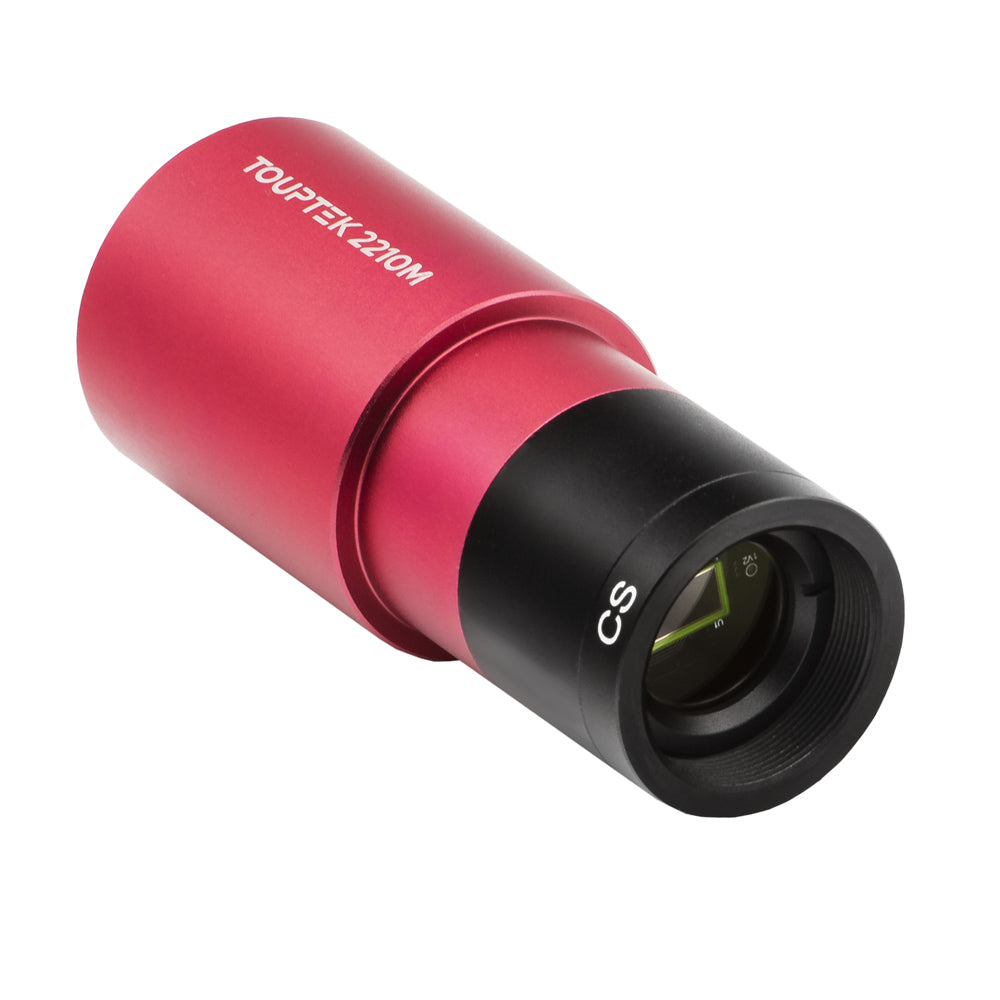

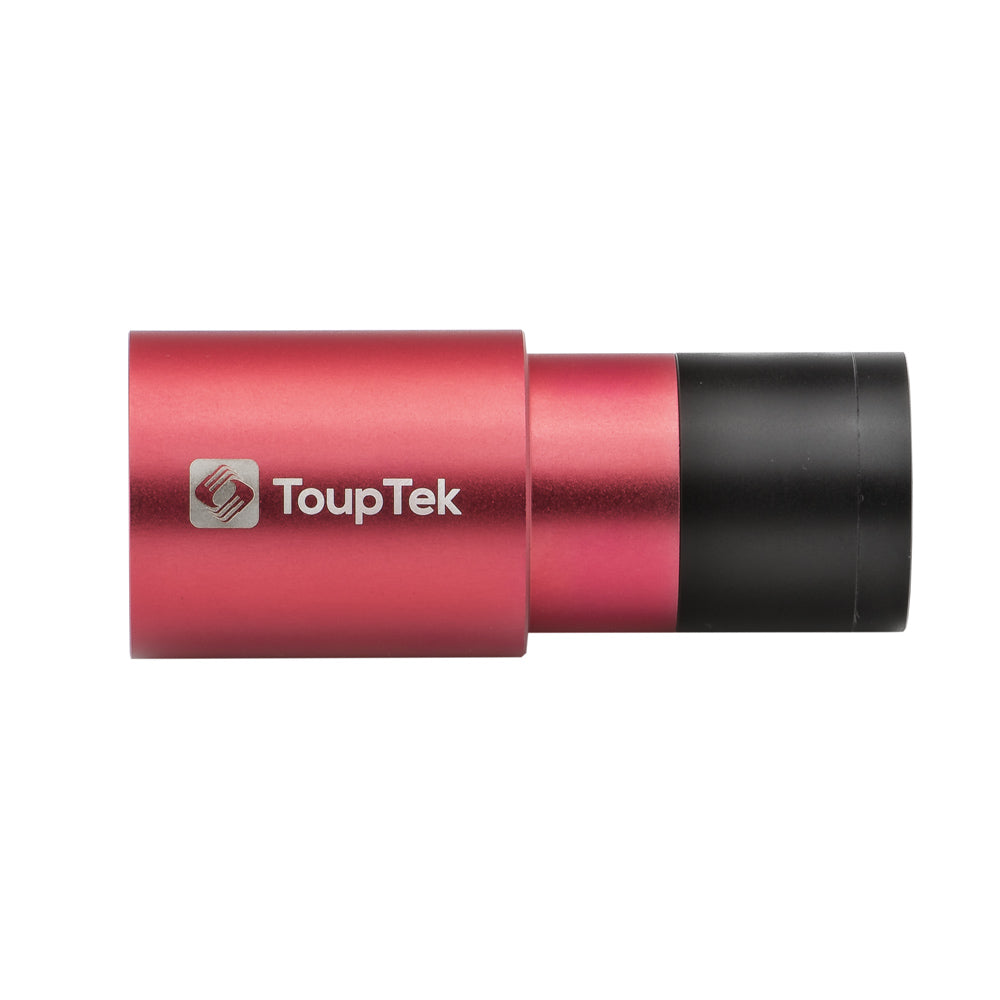

TOUPTEK G3M 2210M PLANETARY CAMERA [MONO]

The ToupTek G3M 2210M Planetary Mono is a 1.25" barrel size planetary camera using the SmartSens SC2210 CMOS sensor. With a quantum efficiency of >92%, read noise as low as 0.47e- and 4µm pixels, the G3M 2210M is an ideal camera for high resolution planetary imaging and off-axis guiding with a wide range of telescopes.

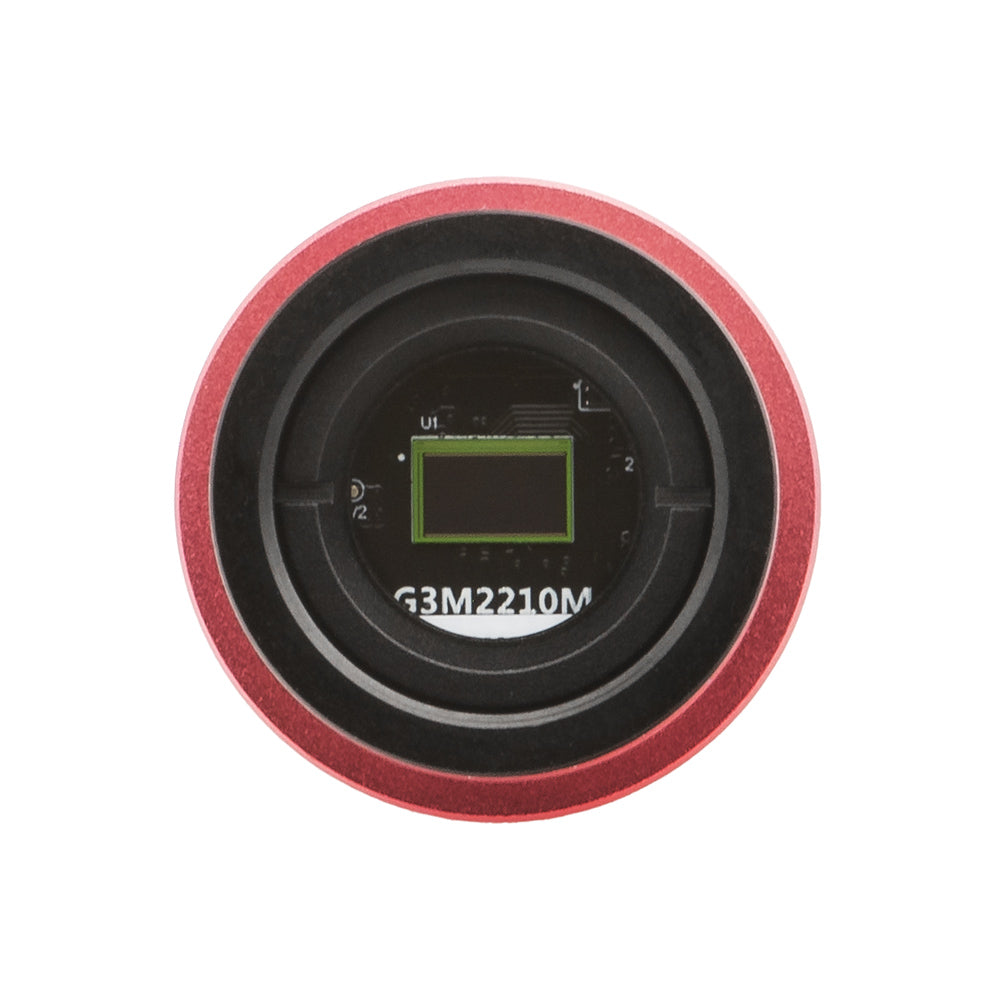

The G3M 2210M's back-illuminated sensor has QE up to 92% at 500nm and exceptional NIR sensitivity, making it possible to use IR-pass filters to cut through the atmosphere and bring out finer details.

Note: in order to attach 1.25" filters to Touptek G3M series planetary cameras, you must use the included 1.25" barrel extender. The standard CS adapter does not have the necessary M28.5 filter threads.

The G3M 2210M is equipped with USB 3.0 connectivity as well as a traditional ST-4 autoguiding interface. Thanks to the high transmission speed of USB 3, the G3M 2210C can reach an incredibly fast 150FPS at full resolution. The built-in 512MB DDR3 memory ensures reliability over long sequences of high framerate video capture. Its 1.25" barrel design also makes it straightforward to use with most off-axis guiders (OAG not included).

Available in anodized Red.
