TOUPTEK AAF ELECTRONIC AUTOFOCUSER
Touptek
TOUPTEK AAF ELECTRONIC AUTOFOCUSER is backordered and will ship as soon as it is back in stock.

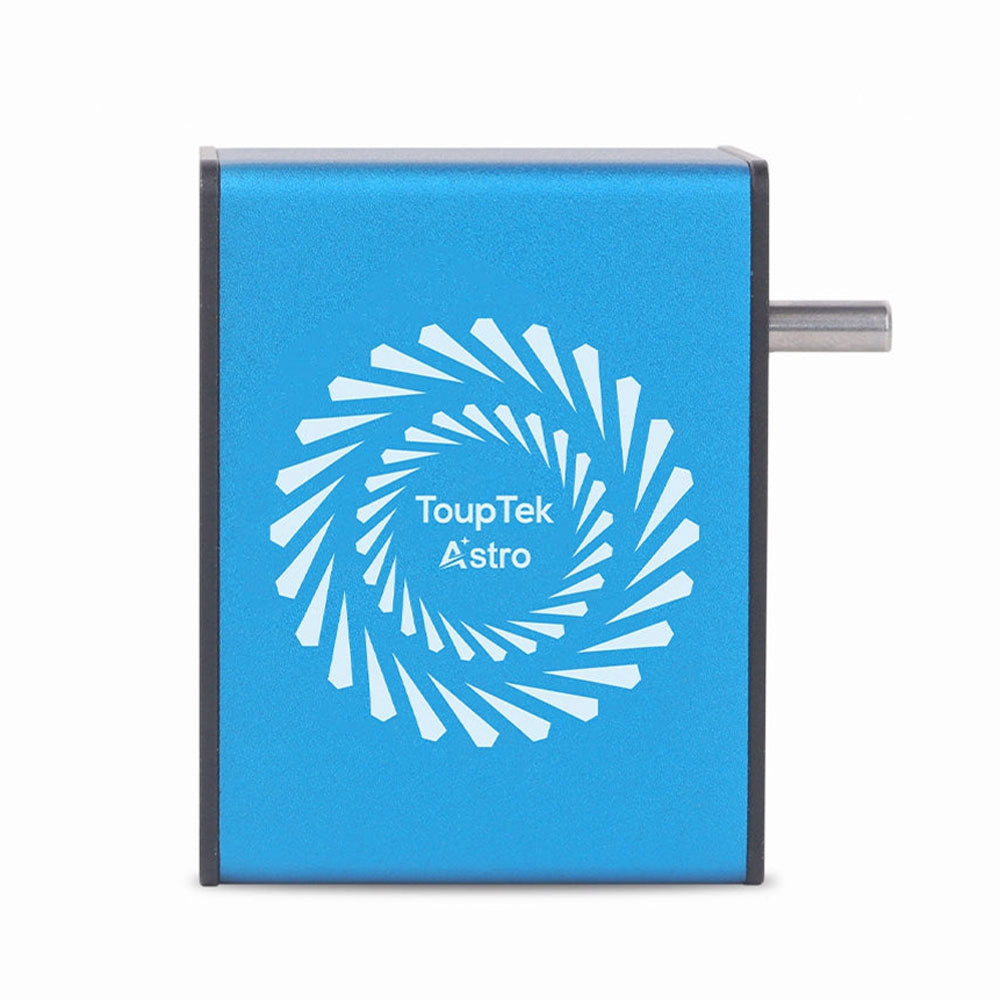

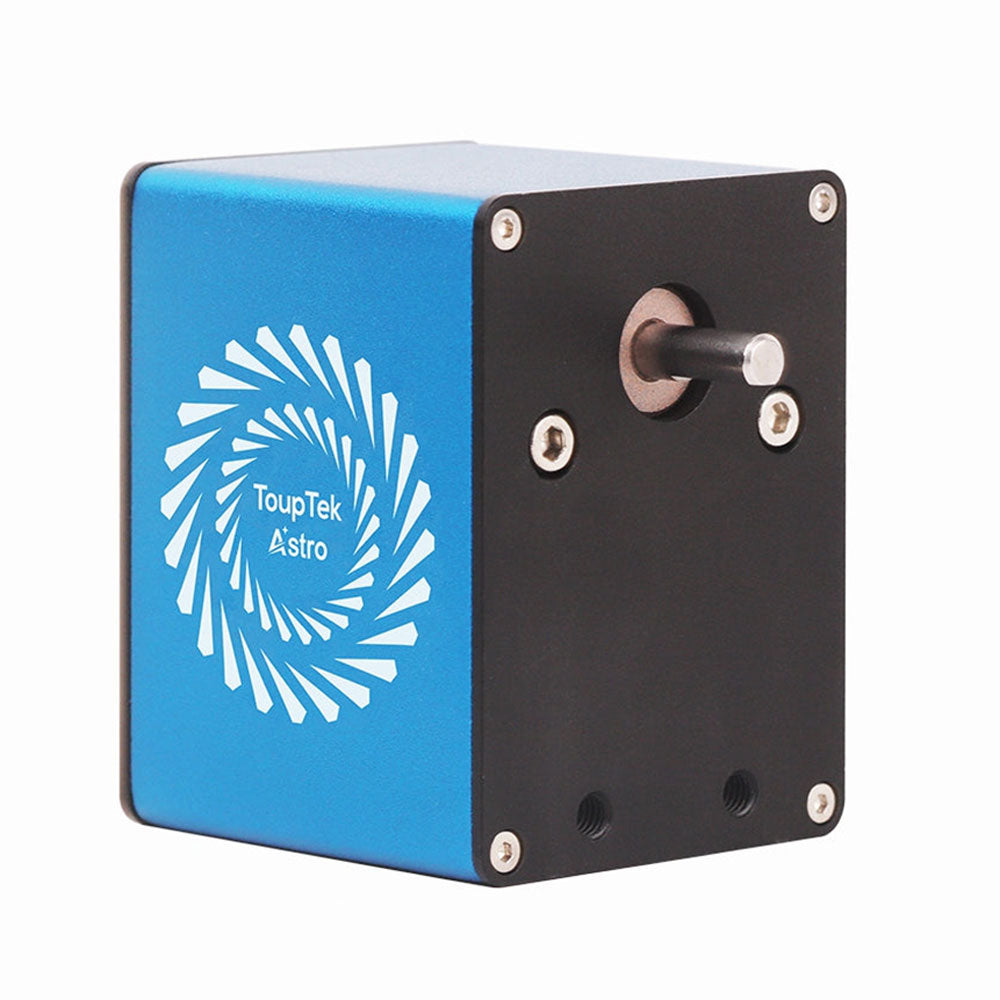

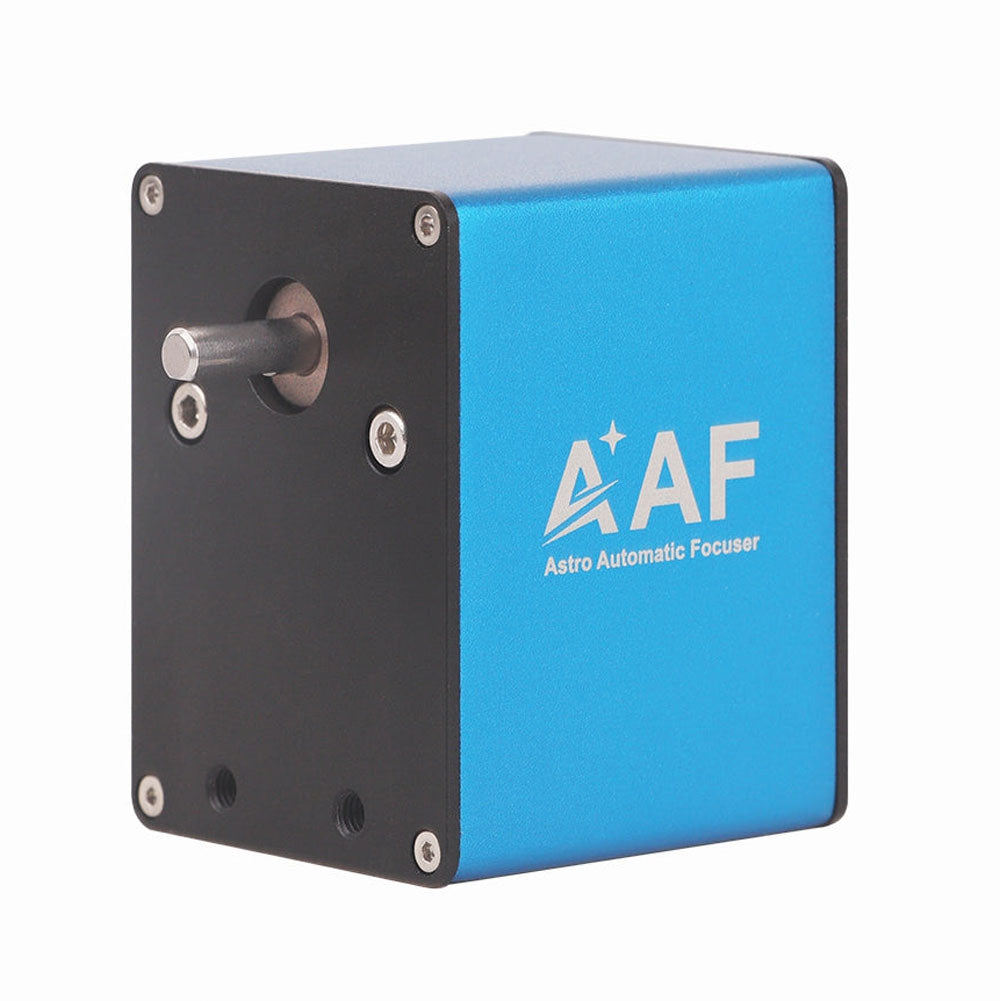

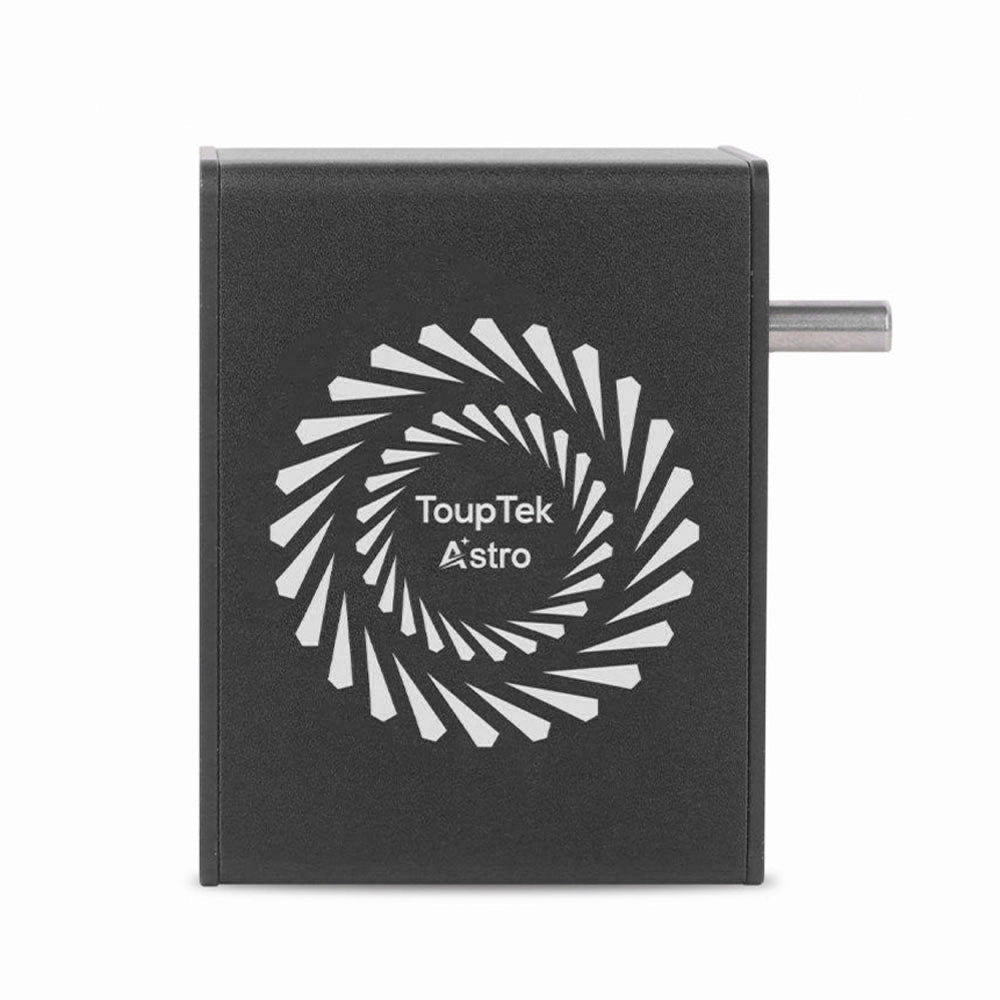

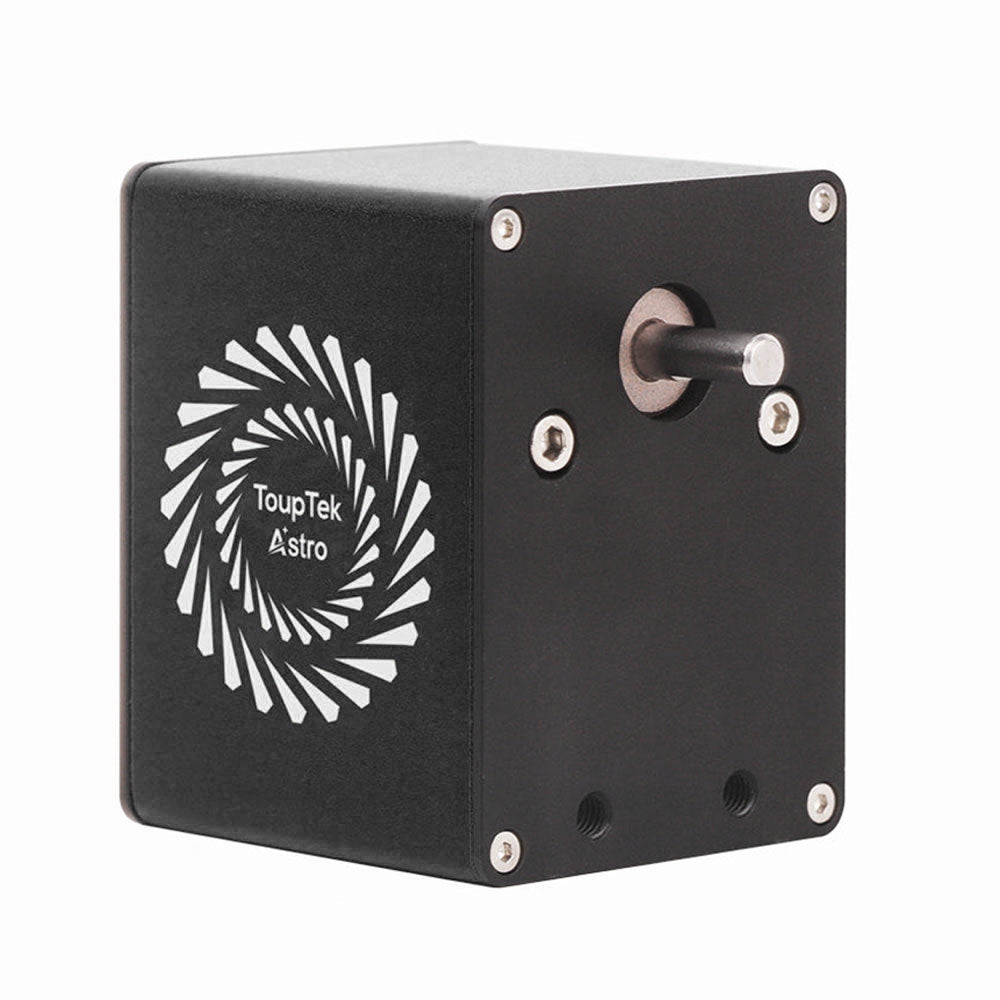

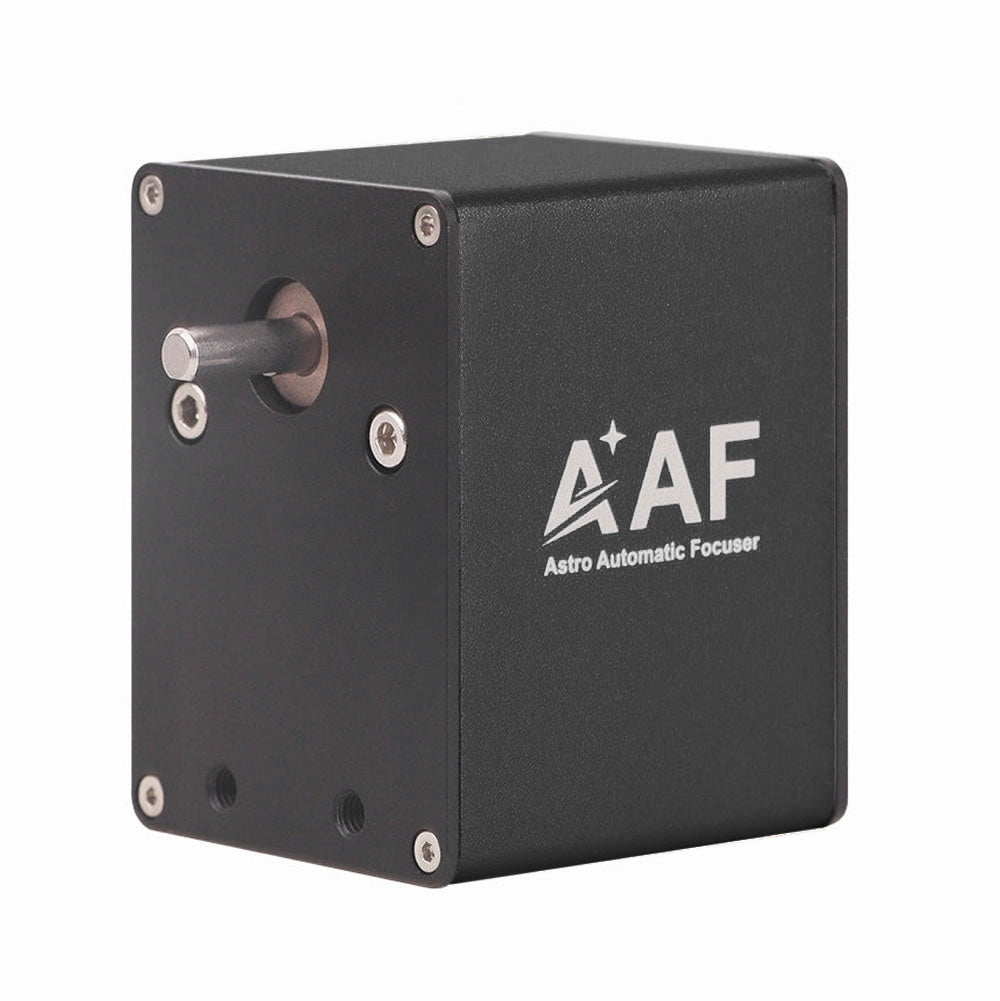

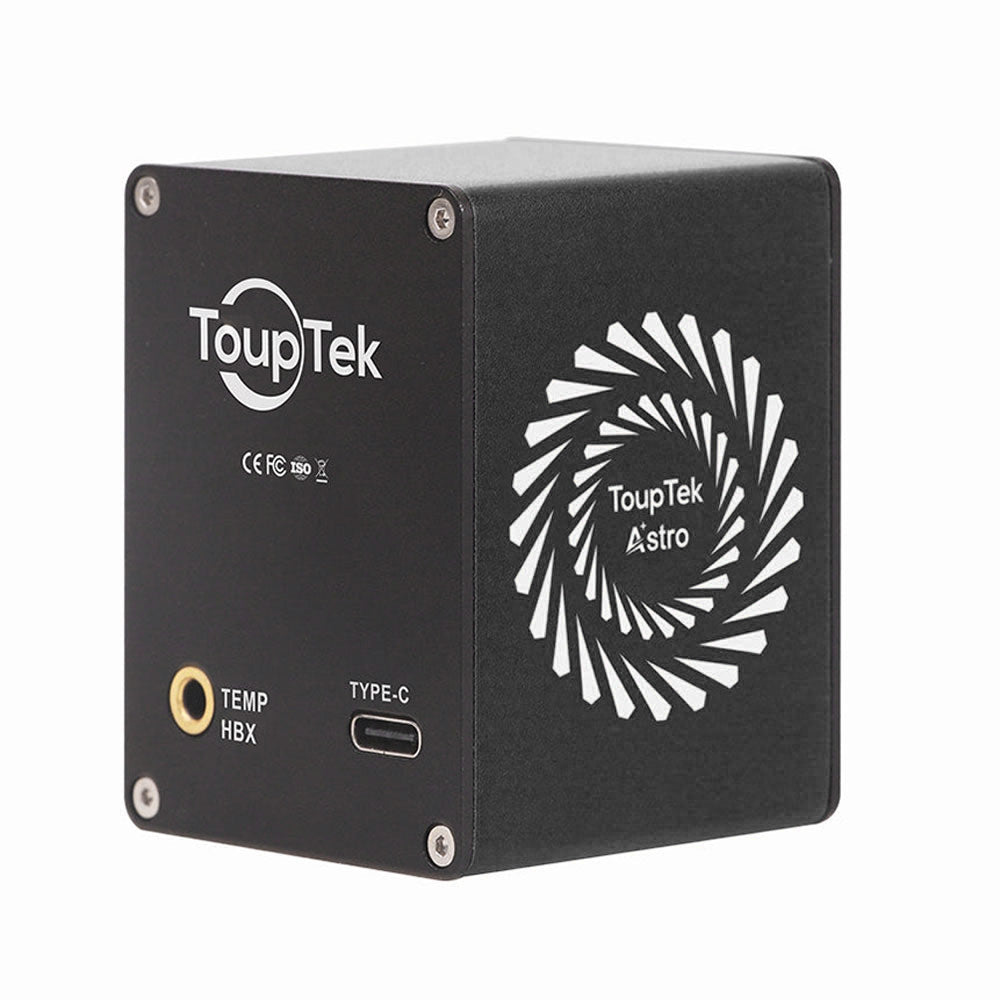

The Touptek AAF Astro Automatic Focuser is a precise, lightweight electronic focus motor compatible with many telescopes on the market.
The AAF features a universal mounting bracket and a series of flexible couplers which provide a variety of installation options for a wide range of focusers.

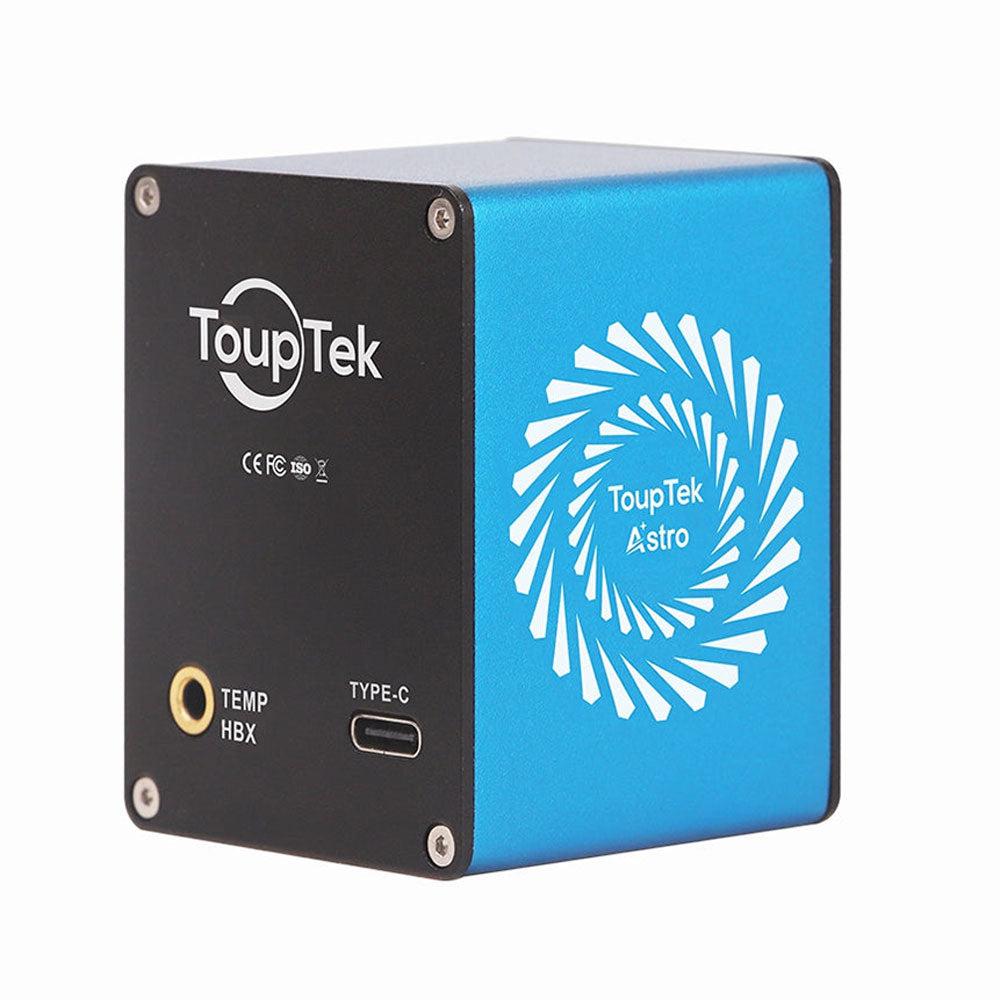

The AAF is powered over 5V USB-C and has an impressive load capacity of 5kg. An external temperature sensor is included to allow for fully automated refocusing (depending on your capture software's capabilities). A manual hand controller is also included, allowing easy operation without the need for a computer.
The AAF is compatible with a wide range of capture programs using the ASCOM and INDI drivers.
Compatible telescopes
- Sky-Watcher Evostar refractors, Newtonians
- Sharpstar and Askar (all current models)
- Sky Rover refractors
- TS Optics / AstroTech refractors
Specifications
| Dimensions |
45 x 60 x 47 mm |
|---|---|
| Motor type |
35 mm stepper motor |
| Torque |
1.2 Nm |
| Max load |
5 kg |
| Weight | TBD |
| Supported operating system | Windows, Linux |
| External temperature sensor | Included |
| Data interface | USB 2.0 Type-C |
| Power supply | 5V DC |
| SKU | TT-AAF |

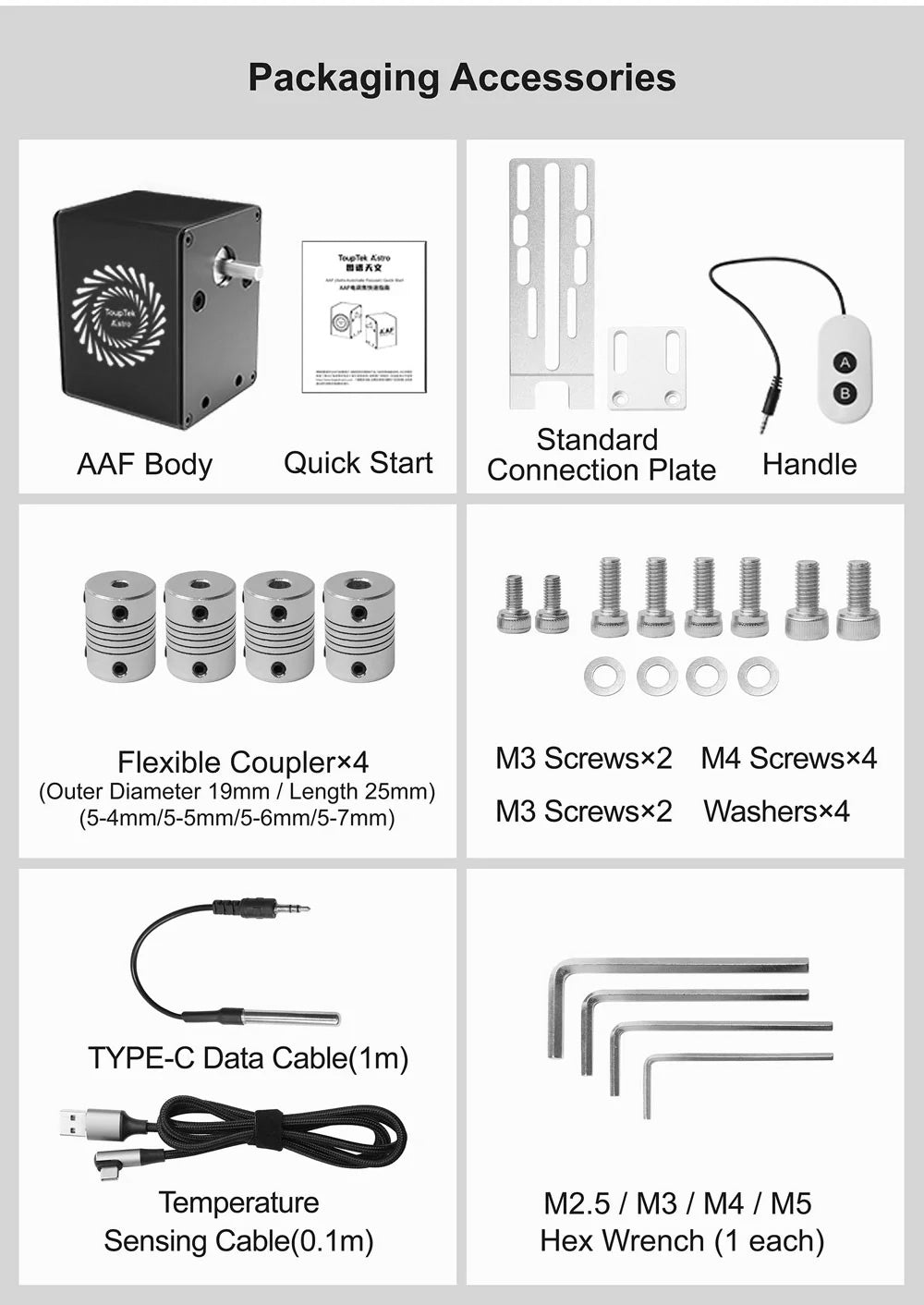

Items included
Installation
Step 1: Use the included M3 screws to assemble the standard connection plate.
Step 2: Remove the coarse focusing knob from the telescope.
Step 3: Install the appropriately-sized flexible coupler to the focuser shaft using the two grub screws. Make sure one of these screws is lined up with the flat side of the focuser shaft.
Step 4: Attach the AAF to the other end of the coupler using the two grub screws. Make sure one of these screws is lined up with the flat side of the focuser shaft.
Step 5: Install the standard connection plate to the base of the focuser using the included M4 screws. The correct holes to use will depend on the specific focuser, so please refer to the telescope's manual.
Step 6: Connect the temperature sensor and hand controller.
