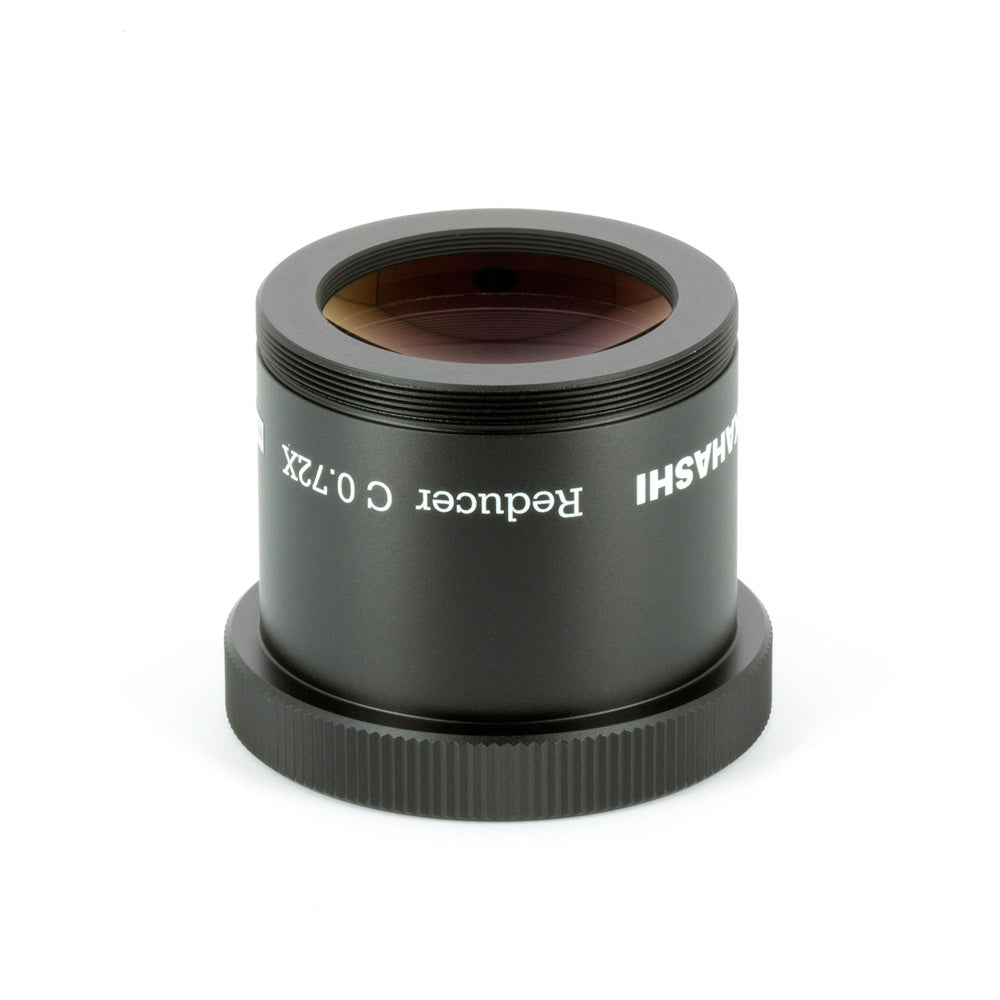

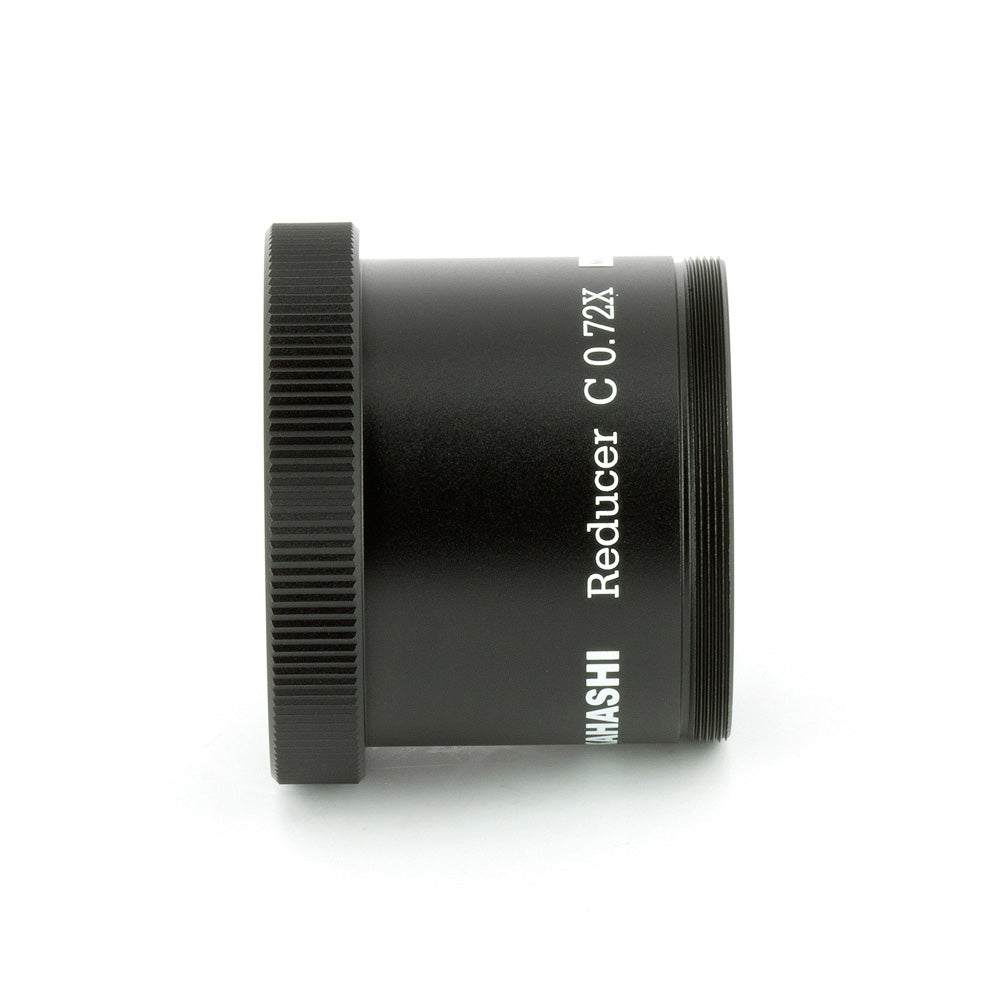

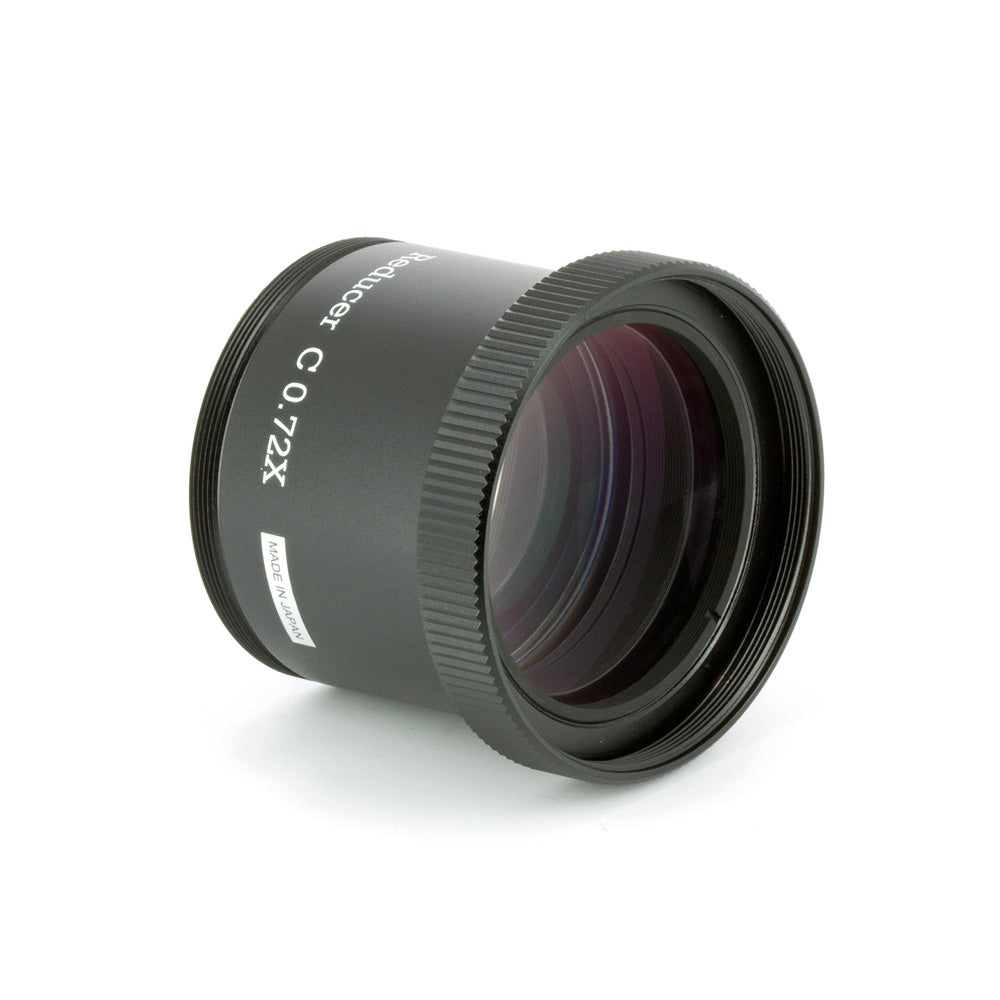

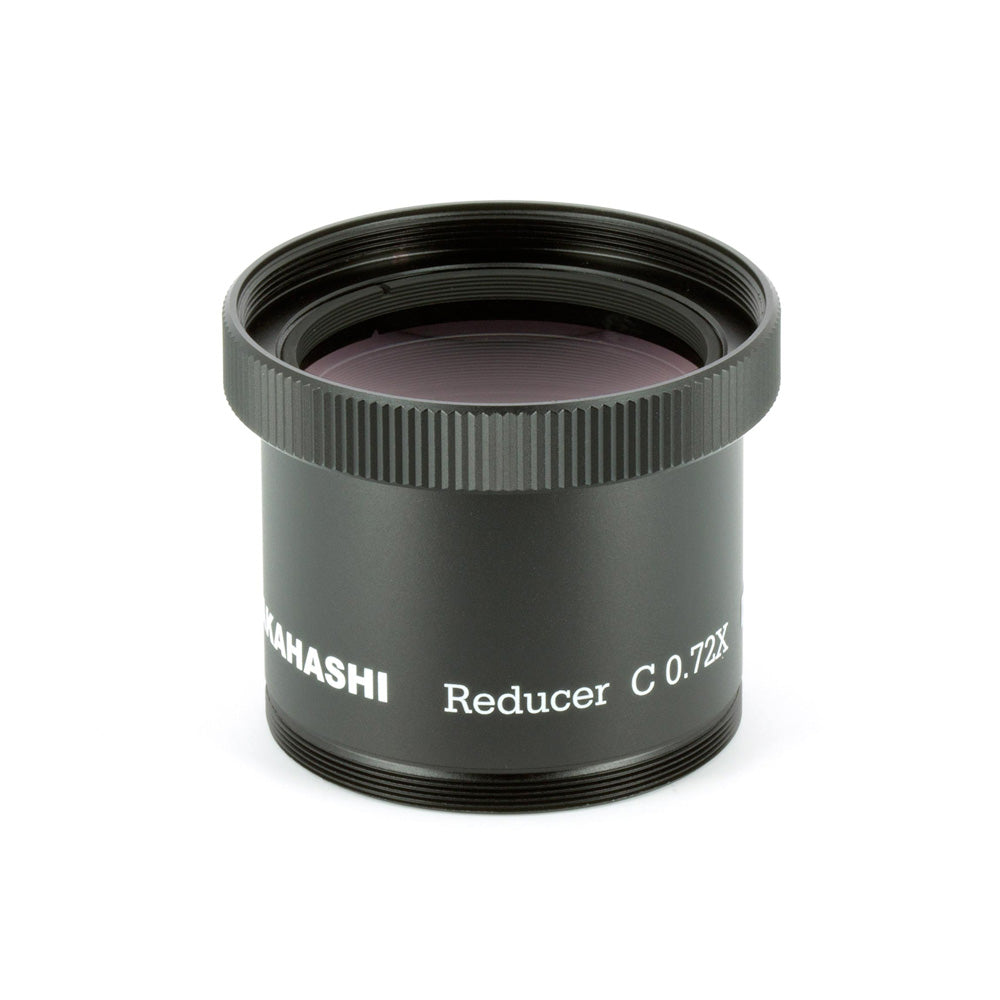

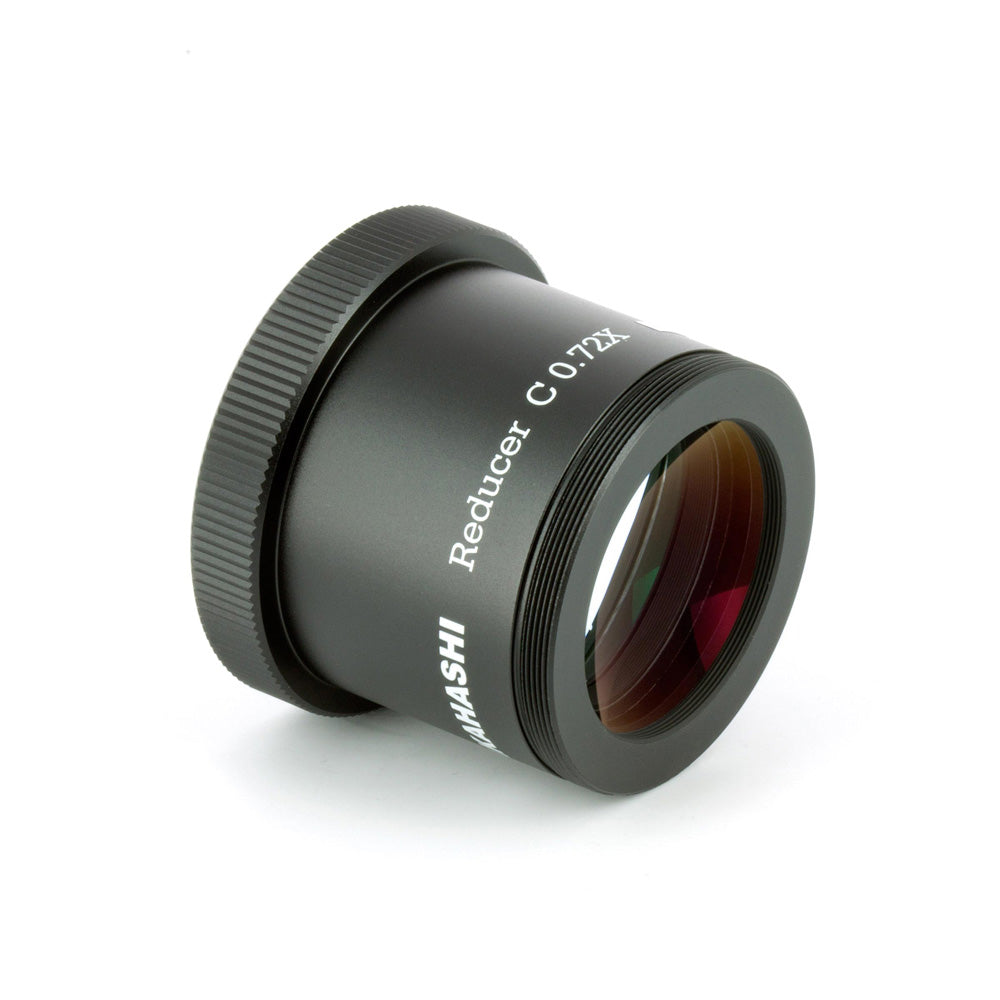

TAKAHASHI REDUCER 0.72x FOR FS-60CB

$1,199.00AUD
SKU: TK-TKA20580B

Takahashi



The Takahashi Reducer RD-C is a 0.72x focal reducer for FS-60CB, FS-60Q and older FS-60 fluorite doublet refractors. The reducer has an image circle of 40mm, making it suitable for use with APS-C sensors. The 0.72x reduction factor transforms the FS-60CB into a 255mm f/4.2 widefield astrograph.





Spot diagram of Takahashi FS-60CB with FC/FS MFL1.04x field flattener.



Specifications



Reduction factor 0.72 x
Backfocus 56.2 mm
Image circle 40 mm
Connection telescope side
 M56 x 0.75 male
Connection camera side
 M52 x 0.75 male
Total length
 48 mm
Weight
 180 g
SKU
 TK-TKA20580B



TAKAHASHI REDUCER 0.72x FOR FS-60CB.

TAKAHASHI REDUCER 0.72x FOR FS-60CB

$1,199.00AUD

Optical design

Image circle

Focal ratio

Aperture

Focal length

Optical thickness

Threads

M52 x 0.75 Male, M56 x 0.75 Male
