Astronomy Specialist

SKYWATCHER EQ6-R PRO MOUNT + BAG + POWER SUPPLY

$2,949.00AUD
SKU: SWEQ6-R+BAG+POWER

Sky-Watcher

Equatorial

Payload: 20 kg

Encoders: None

17.3 kg


Style

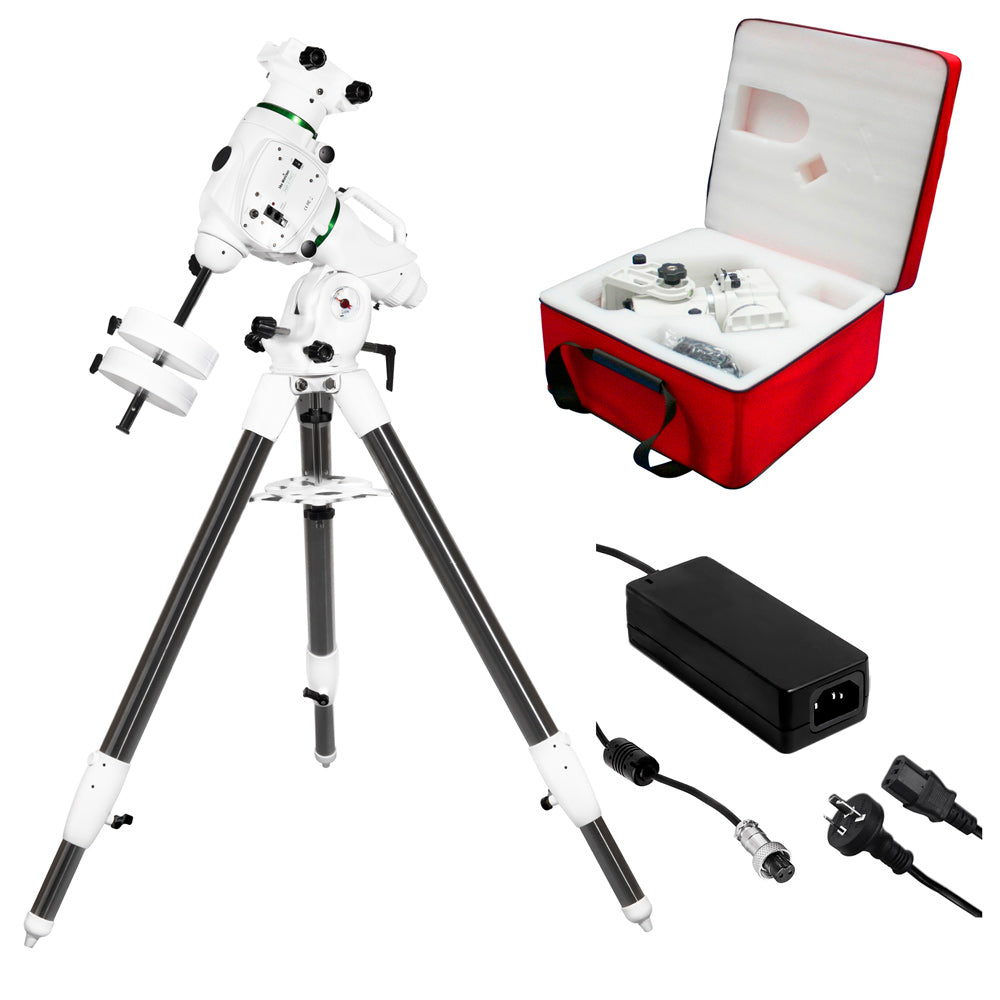

The Sky-Watcher EQ6-R Pro bundle contains the mount with tripod, high quality Geoptik pack-in bag to protect the mount while travelling and our fully Australian-certified 12V 5A power supply.



The Sky-Watcher EQ6-R Pro is the result of years of improving the EQ6 design and includes your choice of hand controller or Wi-Fi adapter instead of the hand controller. The new transmission belts between the motors and worm gears reduce the backlash for improved guiding accuracy. The integrated bubble level and the adjustable tripod legs make the levelling easy, the azimuth and altitude axis can be fine adjusted for a precise polar alignment.




The Geoptik "pack in bag" for the SkyWatcher EQ6-R offers an easy and effective solution to transport your mount.

The bag fits the original packaging foam of your EQ6-R mount. All you need to do is remove the original packaging foam from the mount cardboard box and fit it in the Geoptik pack in bag.





Testar's 12V DC 5A power supply has a screw lockable output plug and IEC AC input cable for the Saxon Az-Eq6Skywatcher AZ-EQ5, AZ-EQ6, EQ8-R, EQ8-Rh, EQ6-R Pro and the new NEQ6 mount. Fully Australian certified - unlike many generic power supplies that come with overseas products, this is fully compliant with all safety certifications!


Testar 12V 5A Camera Power Supply Certifications

Specifications



Mount type

German equatorial

Payload capacity

20 kg

Latitude range

5° to 65°

Azimuth adjustment

± 9°

Dovetail saddle

Accepts Vixen and Losmandy bars

Weight

17.3 kg (head) + 7.5 kg (tripod)

Counterweight rod

Ø 18 mm, length 242 mm + 180 mm extension

Power requirement

DC 11~16 V  4 Amp

Motors

1.8 º Hybrid Stepper Motor

Tracking rate

Sidereal rate, solar rate, lunar rate

Auto guiding speed

0.125 x, 0.25 x, 0.5 x, 0.75 x, 1 x

Pointing accuracy

Up to 5 arc-minutes (RMS)

SKU

SWEQ6-RI+BAG



Included items



  • SkyWatcher EQ6-Ri Pro mount
  • Geoptik Pack-in Bag for EQ6-R
  • Testar 12V 5A Power Supply for EQ6-R
  • Steel tripod
  • Counterweights (2 x 5 kg)
  • Counterweight extension bar
  • Polar scope (Southern and Northern Hemisphere)
  • Wi-Fi adapter OR hand controller
  • Power cord (lighter plug)
  • Mount and SynScan user manual
SKYWATCHER EQ6-Ri PRO MOUNT + BAG + POWER SUPPLY.

SKYWATCHER EQ6-R PRO MOUNT + BAG + POWER SUPPLY

From $2,849.00AUD

Style

  • Hand Controller
  • Wi-Fi Adapter

Optical design

Image circle

Focal ratio

Aperture

Focal length

Optical thickness

Threads

Cooled

Colour or Mono

Pixel size

Sensor dimensions

Resolution

Sensor diagonal

Quantum efficiency

Read noise

Fullwell capacity

Bit depth

FPS

Camera backfocus

Filter size

Filter size

Bandpass (FWHM)

Bandpass (FWHM)

Glass thickness

Mount type

Equatorial

Payload capacity

20 kg

Latitude range

5º - 65º

Dovetail saddle

Vixen/Losmandy

Slew speed

Encoders

Encoders: None

Periodic error correction

Permanent PEC

Counterweight shaft

18 mm

Azimuth adjustment range

+/− 9°

Internal diameter

Illuminated diameter

Compatible telescope external diameter

Weight

17.3 kg

Length

Width

Height
