SKYWATCHER AZ-EQ6 PRO MOUNT + BAG + POWER SUPPLY

$2,669.00AUD $3,649.00
SKU: SWAZEQ6GT+BAG+POWER

Sky-Watcher

Equatorial / Alt-Azimuth

Payload: 20 kg

Encoders: None

15.4 kg

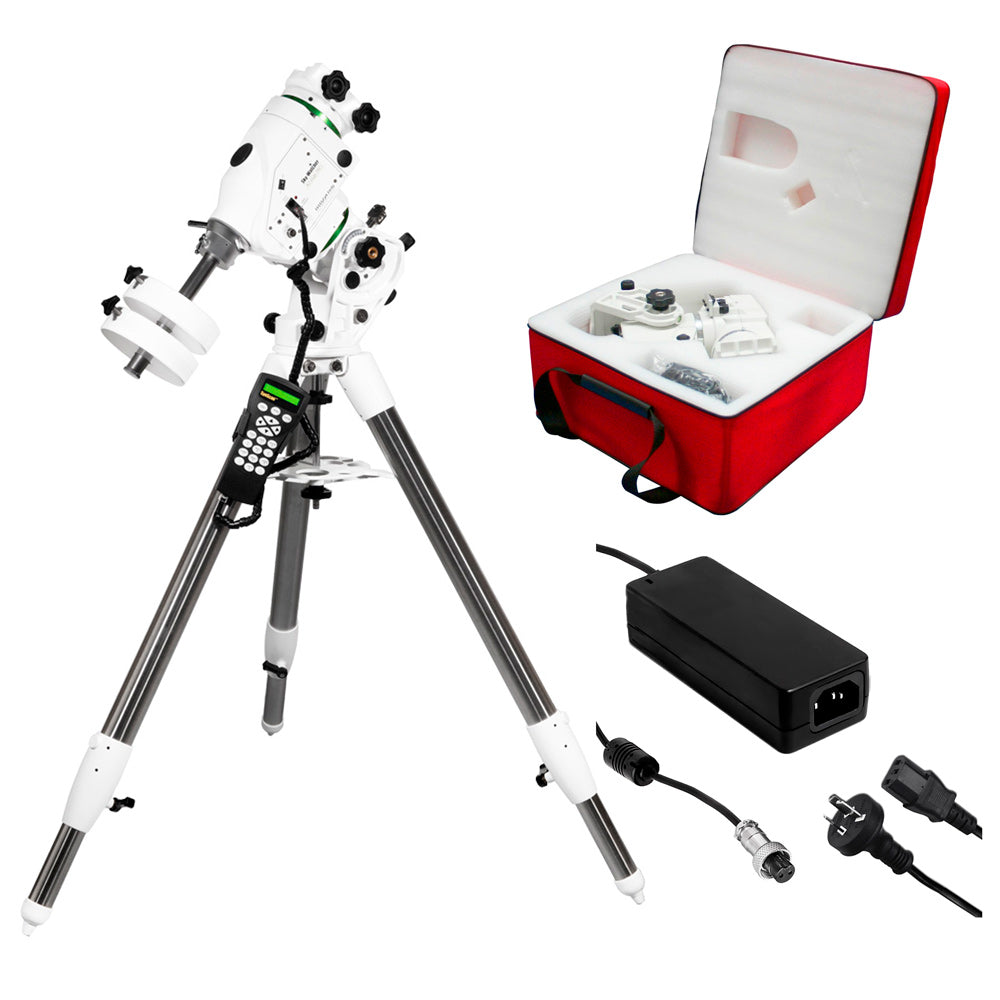

The Sky-Watcher AZ-EQ6 Pro bundle contains the mount with tripod, high quality Geoptik pack-in bag to protect the mount while travelling and our fully Australian-certified 12V 5A power supply.

The Sky-Watcher AZ-EQ6 Pro Go-To is designed for the professional astrophotographer who wants a solid and reliable mount with a payload of up to 20kg. It combines the advantages of the equatorial mount with the simplicity of the alt-azimuth system.

In fact, the AZ-EQ6 is a hybrid mount usable in both these configurations. The equatorial mode is ideal for astrophotography while the alt-azimuth configuration is more practical for observation as polar alignment is not required.





The Geoptik "pack in bag" for the SkyWatcher and Saxon AZ-EQ6 offers an easy and effective solution to transport your mount.

The bag fits the original packaging foam of your AZ-EQ6 mount. All you need to do is remove the original packaging foam from the mount cardboard box and fit it in the Geoptik pack in bag.





Testar's 12V DC 5A power supply has a screw lockable output plug and IEC AC input cable for the Saxon Az-Eq6Skywatcher AZ-EQ5, AZ-EQ6, EQ8-R, EQ8-Rh, EQ6-R Pro and the new NEQ6 mount. Fully Australian certified - unlike many generic power supplies that come with overseas products, this is fully compliant with all safety certifications!


Testar 12V 5A Camera Power Supply Certifications

Specifications



Mount type

German equatorial / Alt-azimuth

Payload capacity

20 kg

Latitude range

10° to 75°

Azimuth adjustment

± 9°

Dovetail saddle

Accepts Vixen and Losmandy bars

Weight

15.4 kg (head) + 7.5 kg (tripod)

Counterweight rod

Ø 25 mm, length 202 mm + 150 mm extension

Power requirement

DC 12~16 V  4 Amp

Motors

1.8 º Hybrid Stepper Motor

Tracking rate

Sidereal rate, solar rate, lunar rate

Auto guiding speed

0.125 x, 0.25 x, 0.5 x, 0.75 x, 1 x

Pointing accuracy

Up to 5 arc-minutes (RMS)

SKU

SWAZEQ6GT



Included items



  • SkyWatcher AZ-EQ6 mount
  • Geoptik Pack-in Bag for AZ-EQ6
  • Testar 12V 5A Power Supply for AZ-EQ6
  • Steel tripod
  • Counterweights (2 x 5 kg)
  • Counterweight extension bar
  • Second telescope saddle (Vixen and Losmandy style)
  • Polar scope (Southern and Northern Hemisphere)
  • SynScan hand controller with cable (RJ45 to RJ45)
  • Power cord (lighter plug)
  • Mount and SynScan user manual
SKYWATCHER AZ-EQ6 PRO MOUNT + BAG + POWER SUPPLY.
