SHARPSTAR MARK III HARMONIC MOUNT
Sharpstar
Equatorial / Alt-Azimuth
Payload: 22 kg without counterweight, 28 kg with counterweight
Encoders: None
7.65 kg
SHARPSTAR MARK III HARMONIC MOUNT is backordered and will ship as soon as it is back in stock.

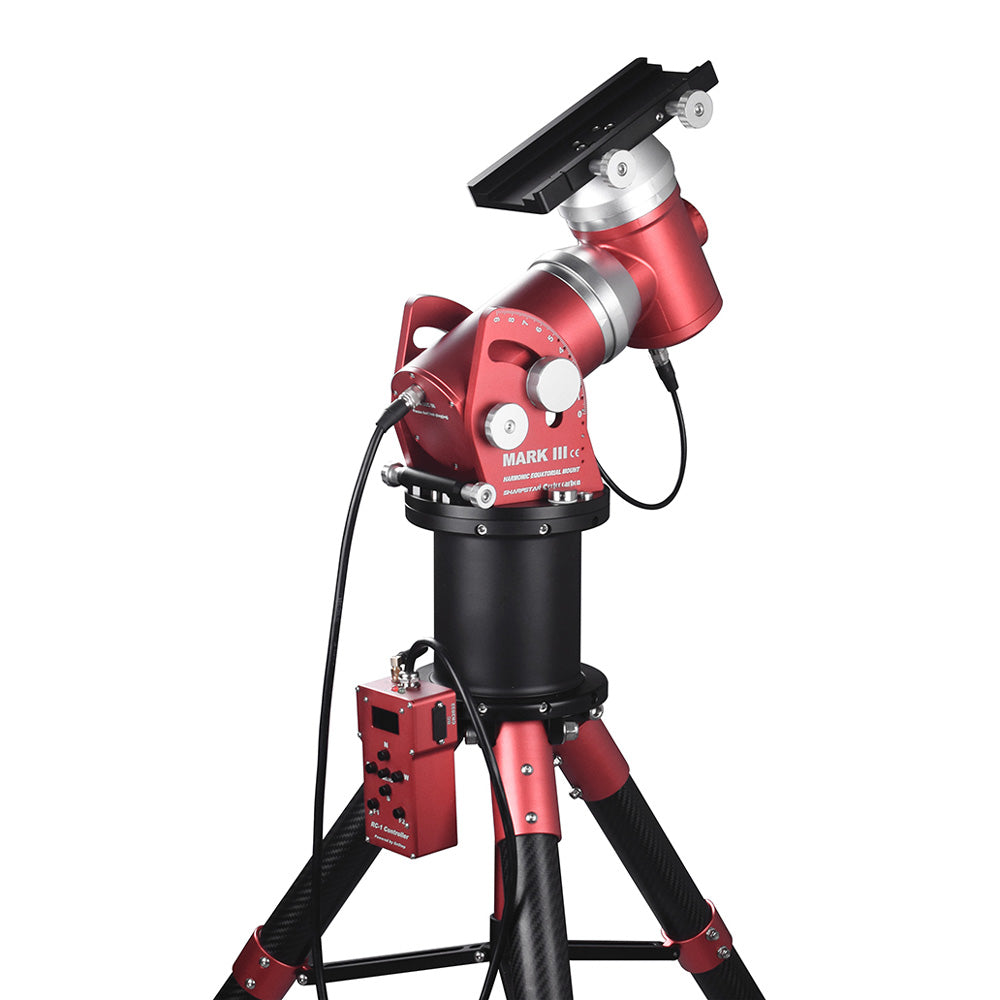

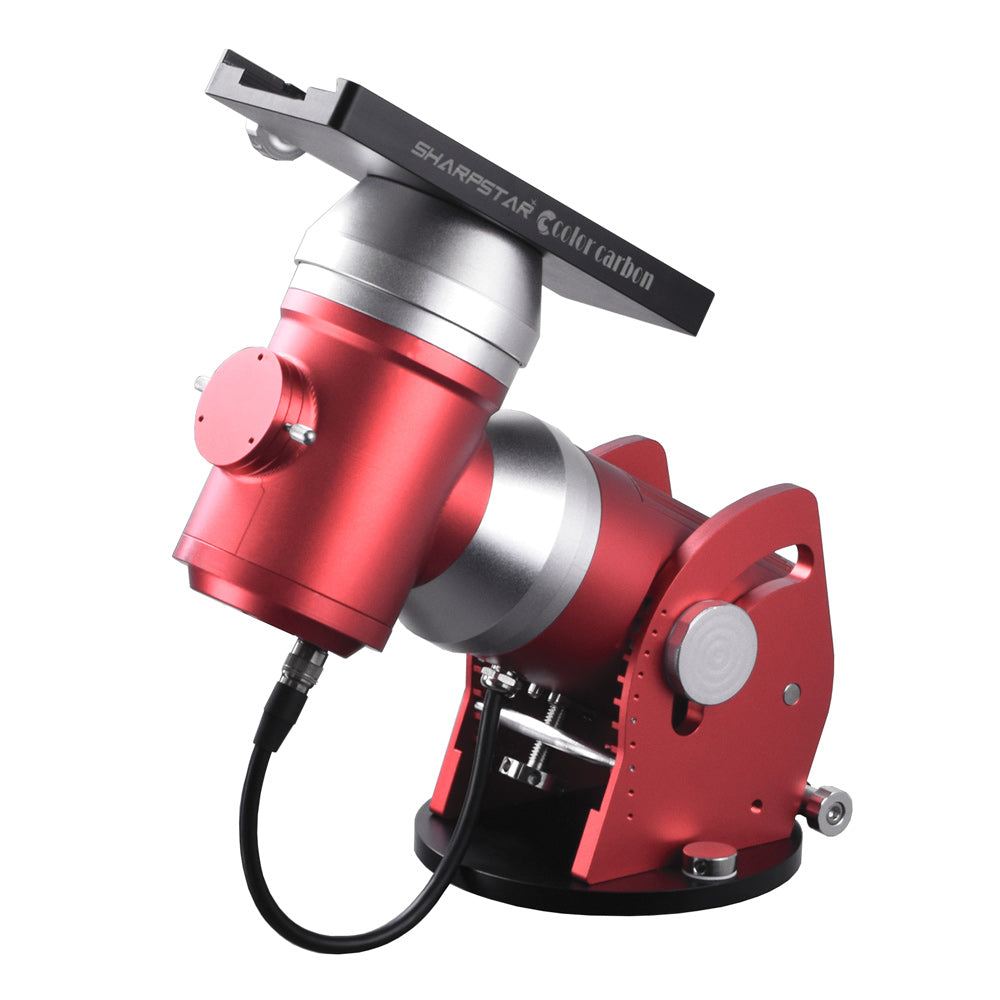

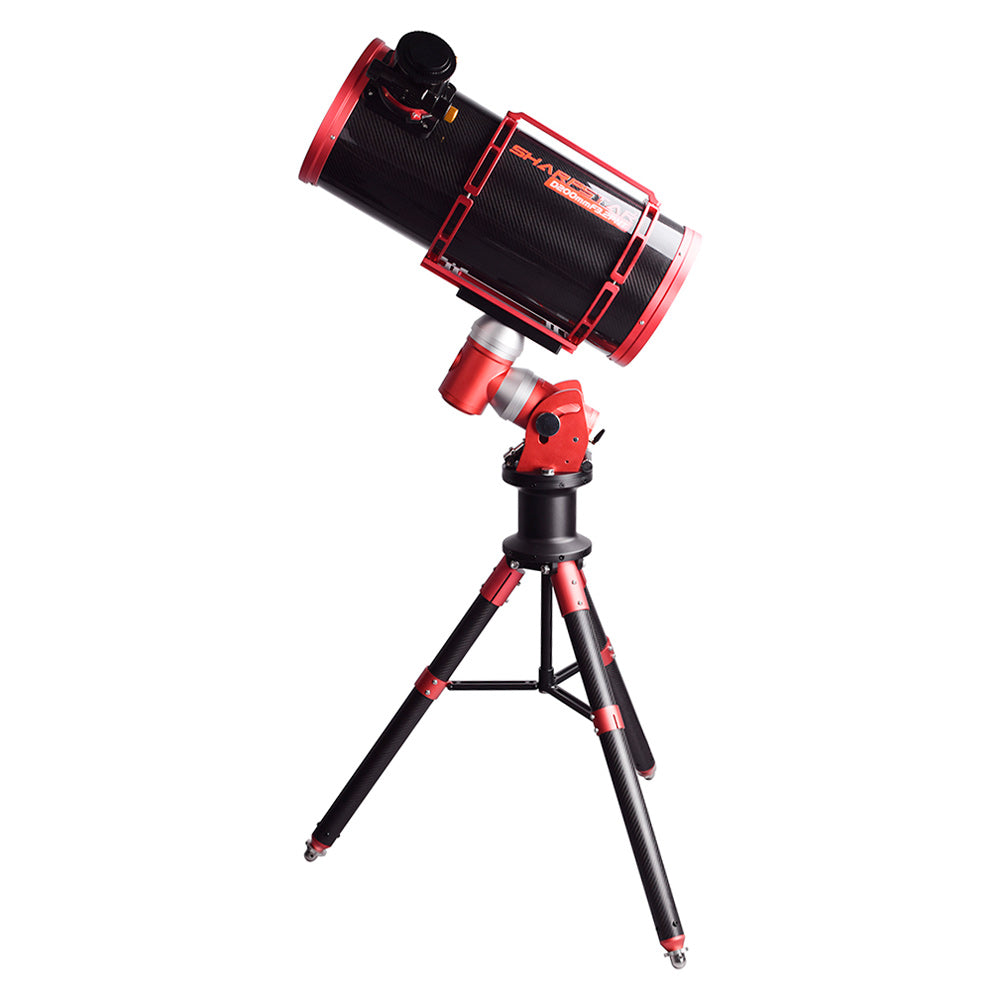

The Sharpstar Mark III is a new strain wave-geared German equatorial/Alt-Azimuth mount for serious astrophotography.
Lightweight and portable at only 7.95kg, the Mark III has an impressive payload of 18kg without counterweight or 26kg with counterweight. The mount is fully CNC-machined and anodized for strength and stability.
The Mark III can be controlled via Wi-Fi or a wired USB connection via ASCOM/INDI, as well as with the included CNC-machined hand controller. Go-to functionality is powered by the open-source OnStep control software.
Note: In order to connect the Mark III to the ASIAIR, you must choose "OnStep beta" or "OnStep Electronics" in the mount selection menu.
The mount is equipped with an electromagnetic brake on the RA axis in case of sudden power failure, which will prevent your telescope from being damaged.
Using the Testar Tripod Adapter for SharpStar Mark III mount you can adapt this mount to the Hercules tripods, the iOptron Tri-Pier as well as the Testar Pier 2000.
The mount includes a mounting bracket natively compatible with the iOptron iPolar electronic polar alignment scope.
Note: mount does not include carbon fibre tripod.
Specifications
| Mount type |
Alt-Az/Equatorial |
|---|---|
| Max payload | ≤22 kg without counterweight, ≤28 kg with counterweight (with telescope's central axis 150 mm from mounting surface.) |
| Mount weight |
7.65 kg |
| Drive | 20 mm 1:100 Strain wave gear |
| Reduction/gear ratio |
1000 : 1 |
| Periodic error (PE) | <±20" |
| PE cycle time | 432 seconds |
| Latitude adjustment range | 15º ~ 90º |
| Azimuth adjustment range | ± 4º |
| Dovetail saddle | 200 mm Losmandy & Vixen |
| Motors |
42 mm stepper motors with automatic braking system |
| Max slew speed | 4º/S (default 2º/S) |
| Guide port | Via USB |
| Communication interface | USB / Wifi, ASCOM, INDI |
| Sensors | Home position |
| Operating Temperature | -25º - 40º C |
| Power failure protection | Yes |
| SKU | SS-MARKIII-MOUNT |
Items included
- 1: Hand controller
- 2: 12V to 24V DC boost converter
- 3: Tools/screws for fixing mount on tripod
- 4: Mount cables
- 5: Counterweight bar
- 6: Mount body
- 7: Counterweight
- Testar 240V AC - 24V DC power supply
