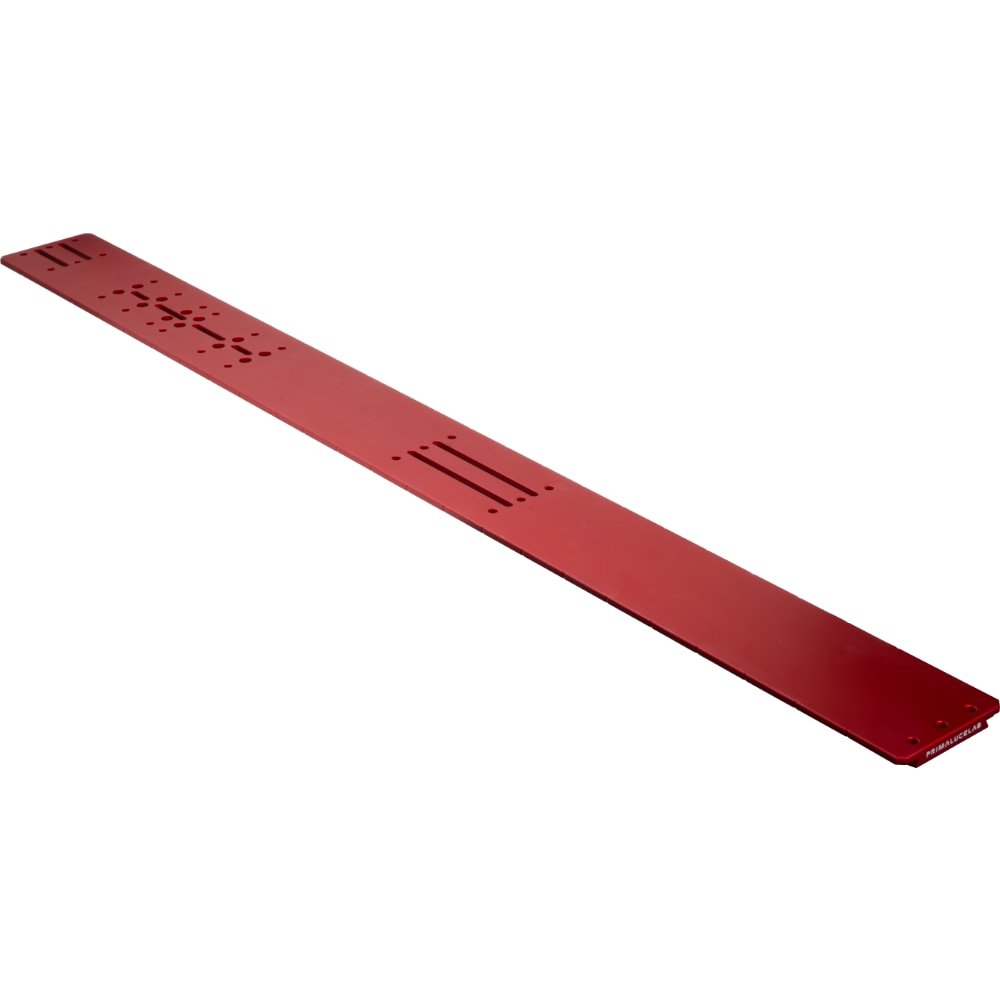

PRIMA LUCE LAB LOSMANDY BAR 1100mm PLUS

The Losmandy bar 1100mm belongs to the PLUS system (Prima Luce Universal System) that includes a large variety of telescope rings, bars, guide rings and dovetail clamps. This 1100mm PLUS Losmandy style dovetail plate can be installed in parallel to the Celestron SC 14", EdgeHD 14" telescopes with the original Aluminum Dew Shield and connect ALTO-3 and GIOTTO430. Or to the RASA 11" telescope to use ALTO-2 with GIOTTO320. In both cases you need to add also the PLLSAG925 curved blocks and the PLLMORVLP clamp.

The bar has a system of slots, drilled and threaded holes that maximize the compatibility between parts, allowing several mechanical combinations and assembly solutions.

Each component of the PLUS system is carved from aluminium blocks that are CNC machined. Then, the aluminium is sandblasted to achieve a very smooth surface finish and is anodized (hard anodizing) to increase the hardness of the material and to protect it from oxidation.

Due to its particular design, the Losmandy 1100mm PLUS bar can be:

1. Positioned below telescope rings.
2. Installed below a DSLR camera (connection screw not included).
3. Installed above the support telescope rings to increase the mechanical rigidity of the telescope (and it allows you to attach other accessories such as guide rings).
4. Used in long OTAs to allow you clamp the ALTO cover motor and use GIOTTO as a motorized telescope cap.
