PRIMA LUCE LAB T2 (M42) SPACER - 0.5mm

$19.00
SKU: PL3304200

Prima Luce Lab

  • Optical thickness: 0.5 mm




This spacer works with M42 and T2 adapters to fine tune the distance between corrector and sensor. It has a thickness of 0.5mm.

M48 spacer 0,5mm

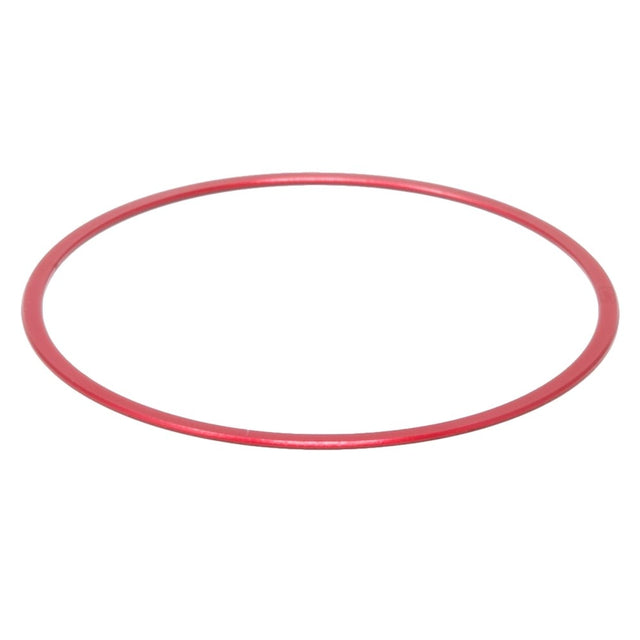

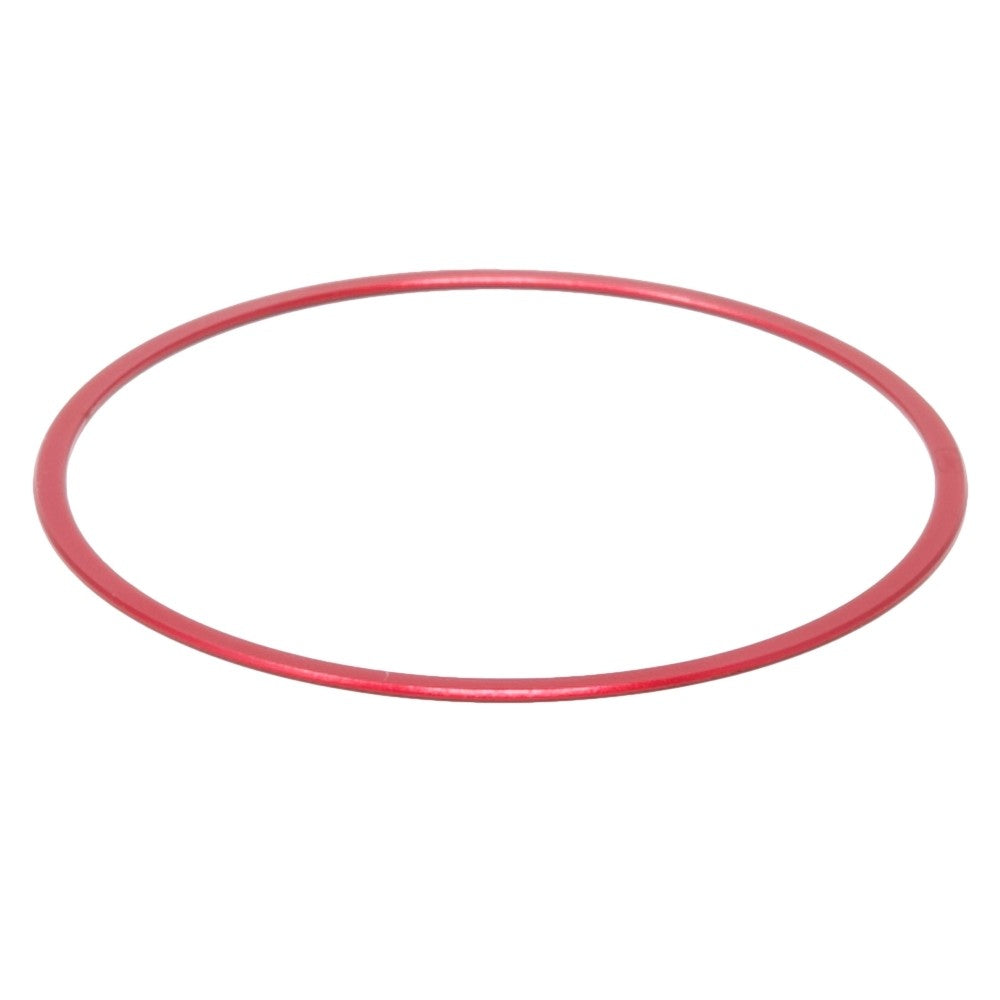

 M42 spacers can be used together with M42 extensions in order to fine set the total thickness of the extension. The two black M42 extension in the picture are not included with the red spacer.



Prima Luce Lab offer a large variety of extension rings and spacers to match the right distance:



Thickness (mm) Combination Codes
5
5mm T2 extension PL3304205
5.5 5mm T2 extension + T2 spacer 0.5mm PL3304205 + PL3304200
6 5mm T2 extension + T2 spacer 1mm PL3304205 + PL3304201
6.5 5mm T2 extension + T2 spacer 1mm + T2  spacer 0.5mm PL3304205 + PL3304201 + PL3304200
7 7mm T2 extension PL3304207
7.5 7mm T2 extension + T2 spacer 0.5mm PL3304207 + PL3304200
8 7mm T2 extension + T2 spacer 1mm PL3304207 + PL3304201
9 9mm T2 extension PL3304209
9.5 9mm T2 extension + T2 spacer 0,5mm
PL3304209 + PL3304200
10 5mm T2 extension + 5mm T2 extension PL3304205 + PL3304205
10.5 5mm T2 extension + 5mm T2 extension + T2 spacer 0.5mm
PL3304205 + PL3304205 + PL3304200
11 5mm T2 extension + 5mm T2 extension + T2 spacer 1mm PL3304205 + PL3304205 + PL3304201
11.5 5mm T2 extension + 5mm T2 extension + T2 spacer 1mm + T2 spacer 0.5mm PL3304205 + PL3304205 + PL3304201 + PL3304200
12 5mm T2 extension + 7mm T2 extension PL3304205 + PL3304207
12.5 5mm T2 extension + 7mm T2 extension + T2 spacer 0.5mm PL3304205 + PL3304207 + PL3304200
13 5mm T2 extension + 7mm T2 extension + T2 spacer 1mm PL3304205 + PL3304207 + PL330420
13.5 5mm T2 extension + 7mm T2 extension + T2 spacer 1mm + T2 spacer 0.5mm PL3304205 + PL3304207 + PL3304201 + PL3304200
14 7mm T2 extension + 7mm T2 extension PL3304207 + PL3304207
14.5 7mm T2 extension + 7mm T2 extension + T2 spacer 0.5mm
PL3304205 + PL3304207 + PL3304200
15 7mm T2 extension + 7mm T2 extension + T2 spacer 1mm PL3304207 + PL3304207 + PL3304201
15.5 7mm T2 extension + 7mm T2 extension + T2 spacer 1mm + T2 spacer 0.5mm
PL3304207 + PL3304207 + PL3304201 + PL3304200
16 7mm T2 extension + 9mm T2 extension PL3304207 + PL3304209
16.5 7mm T2 extension + 9mm T2 extension + T2 spacer 0.5mm
PL3304207 + PL3304209 + PL3304200
17 7mm T2 extension + 9mm T2 extension + T2 spacer 1mm PL3304207 + PL3304209 + PL3304201
17.5 7mm T2 extension + 9mm T2 extension + T2 spacer 1mm + T2 spacer 0.5mm PL3304207 + PL3304209 + PL3304201 + PL3304200
18 9mm T2 extension + 9mm T2 extension
PL3304209 + PL3304209

18.5

9mm T2 extension + 9mm T2 extension + T2 spacer 0.5mm PL3304209 + PL3304209 + PL3304200
19 9mm T2 extension + 9mm T2 extension + T2 spacer 1mm PL3304209 + PL3304209 + PL3304201
19.5 9mm T2 extension + 9mm T2 extension + T2 spacer 1mm + T2 spacer 0.5mm
PL3304209 + PL3304209 + PL3304201 + PL3304200





Prima Luce Lab adapter and extension installed between camera.







Specifications



Diameter

Fit adapter with M42 and T2 thread

Optical thickness

0.5 mm

SKU

PL3304200



PRIMA LUCE LAB T2 (M42) SPACER - 0.5mm.

PRIMA LUCE LAB T2 (M42) SPACER - 0.5mm

$19.00

Optical design

Image circle

Focal ratio

Aperture

Focal length

Optical thickness

Optical thickness: 0.5 mm
