PLANEWAVE L-500 DIRECT DRIVE ALT-AZ MOUNT

$44,500.00AUD
SKU: PW-600550

Planewave

Alt/Az

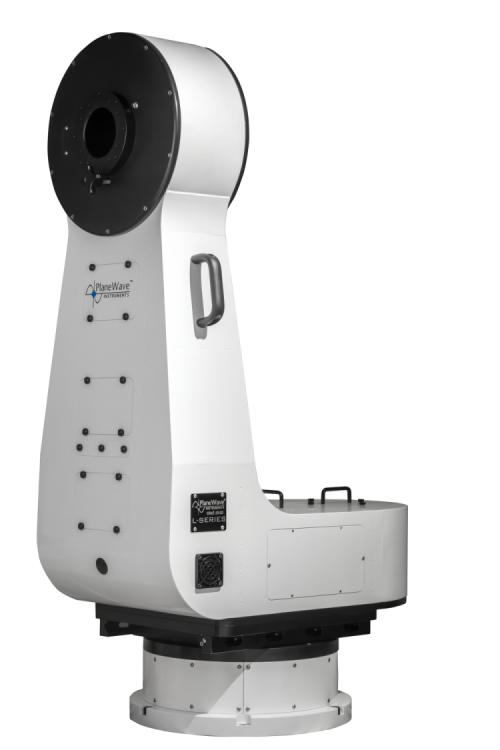

The PlaneWave L-500 Direct Drive Mount embodies a pinnacle of engineering precision, designed to meet the rigorous demands of advanced astrophotographers and astronomical researchers. As a critical part of the L-Series, this mount leverages sophisticated technology to provide an unmatched observational platform.

*Price excludes shipping and crating. Contact us for full details.



Key Features
  • 200 lbs (90kg) load capacity
  • Direct drive motors for zero backlash, zero periodic error, and fast 50-degree-per-second slew speeds
  • High-resolution encoders for precise positioning
  • Enclosed electronics
  • Though the mount cabling
  • Alt/Az or equatorial installation orientations with optional equatorial wedge
  • Ideal for the DeltaRho 350, CDK 12.5", CDK 14", CDK 17"CDK20 f/6.8 and RC20 optical tube assemblies



State-of-the-Art Direct-Drive Motors

Equipped with PlaneWave's proprietary direct-drive motors on each axis, the L-500 ensures the telescopes' smooth, fast, and whisper-quiet movement. This rapid adjustment capability is ideal for tracking celestial objects and satellites across the sky with minimal vibration and maximal accuracy.

High-Resolution Encoders

With high-resolution encoders on each axis, the L-500 offers precise positioning, crucial for capturing sharp, detailed images of the night sky. These encoders are fundamental for scientific applications where exact data collection is paramount.

Zero Backlash and Periodic Error

The design of the L-500 eliminates backlash and periodic error, providing steady tracking that is essential for high-quality astrophotography and reliable, long-term observational research.

Flexible Installation Options

Available in both Alt/Az and equatorial configurations, the L-500 meets diverse observational needs. Whether for a fixed installation in an educational observatory or a versatile setup for amateur astronomers, this mount adjusts to various settings and requirements.

Through-the-Mount Cabling

The innovative through-the-mount cabling system enhances setup neatness and safety, preventing cable snagging and reducing setup time.

Azimuth Dovetail Balance System

Provides precise center of gravity adjustments, enhancing the stability and performance of the system in both alt-azimuth and equatorial configurations, crucial for maintaining accurate tracking and reducing strain on the mount during extended observations.

Optional Dual Mounting Bracket

Allows for the attachment of additional telescopes or accessories on the mount, enhancing versatility and enabling simultaneous multi-instrument use, ideal for complex observational setups or educational demonstrations.

Rapid Target Acquisition

Equipped with direct-drive motors capable of slew speeds up to 50 degrees per second, enabling quick and efficient targeting of celestial objects and satellites, crucial for dynamic observations and time-sensitive astrophotography.

PointXP Mount Modeling Software

Included with the mount, PointXP software creates precise models of the mount's tracking behavior, improving its accuracy for critical applications. This software is invaluable for projects requiring exact positioning and tracking over extended periods.



Application-Specific Advantages
Astrophotography

The L-500’s rapid slew speeds and silent operation allow astrophotographers to seamlessly and quietly reposition between shots, capturing stunning celestial images without disturbing the observational environment.

Research

Researchers benefit from the L-500’s robust construction and precise tracking capabilities to conduct detailed celestial observations and continuous monitoring with minimal interruption and consistent data quality.

Space Situational Awareness (SSA) and Space Domain Awareness (SDA)

With its ability to swiftly and accurately reposition, the L-500 has ben been used for tracking satellites and space debris. However, our L-series mounts work best for astrophotography and research applications.



Specifications
Type
Alt-Azimuth / Equatorial Direct-Drive Mount
Weight 257 lbs (100 kg)
Instrument payload capacity 200 lbs (91 kg)
Latitude range
0 to 90 degrees, Northern and Southern hemispheres
Cable Management
Equipment cables can be wired through mount
Swing-Through Length (From Altitude Axis) 650.748 mm (25.62")
Control Electronics PlaneWave Interface dual axis telescope control
Homing Sensors Home position sensors are included allowing the mount to find its home position on power up
Slew Rate 20 degrees per second (standard); 50 degrees per second (maximum), both axes
Power Requirement Accepts 120 to 240 VAC. Supplied with 120 VAC 15A IEC Type B Regulated Power Adapter.
Motor Control Industrial grade brushless motor control system and built in electronics
Motor – Azimuth and Altitude Direct-Drive 3 Phase Axial-Flux Torque Motors Encoder – Azimuth and Altitude
Encoder – Azimuth and Altitude 152 mm stainless steel encoder ring with reader built into the azimuth and altitude axes. 18,880,000 counts per revolution (0.069-arcsecond resolution).
Motor Torque Approximately 20 ft-lbs continuous; 50 ft-lbs peak
Drive Electronics Industrial grade, off-the-shelf brushless motor drives for each axis with custom designed interface card
Telescope Control Software Uses PWI4. Incorporates PointXP mount modeling software by Dave Rowe. All ASCOM compatible.
Pointing Accuracy <10-arcsecond RMS with PointXP Model
Pointing Precision 2 arcseconds at sidereal velocity
Tracking Accuracy 0.3 arcseconds over a 5-minute period at sidereal velocity
System Natural Frequency 10 Hz or greater
SKU PW-600550



 Included Items
  • Dovetail Saddle (200919): The PW wide saddle comes standard with the L-500 mount.
  • Hardware:
    • Six 1/2-13 x 1 1/4″ socket head cap screws to bolt the mount to the pier or wedge
    • Six 1/2-13 washers
    • One extended length shoulder bolt for RA axis to EQ wedge alignment
  • One 16' USB Cable: To connect the mount to the observatory control computer.
  • One 120VAC Power Cable: To provide power to the mount.
  • Standard Allen Key Set: For tightening bolts used on the mount.
  • Flash Drive: Contains PWI4 software for mount control and instructions for installation.
  • 3/8 Socket: Used for operating the RA balance leadscrew on the mount.
  • Gamepad: Used for control of the mount tracking speeds for visual observing.
