MORAVIAN EFW 5XL FILTER WHEEL
Moravian Instruments
MORAVIAN EFW 5XL FILTER WHEEL - 5 x 65mm SQUARE is backordered and will ship as soon as it is back in stock.
The Moravian EFW 5XL is a motorized filter wheel for C5 series cameras. Two different variants are available to suit the different sensors found in these cameras:

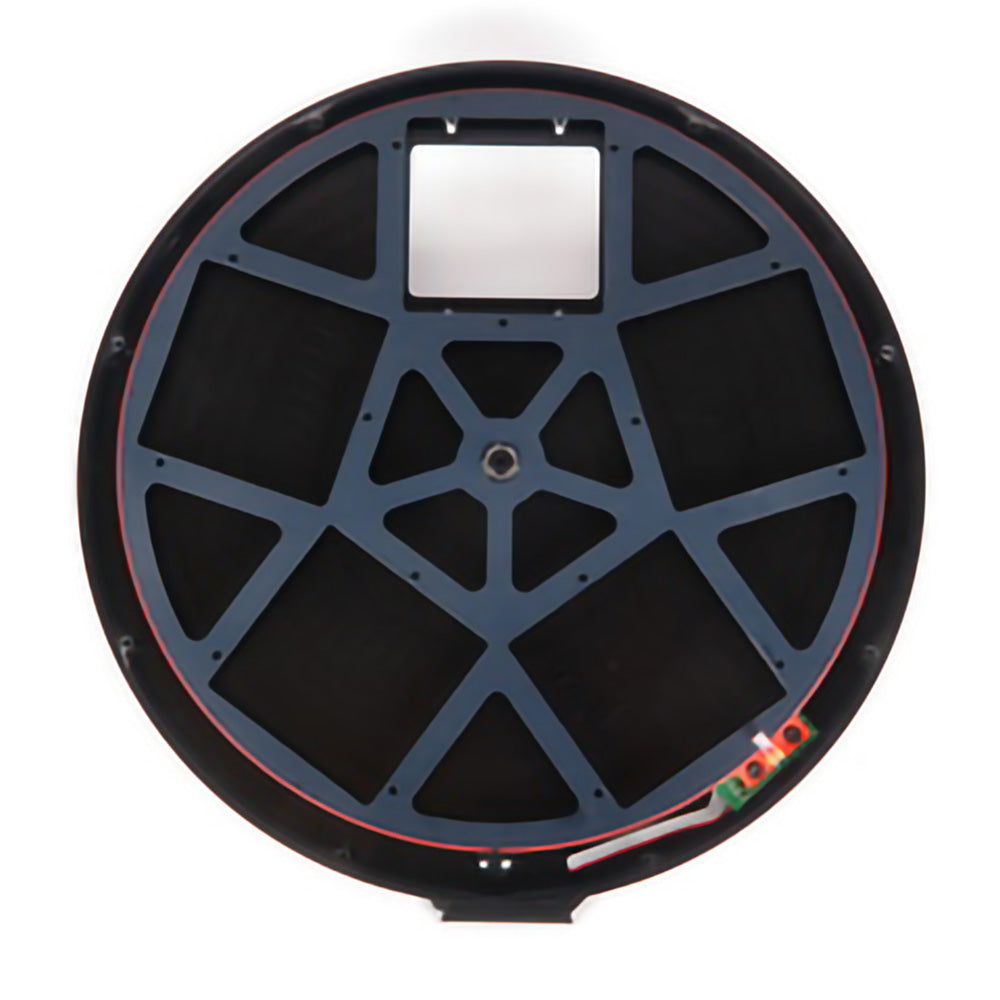

- EFW-5XL-5 for 5 x 65 x 65mm square unmounted filters.

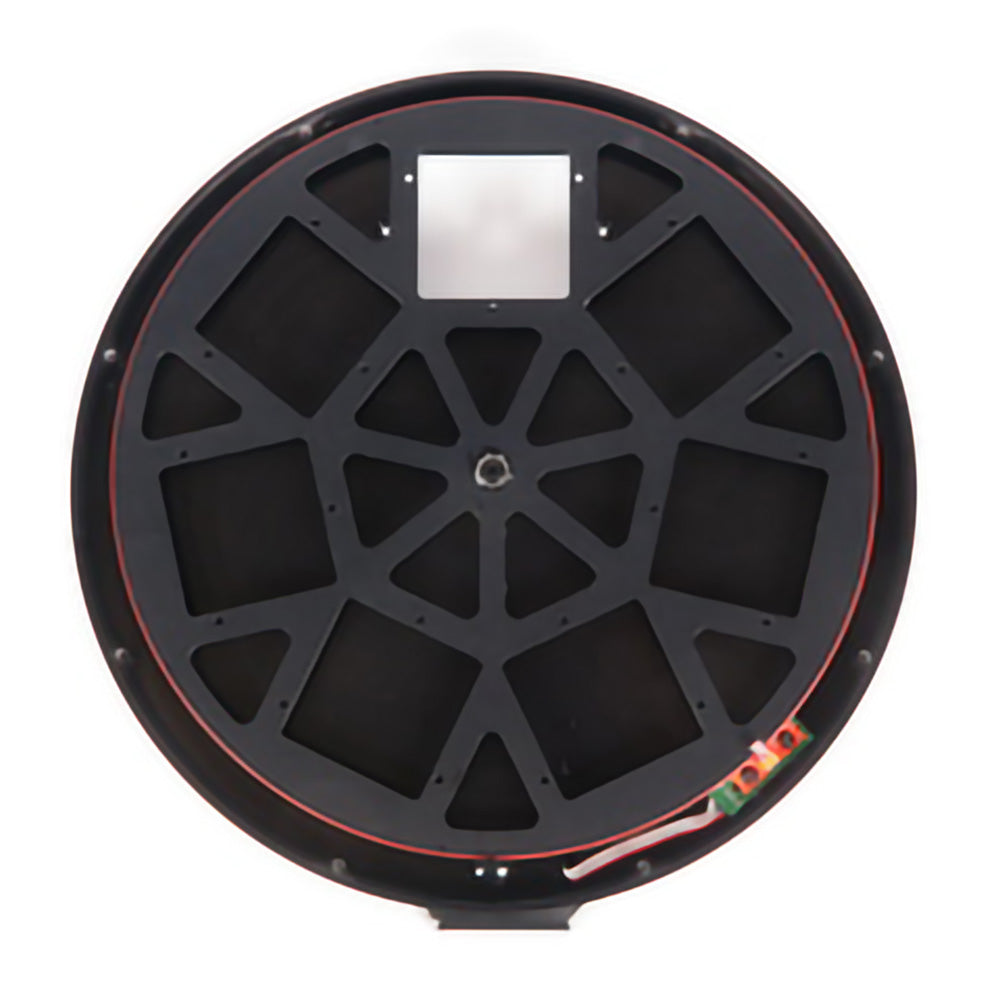

- EFW-5XL-7 for 7 x 50 x 50mm square unmounted filters.
All EFW filter wheels have the same 17mm thickness, so when used with a C5 camera the distance to the sensor becomes 33.5mm. The body of the filter wheel is CNC machined from aluminium. EFW 5XL filter wheels are compatible with "XL" size adapters.
Moravian EFW filter wheels are controlled and powered over a single 8-pin RJ45 cable which connects directly to the camera, simplifying cable management.
Detailed information for External Filter Wheels can be found on the Moravian website.
Specifications
| Compatible filters | 5 x 65 mm square, 7 x 50 x 50 mm square (depending on model) |
|---|---|
| Ports |
8-pin RJ45 |
| Power supply | 12V DC via RJ45 to camera |
| Optical thickness | 17 mm |
| Camera connection |
Direct connection via 4 x M3 screws |
| Telescope connection | Additional adapters necessary |
| Weight | TBD |
