iOPTRON TRI-PIER
$1,099.00
Unit price
/
Unavailable
SKU:
IO-8034
iOptron
Payload: 100 kg
11.7 kg
iOPTRON TRI-PIER is backordered and will ship as soon as it is back in stock.

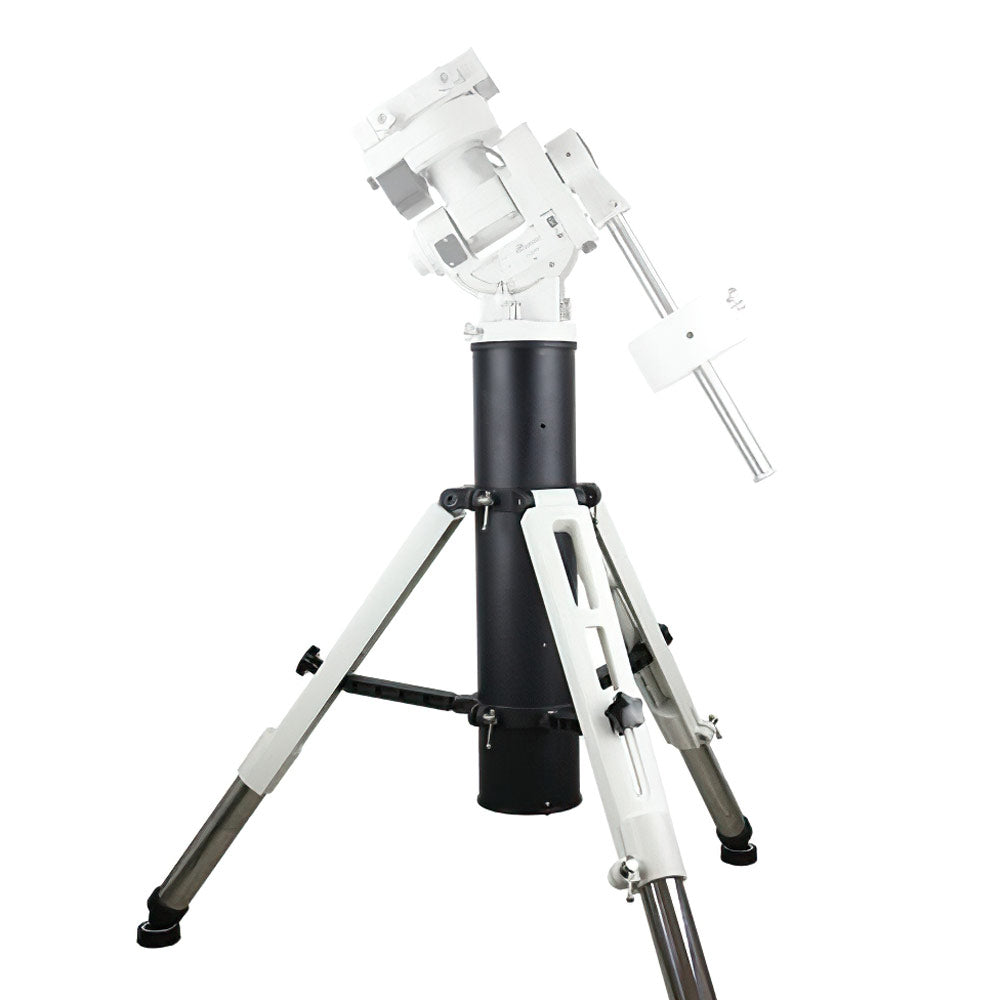

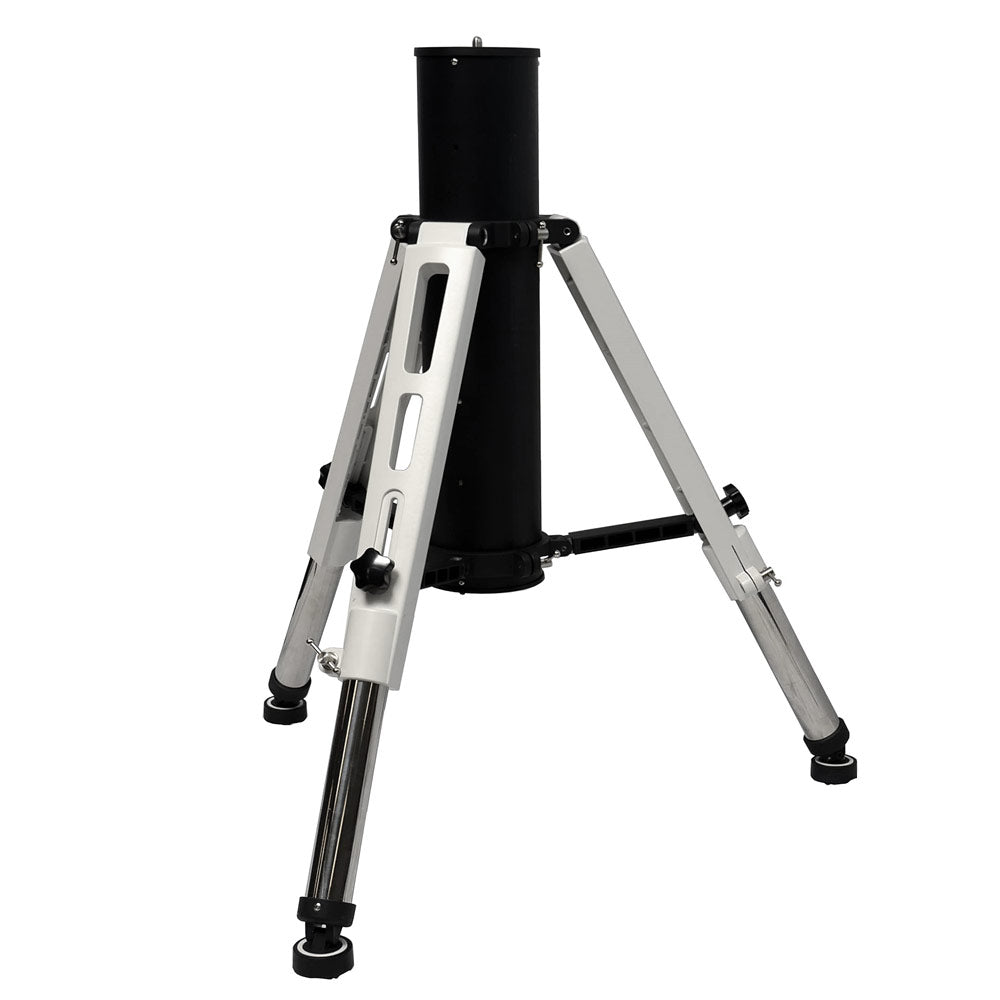

The iOptron Tri-Pier combines the strength and stableness of a pier with the levelling flexibility of a tripod. Aluminium pier and leg tops. Stainless steel leg extensions. The Tri-Pier feet has built-in vibration suspension pads.
The Tri-pier fits these iOptron mounts (may need extra mounting accessories):
- CEM70A/CEM70AG
- CEM60/CEM60EC
- CEM40/CEM40EC
- GEM45/GEM45EC (may limit low latitude application)
- iEQ45/iEQ45 Pro
- iEQ30/iEQ30 Pro (may limit low latitude application)
- AZ Mount Pro/MiniTower/MiniTower II/MiniTower Pro (needs a center post and three leveling screws #8340-PIER)
The Tri-pier also fits other brand mounts with a suitable adapter.
Specifications
| Max payload | 100 kg (220 lbs) |
|---|---|
| Pier weight |
11.7 kg (25.8 lbs) |
| Pier diameter | 144 mm with 150 mm top plate |
| Adjustable height | 800 - 1080 mm |
| Uneven ground range | 85 mm |
| Leg maximum spread | Ø 1240 mm |
| Pier dimensions (folded) | Ø 325 x 660 mm |
| Warranty | One year limited |
| SKU | IO-8034 |
Downloads
 Assembly instructions
|
