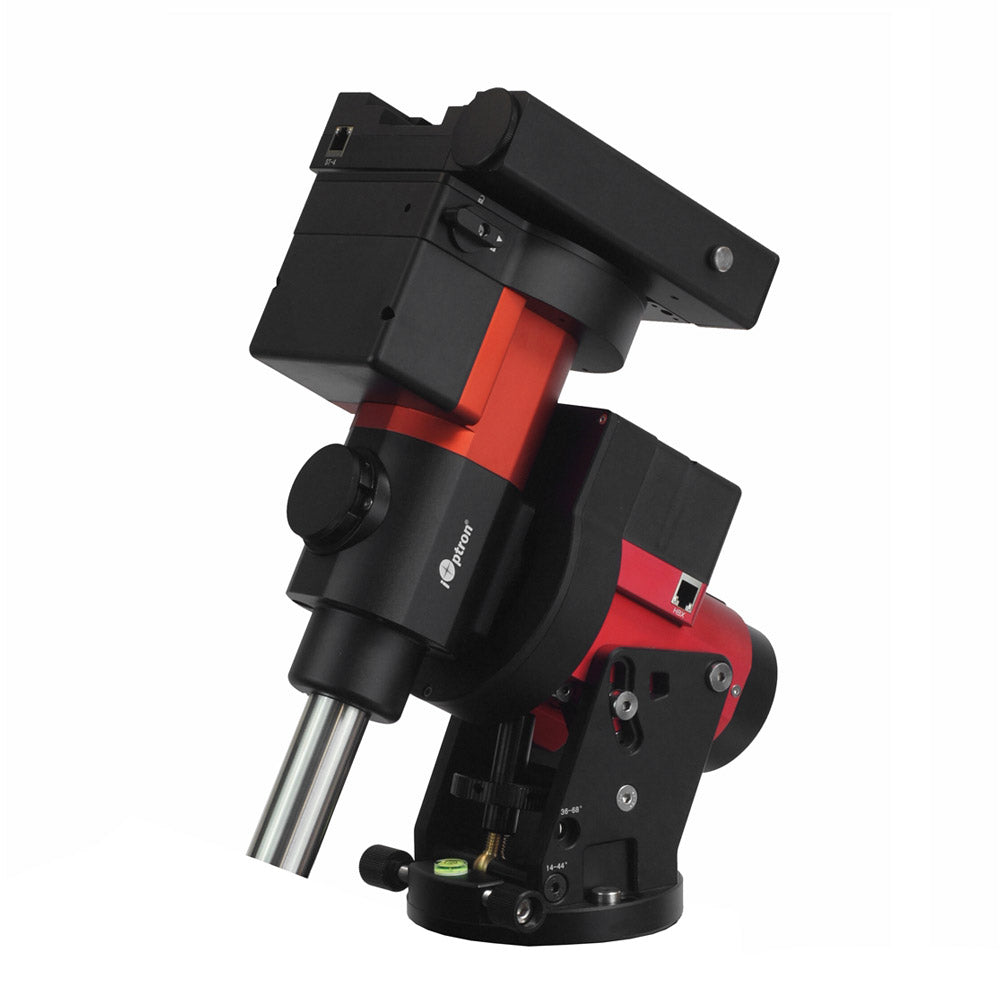

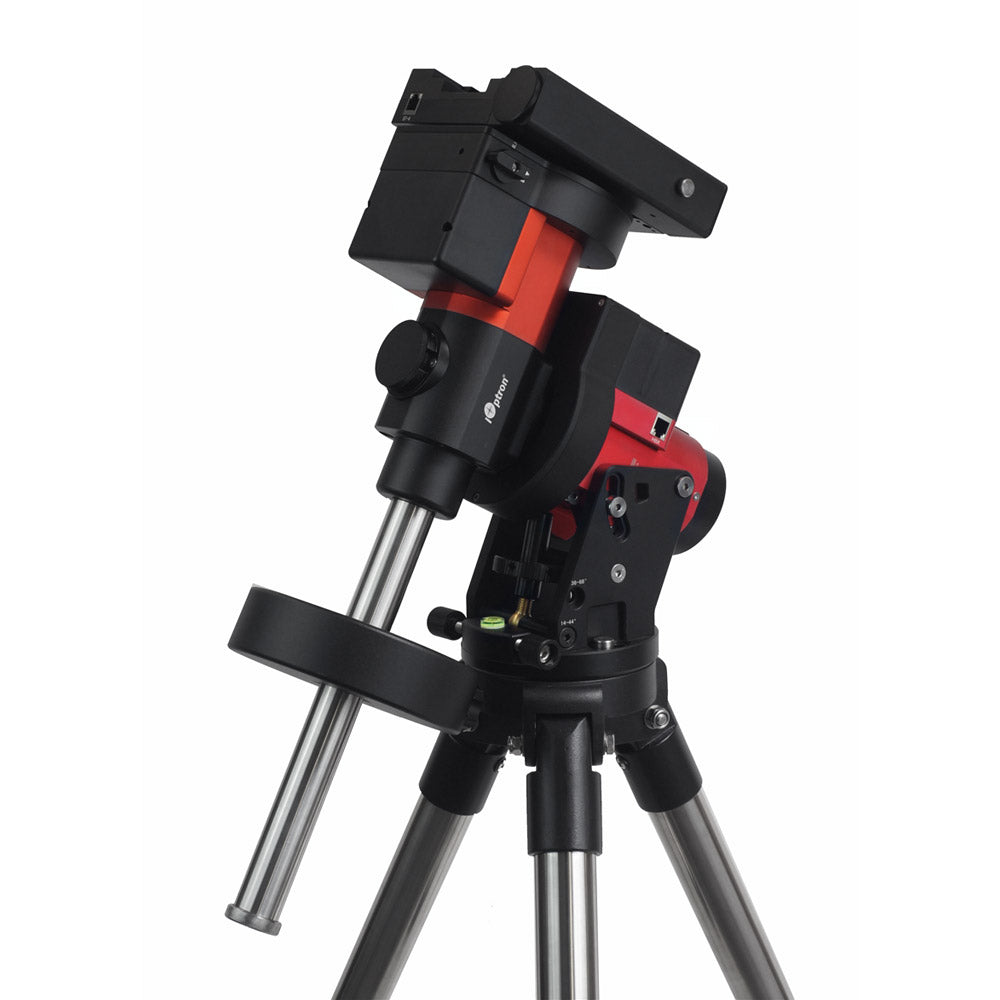

iOPTRON GEM45 WITH iPOLAR & LITEROC TRIPOD

Name: iOPTRON GEM45 WITH iPOLAR & LITEROC TRIPOD
Brand: Testar Australia
SKU: IO-7603A
Price: 4099.0 AUD
Availability: OutOfStock

$4,099.00AUD

SKU: IO-7603A

iOptron

Equatorial

Payload: 20 kg

Encoders: None

7.9 kg

CASE

WITHOUT CASE WITH HARD CASE

Product variants

Includes a FULLY CERTIFIED Australian power supply!

The iOptron GEM45 is an innovative next-generation German equatorial mount. Utilizing experience gained during development of the CEM series, iOptron was able to remove unnecessary bulk giving the GEM45 an incredible 2.5 payload to mount weight ratio.

This compact 7.9kg mount can precisely GOTO an object and track with up to 20kg of gear onboard. With its integrated iPolar electronic polar scope, polar alignment is a snap, even when the pole star is obscured. Large levers on the quick-lock drive engagement system make it easy to snap its drive gears into place even when wearing gloves. The gears are spring-loaded for reduced backlash.

There is little chance of your cables getting snagged with the GEM45's internal advanced cable management system. A 6" dual dovetail saddle accommodates Losmandy and Vixen style dovetail plates.

The GEM45 mounts utilize reliable stepper motor drive systems with iOptron's low power consumption technology. The new LiteRoc 1.75" tripod delivers rock solid stability in a lighter, more compact package. A 212,000+ object library with star identification, GPS, Wi-Fi (requires optional iStarFi adapter) are a few of the desirable features standard on the GEM45 mount.

Features

German equatorial mount with innovative features
Ideal for both visual observation and astrophotography
Maximum payload of 20 kg (45 lbs) with the mount weight of only 7.9 kg (17.5 lbs)
Easy to use quick-lock gear clutches
Integrated iPolar electronic polar finder
Low periodic error (< ± 7 arc seconds)
Permanent periodic error correction (PPEC)
Precision stepper motor for precise GOTO and accurate tracking
Go2Nova 8407+ controller with Advanced GOTONOVA® GOTO Technology and built-in heater
Integrated ST-4 autoguiding port
32-channel Global Positioning System (GPS)
USB communication port
Cable management system
6" Losmandy-D & Vixen dual dovetail saddle
All metal, CNC machined with red/black anodized
Optional WiFi for mount control via SmartPhone/Tablet/Computer
All new LiteRoc 1.75" tripod with improved stability and leg locks
NEW iOptron subsidized TheSky Imaging Edition

Specifications

Mount	German Equatorial Mount
Max payload	20 kg (45 lbs) excluding counterweight
Mount weight	7.9 kg (17.5 lbs)
Payload/Mount weight ratio	2.53
Body material	All metal, CNC machined, anodized
Periodic error (PE)	<±7 arcsec
PEC	Yes, Permanent PEC
Worm period	400 sec
Right Ascension worm wheel	Φ 110 mm, 216 teeth, zero backlash
Declination worm wheel	Φ 110 mm, 216 teeth, zero backlash
Right Ascension axis shaft	Φ 45 mm steel
Declination axis shaft	Φ 45 mm steel
Right Ascension bearing	Φ 68 mm
Declination bearing	Φ 68 mm
Worm diameter	Φ 17 mm, Brass
Motor drive	Precision 1.8º stepper motor, 128 x microdivision
Resolution	0.08 arc seconds (200 PPS)
Transmission	Synchronous belt
Latitude adjustment range	14º ~ 68º
Azimuth adjustment range	± 6º
Polar Scope	Internal iPolar electronic polar scope
Level indicator	Level bubble
Hand Controller	Go2Nova 8407+, 8 line 21 character LCD
Meridian treatment	Stop (0-20° pass), flip
Max slew speed	4.5°/sec (1080x)
Power consumption	0.6A (tracking), 0.9A (GOTO)
Power requirement	12V DC, 5A, 5.5mm x 2.5mm plug
Power-down memory	Yes
Wi-Fi	External (optional)
Communication port	USB
Autoguide port	ST-4
Cable management	DC 12V (3A), ST4, USB
Counterweight shaft	Φ 28 x 280 mm, Stainless Steel, 1.2 kg
Counterweight	5 kg (11 lbs)
Tripod	LiteRoc heavy-duty stainless steel tripod (8kg)
Dovetail saddle	6" Losmandy D & Vixen
GPS	Yes
Operation temperature	-10ºC ~ 40ºC
Warranty	Two year limited
SKU	IO-7603A
