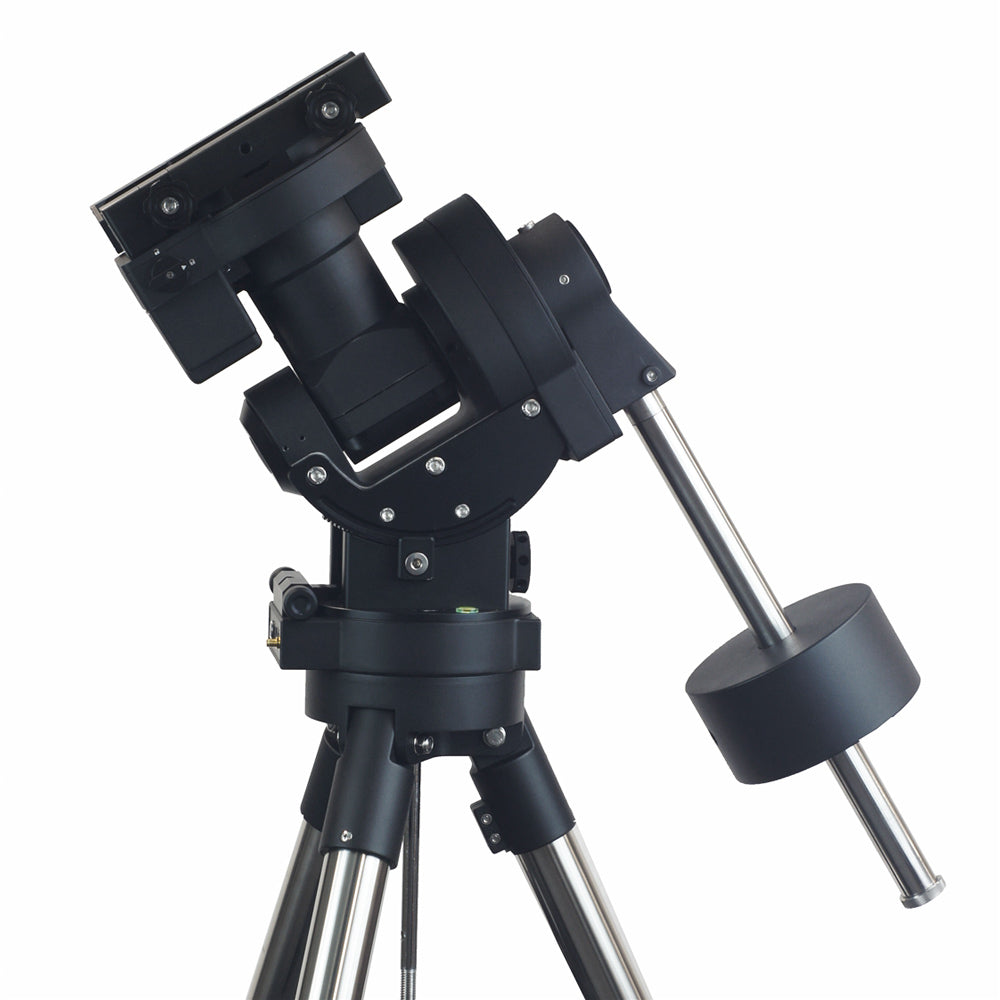

iOPTRON CEM70A WITH iPOLAR

Name: iOPTRON CEM70A WITH iPOLAR
Brand: Testar Australia
SKU: IO-C70A
Price: 4849.0 AUD
Availability: InStock

$4,849.00AUD

SKU: IO-C70A

iOptron

Equatorial

Payload: 31.8 kg

Encoders: None

13.6 kg

Includes a FULLY CERTIFIED Australian power supply!

The revolutionary CEM70A is a new standard bearer for equatorial mounts in the 70lb (30+ kg) payload segment.

Retaining the inherent properties of the center balance design, this relatively compact medium payload mount delivers what astronomers expect in an efficient and accurate portable mount. With precise GOTO pointing and accurate tracking (PE <±3.5 arcsec) the CEM70 is a solid performer for observers and imagers alike. The gears are spring-loaded for reduced backlash.

Includes innovative operational features such as the internal iPolar electronic polar scope, easy lock drive gear engagement (levers large enough to use with gloves), an advanced cable management system for the mount, and USB 2 hub on the saddle.

This package includes the CEM70A mount head, iPolar electronic polar scope, 9.5 kg counterweight, and hard case. Does not include a tripod or Tri-Pier.

In order to offer a cheaper shipping option, the counterweight will be shipped separately by Australia Post. For the mount, you have the option to have the mount shipped by TNT or DHL Express at checkout. If you prefer have the mount and the included counterweight shipped by TNT or DHL.

Features

A new design, center-balanced equatorial mount (CEM) for maximum payload with natural stability
Ideal for both visual observation and astrophotography
Payload of 31.8 kg (70 lbs) with the mount weight of 13.6 kg (30 lbs)
Easy to use and reliable gear clutches
Precision altitude and azimuth adjustment.
Precision stepper motor with 0.07 arcsec accuracy for precise GOTO and accurate tracking
iPolar electronic polar scope
Go2Nova® 8410 controller with Advanced GOTONOVA® GOTO Technology with built in heater
High precision tracking with low periodic error (PE)<±5 arcsec
Permanent periodic error correction (PPEC)
32-channel Global Positioning System (GPS)
Built-in WiFi for remote operation
USB2.0 connection
Integrated ST-4 autoguiding port
Advanced cable management system with more choices
Spring loaded 8" Vixen/Losmandy dual saddle
NEW iOptron subsidized TheSky Imaging Edition

Specifications

Mount	Center-balanced Equatorial Mount (CEM)
Max payload	31.8 kg (70 lbs) excluding counterweight
Mount weight	13.6 kg (30 lbs)
Payload/Mount weight ratio	2.33
Body material	All metal, CNC machined, anodized
Periodic error (PE)	<±5 arc seconds
PEC	Yes, Permanent PEC
Worm period	348 sec
Right Ascension worm wheel	Φ 151 mm, 248 teeth
Declination worm wheel	Φ 151 mm, 248 teeth
Right Ascension axis shaft	Φ 55 mm steel
Declination axis shaft	Φ 55 mm steel
Right Ascension bearing	Φ 80 mm
Declination bearing	Φ 80 mm
Worm diameter	Φ 21.2 mm, Brass
Motor drive	Precision stepper motor, 128 x microdivision
Resolution	0.07 arc seconds
Latitude adjustment range	0º ~ 65º
Azimuth adjustment range	± 4º
Polar Scope	Internal iPolar electronic polar scope
Level indicator	Level bubble
Hand Controller	Go2Nova 8410, 8 line 21 character LCD
Meridian treatment	Stop (0-10° pass), flip
Max slew speed	3.75°/sec (900x)
Power consumption	0.6A (tracking), 0.8A (GOTO)
Power requirement	12V DC, 5A, 5.5mm x 2.5mm plug
Guide scope/camera	None
Communication port	USB, Wi-Fi
Autoguide port	ST-4
Cable management	2 x DC 12V (3A), 3 x USB2.0, 1 x DC in/1 x DC out, iPort. 1 x USB input for mount and USB hub
Counterweight shaft	Φ 28 x 415 mm, Stainless Steel, 1.9 kg
Counterweight	9.5 kg (20 lbs)
Tripod	Optional LiteRoc heavy-duty stainless steel tripod
Dovetail saddle	8" Losmandy D & Vixen
GPS	Yes
Operation temperature	-10ºC ~ 40ºC
Warranty	Two year limited
SKU	IO-C70A
