IOPTRON LITEROC TRIPOD FOR CEM40 & GEM45

$499.00AUD
SKU: IO-7623

iOptron

6.8 kg

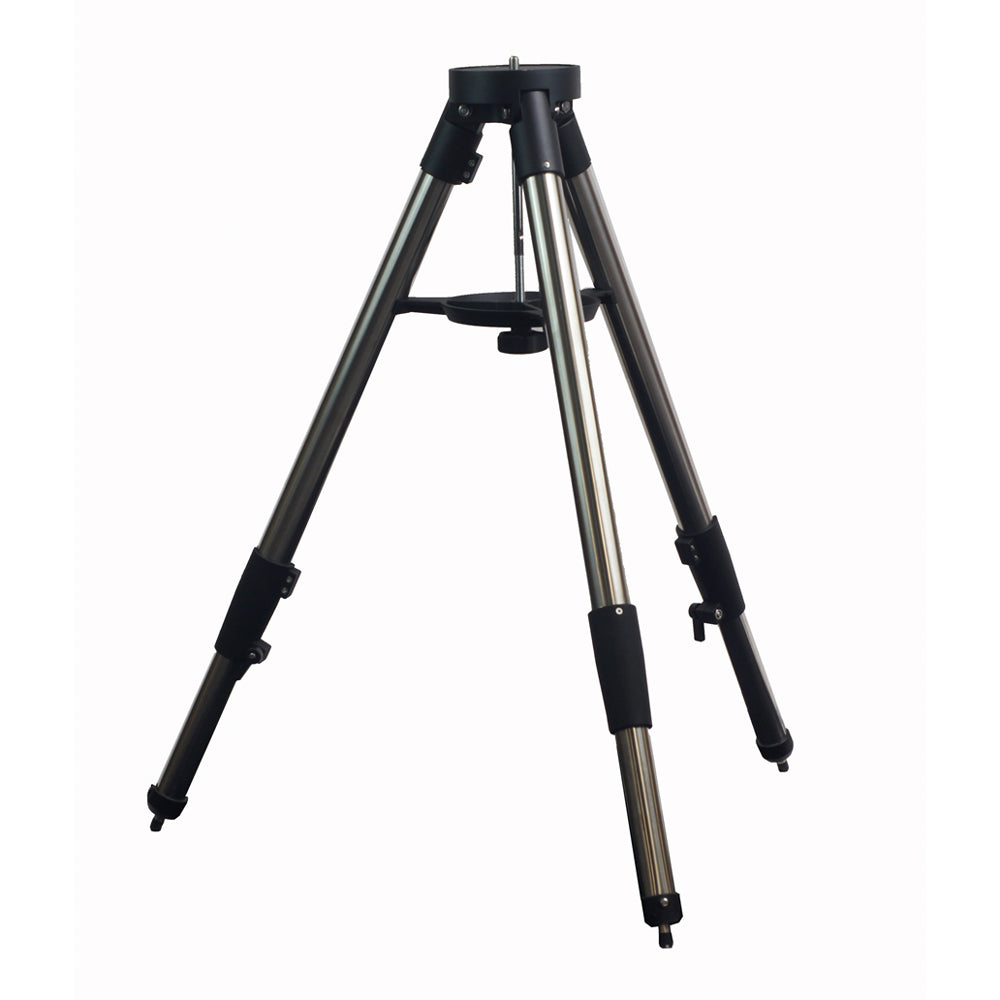

The iOptron LiteRoc tripod for CEM40 & GEM45 features a die-cast aluminium top plate with heavy duty stainless steel legs.

This version combines a 1.75" diameter upper leg section with a 1.5" diameter lower section, resulting in a lighter tripod with similar stability to the old 2" LiteRoc. It also has improved leg cuffs and sockets for further rigidity and redesigned leg lock levers securing the position of the extension.

This tripod has a 120mm diameter tripod head which fits the following iOptron mounts:

  • CEM40
  • HAE43
  • HEM44
  • GEM45

The tripod includes a center alignment post.

Specifications



Material Aluminium top with stainless steel legs
Diameter of top plate Ø 120 mm
Spreader/tray Metal accessory tray
Center post Ø 12 mm
Legs 2-section, 1.75" and 1.5"
Tripod height Min. 765 mm, max. 1168 mm
Maximum leg spread Ø 1520 mm
Weight 6.8 kg
SKU IO-7623
