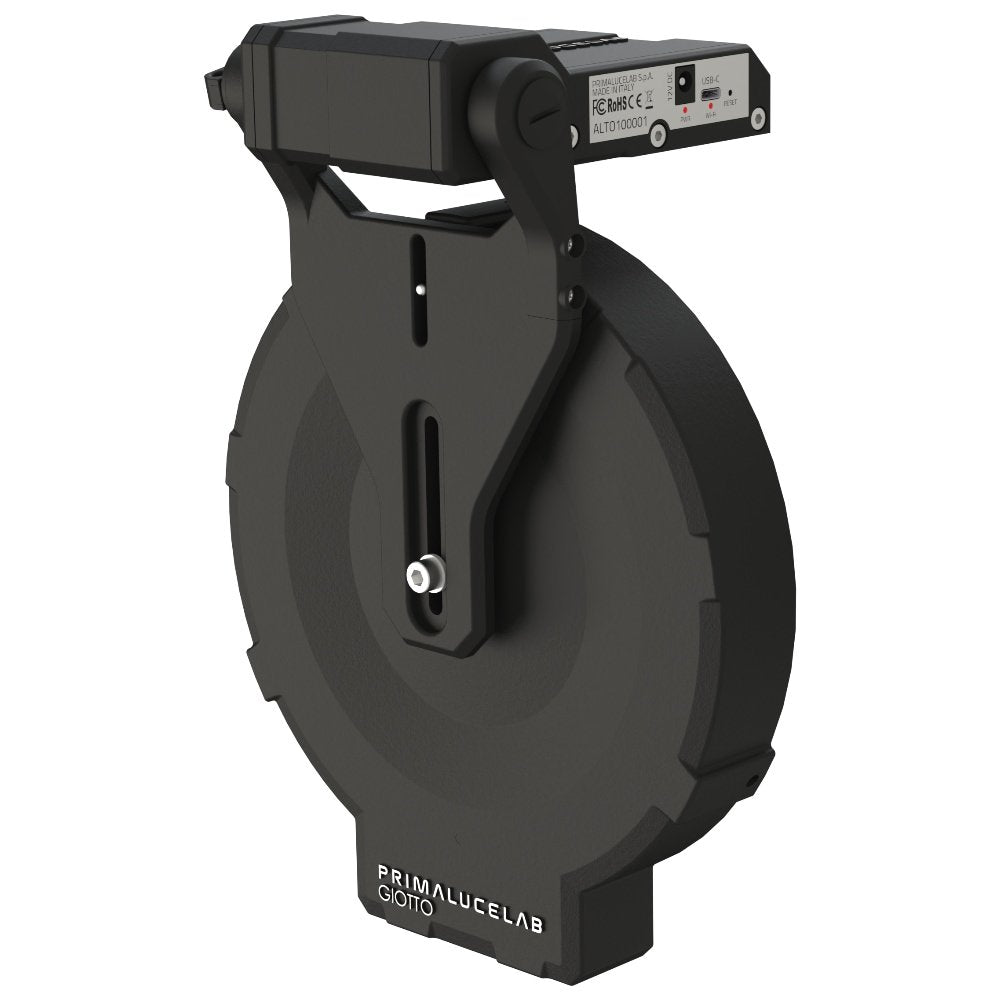

GIOTTO 185 & ALTO-1 MOTORIZED COVER

This bundle includes the Prima Luce Lab GIOTTO 185 flat field generator & ALTO-1 motorized cover, allowing you to completely automate acquisition of flat calibration frames. With the addition of the ALTO, it also can be used as a remotely-controllable cover to protect the telescope when not in use.

The GIOTTO is an ASCOM and Wi-Fi controllable flat field generator designed to provide consistent and repeatable flat calibration frames. The GIOTTO 185 can be used with telescopes with an aperture up to 185mm and an external tube diameter between 147 - 210mm with the included plastic thumbscrews.

GIOTTO flat field generators feature an array of LED lights with a colour temperature similar to the Sun and a specially designed diffuser for homogenous illumination. The integrated electronics allow you to precisely adjust the brightness by 100 steps and can be controlled over ASCOM via USB-C or Wi-Fi from your smartphone or tablet. It can be powered from a 12V power source such as the Eagle control unit, so no external power brick is required.

Flat frame calibration is an essential part of creating professional astrophotos and requires a uniform and dimmable light source. This is because many modern CMOS sensors require longer exposures for usable flat frames. The GIOTTO flat field generators make this as straightforward as possible. The Virtual HandPad allows you to remotely control the brightness of the panel with your smartphone or tablet, and even allows you to save different values for each filter.

GIOTTO 185 Features:

• Designed for telescopes with aperture up to 185mm
• LED lights at colour temperature similar to sunlight, to provide a neutral colour tone
• Special designed light diffuser for an even illumination
• Adjustable light intensity by 100 steps (0 to 100%)
• It natively runs off of a 12V power source to avoid the need for external power units
• Included thumbscrews for an easy lock in front of telescopes with external tube diameter from 147mm to 210mm
• USB-C port to let you easily connect it to your EAGLE or Windows computer
• WiFi connectivity so you can wirelessly control it using your smartphone or tablet via the included Virtual HandPad
• Control and capture flat frames with PLAY astrophotography software for EAGLE or Windows
• ASCOM driver to let you control it through third party software
• ALTO telescope cover motor to convert GIOTTO in a remotely controlled motorized cap
• Weight: 0.5 kg (1.1 lb)

This package includes the ALTO telescope cover motor, allowing you to use the GIOTTO as a motorized cap. The ALTO can be easily connected to any Vixen or Losmandy dovetail bar with Prime Luce Lab's PLUS clamps. This makes it easy to adjust the precise position of the GIOTTO for optimal coverage.

Specifications

Items included

• GIOTTO 185 smart flat field generator
• ALTO-1 motorized cover
• 3 x thumbscrews
• USB-C to USB-A cable
• 12V power cable with cigarette plug
• USB-B cable to USB-C to connect ALTO to GIOTTO via passthrough plug (length 65 cm)
• 12V cable to power ALTO through GIOTTO via passthrough plug (length 65 cm)
• ALTO quick start guide

• GIOTTO quick start guide

Downloads

In order to use GIOTTO and ALTO, you first need to download and install Prime Luce Lab's PLAY software available here.

GIOTTO manual

ALTO manual

PLAY software

ALTO useful articles

GIOTTO useful articles
