FLAT7A 0.8x REDUCER FOR FLT120, FLT132, FLT156

$999.00AUD $1,199.00
SKU: WO-P-FLAT7A

William Optics

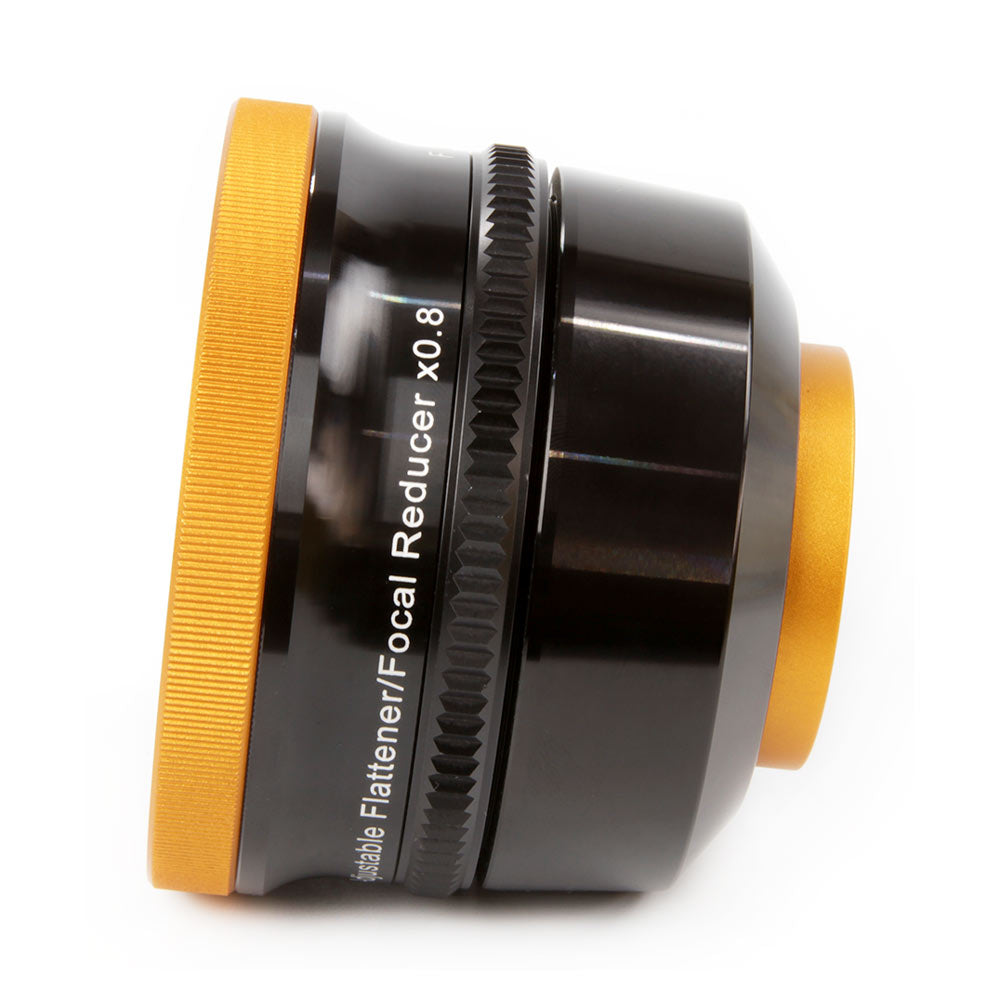

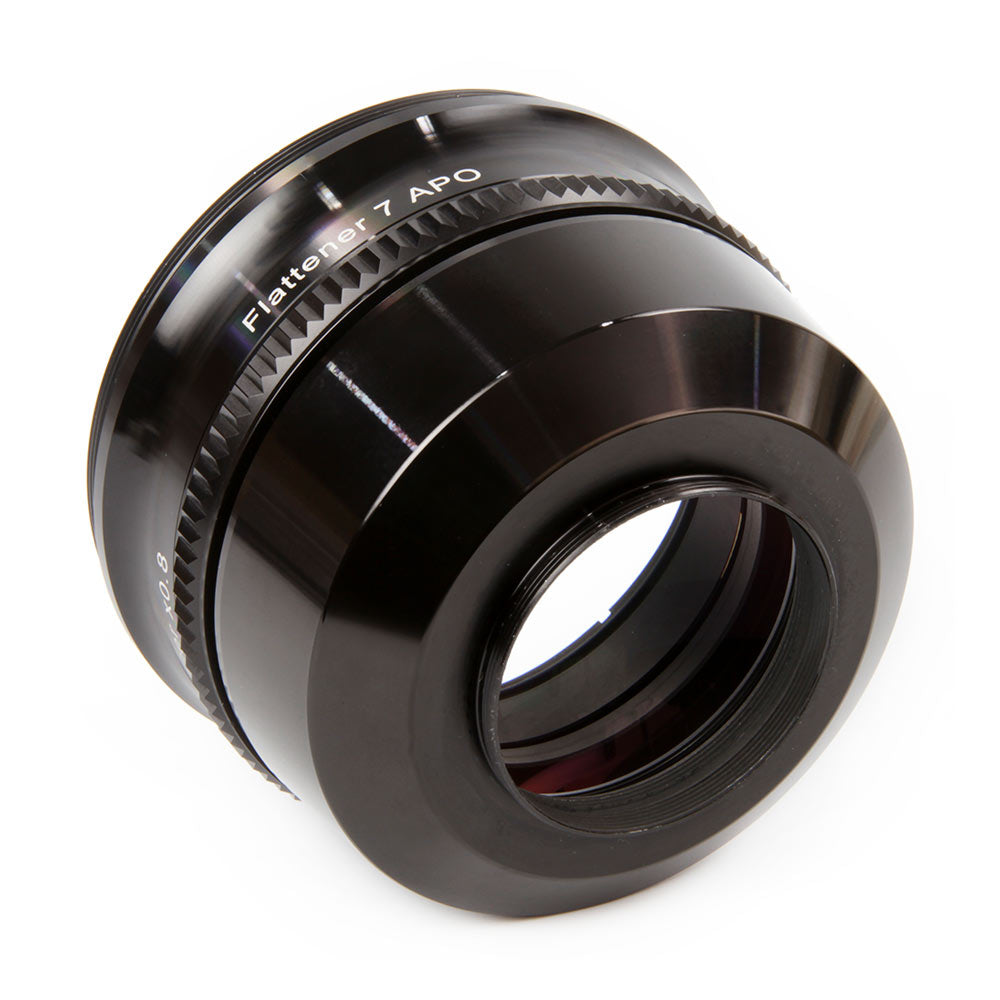

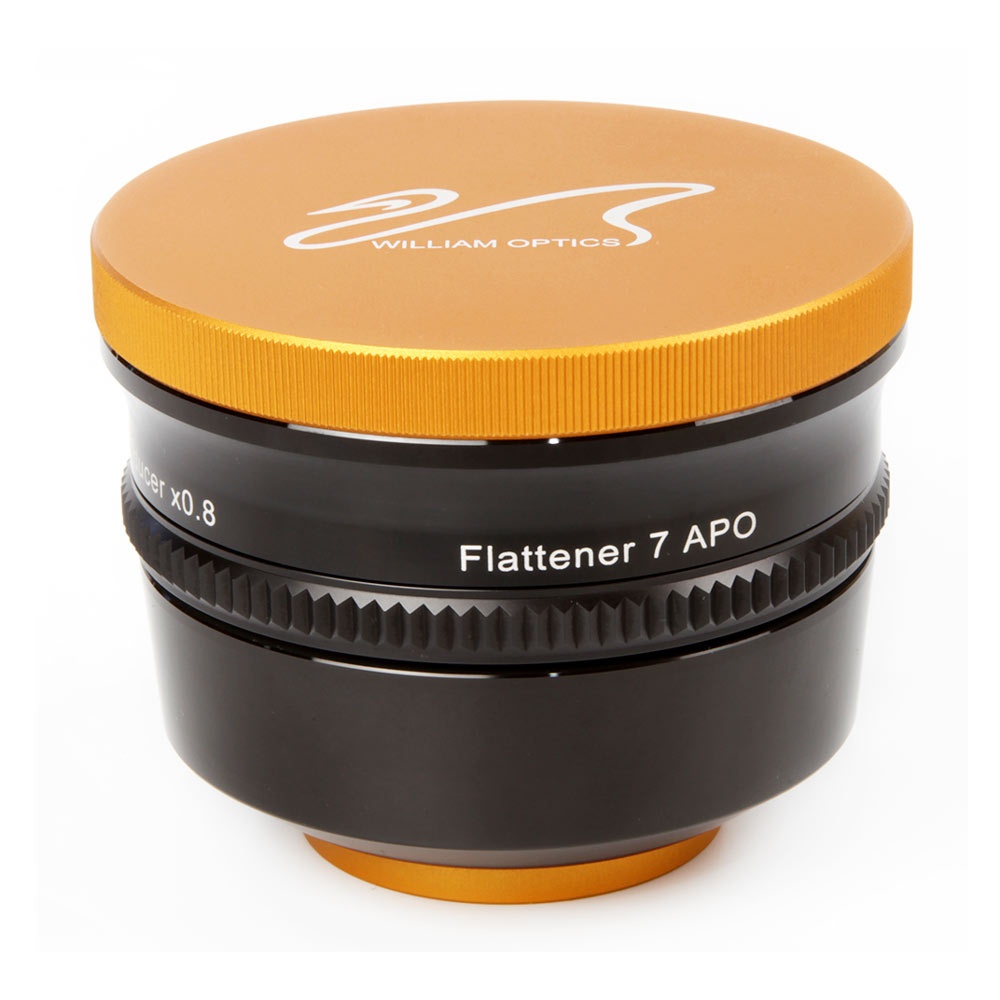

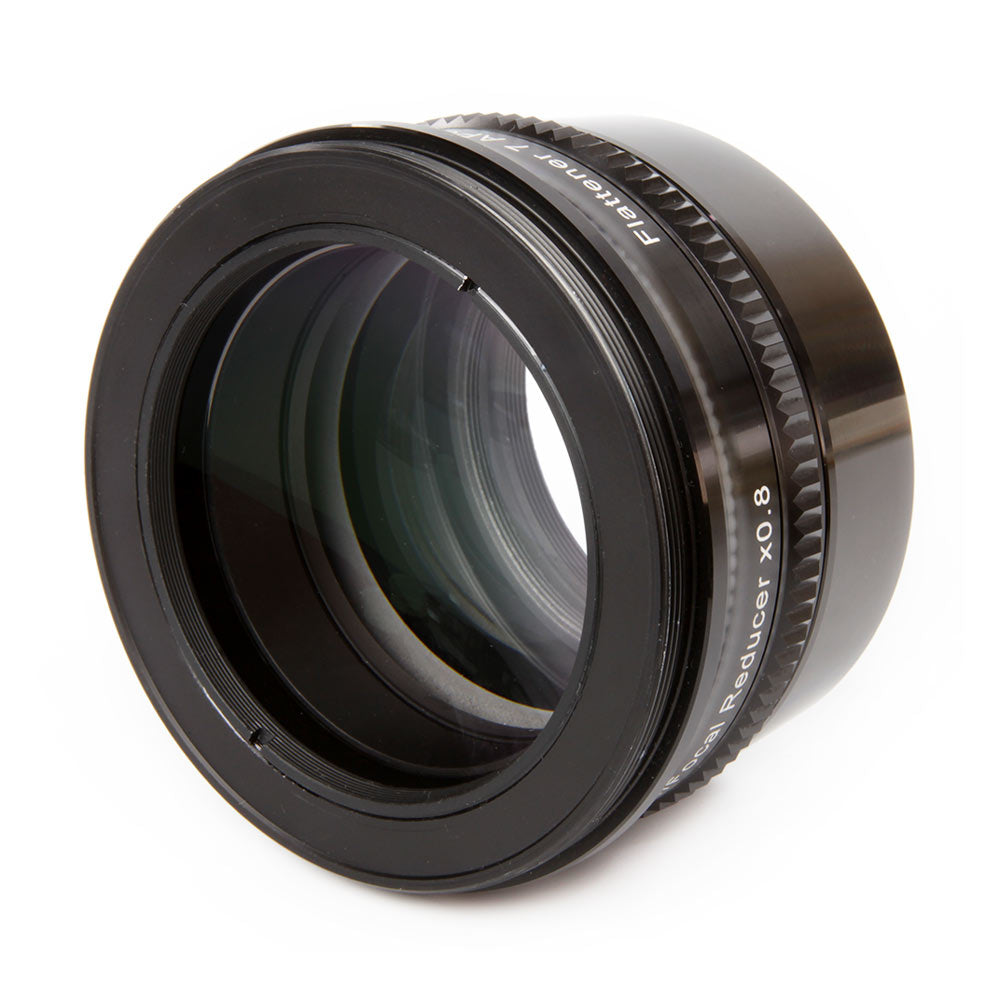

The William Optics Flat7A is an apochromatic triplet 0.8x flattener/reducer with STM-coated Ohara lenses. The 44.4mm image circle (43.4mm with the Z126) makes it a perfect match for full-frame sensors.

The Flat7A features adjustable spacing for use with a range of cameras and imaging systems. The Flat7A includes an M48 filter thread which will hold any standard 2" mounted filter.

Compatible with William Optics FLT 120 (with adapter) FLT132, FLT156, GT102GT153, & Z126 telescopes which have an M92 x 1 thread. On the camera side there is an M48 x 0.75 male thread, which will accept any wide T-ring.

Note: As this is an adjustable flattener, you must adjust the distance for your specific telescope. See the Instructions tab above.





Specifications



Reduction factor 0.8 x
Telescope connection M92 x 1
Camera connection M48 x 0.75
Image circle 44.4 mm (43.4mm with the Z126)
Backfocus distance 55mm from M48 thread (after adjustment - see Backfocus tab)
SKU WO-P-FLAT7A
Instructions



Note: Once you have unscrewed the rear adapter to the appropriate value in the table below, the remaining backfocus distance to make up will be 55mm from the rear M48 thread.

Distance adjustment needed for correct backfocus

FLT120 1.4 mm (with additional adapter)
FLT132 14.3 mm
FLT156 10.3 mm
GT102 15.6 mm
GT153 10.4 mm
Z126 12.76
