DELTA T HEATER FOR PLANEWAVE CDK
$1,399.00AUD
Unit price
/
Unavailable
SKU:
PW-600195
PlaneWave
DELTA T HEATER FOR PLANEWAVE CDK is backordered and will ship as soon as it is back in stock.

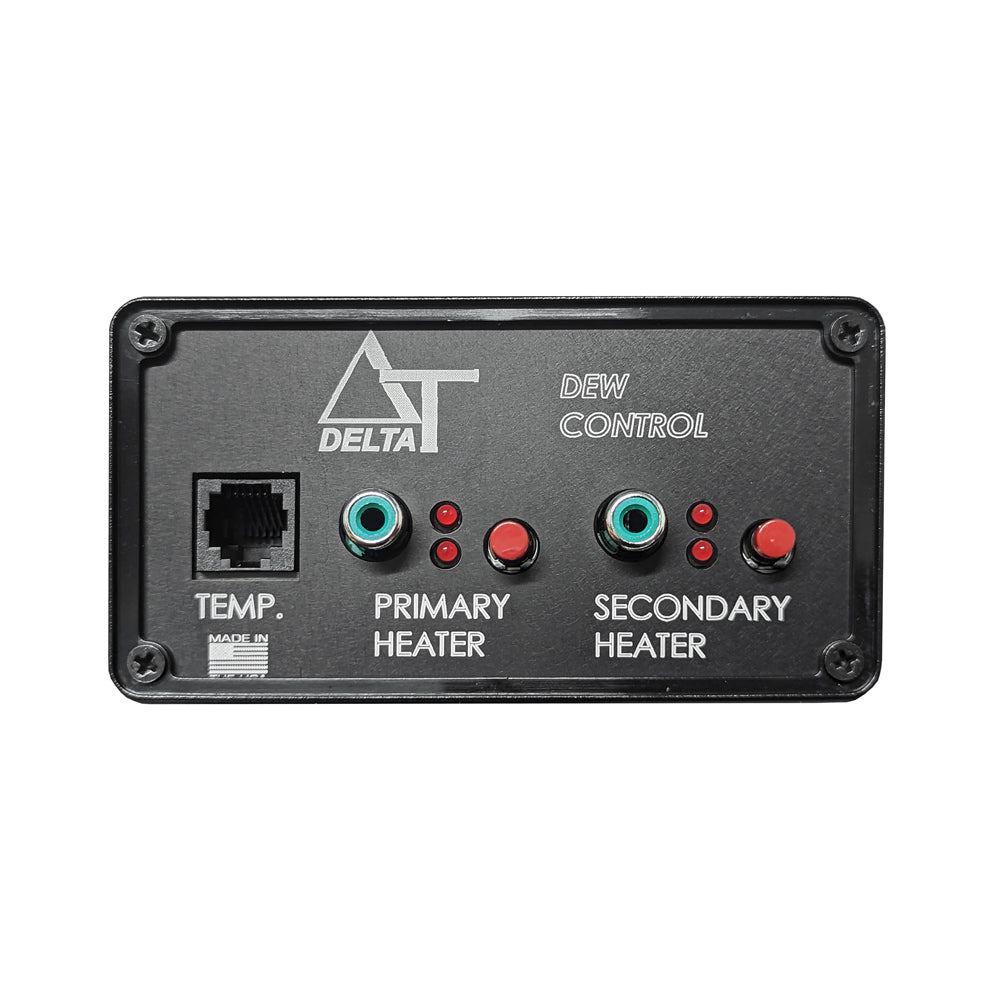

The Delta T controller is an optional accessory for dew prevention on CDK14 through CDK24 OTAs and the CDK700 system.
CDK14 to CDK24 and CDK700 telescopes come with primary and secondary mirror dew heating pads (CDK700 adds tertiary mirror heating), which are ready to accept the Delta T controller.
Controlled via PWI3 software for CDK14 through CDK24 OTAs (PWI2 for the CDK700).
With Delta T you can:
- Have Full Control of Primary and Secondary Heater using PlaneWave Interface (PWI 3) Software.
- Monitor current temperature of primary mirror, secondary mirror and surrounding ambient temperature.
- Automatically maintains mirror temperature set point as outside temperature changes.
- Displays real time graph of all temperature sensors.

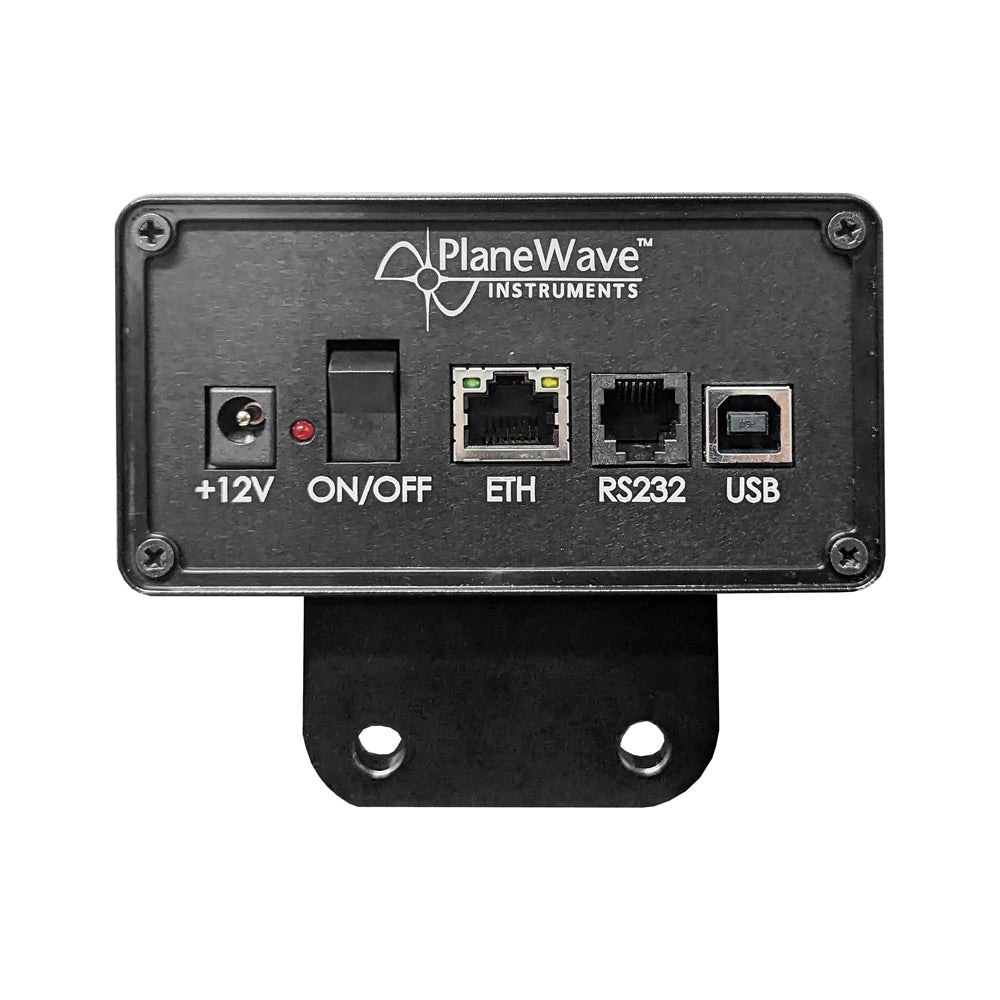

Ports
The Delta T controller has the following ports available:
- 1 x DC 12V 5.5 x 2.1 power input
- 1 x Ethernet for remote control using PWI to monitor temperature
- 1 x USB-B for remote control using PWI to monitor temperature
- 2 x RCA ports which need to be connected to the RCA ports of the telescope
- 1 x RJ port which needs to be connected to the TEMP port on the telescope to provide temperature information to the Delta T
- 1 x RS232 for firmware upgrades
Downloads
 Installation instructions
|
