Astronomy Specialist

CHROMA TECHNOLOGY SII FILTER

$1,049.00AUD
SKU: CT-27009-1.25M

Chroma

  • 3 nm


Size
Bandpass



Chroma narrowband filters are the highest performing filters on the market today. They are available with a range of bandpasses and sizes to suit any configuration where the finest image quality is of paramount importance.

The Chroma SII filter isolates the spectral emission of singly ionized sulfur atoms, also common in nebulae. Emission is at two lines occurring as a doublet, at 671.6 and 673.1 nm. This filter also separates sulfur emission from H-alpha emission (656.3nm).

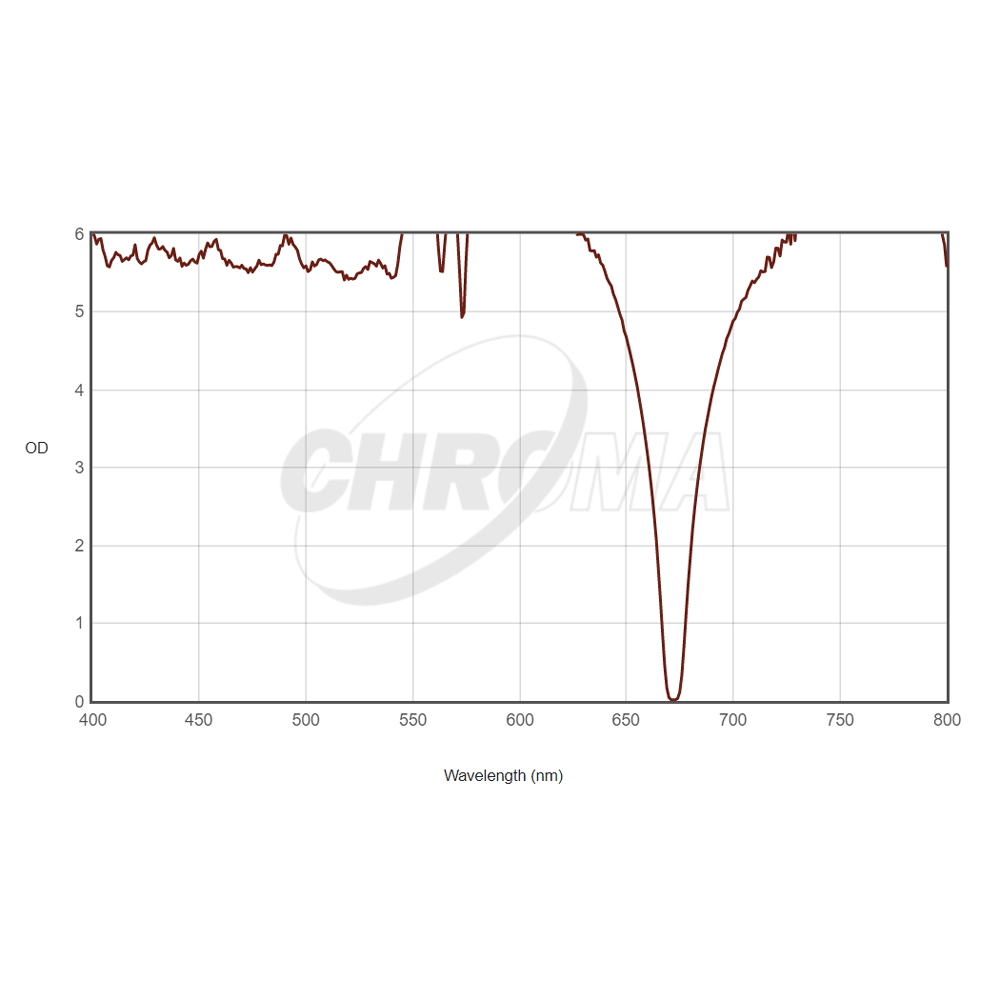

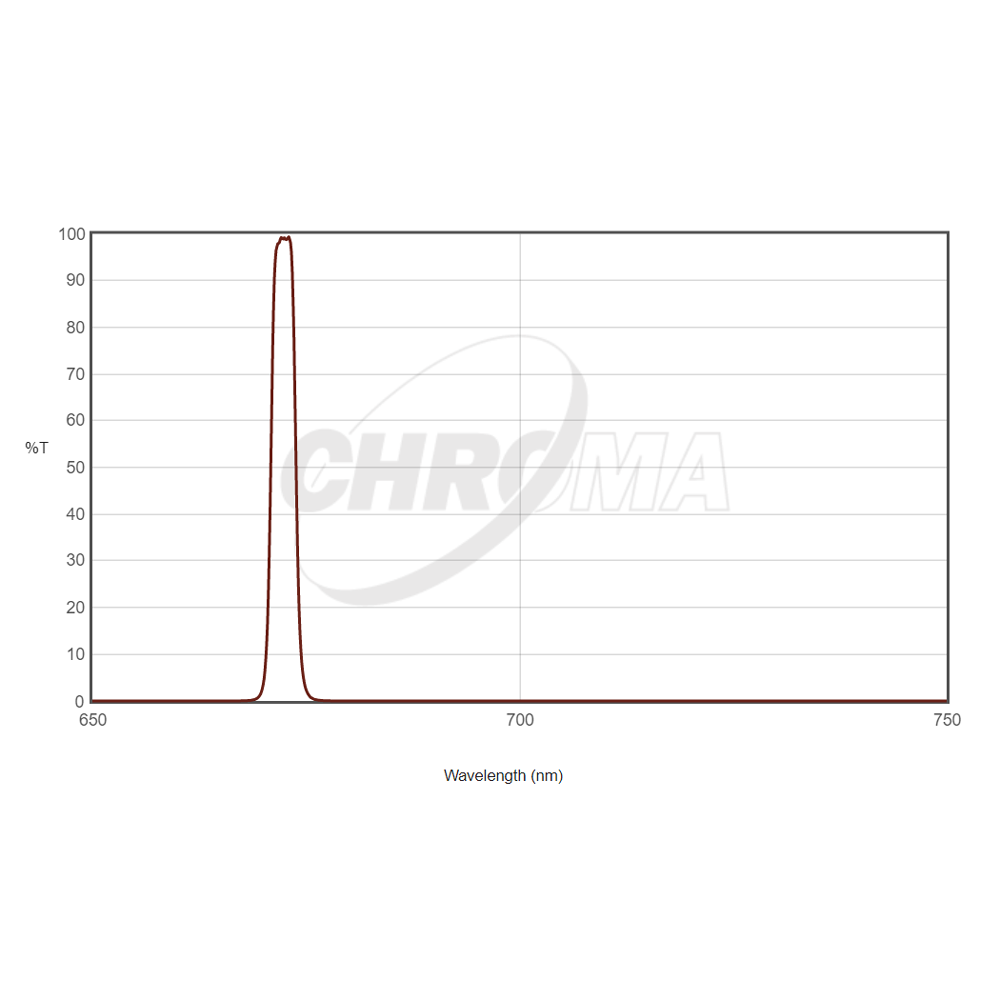

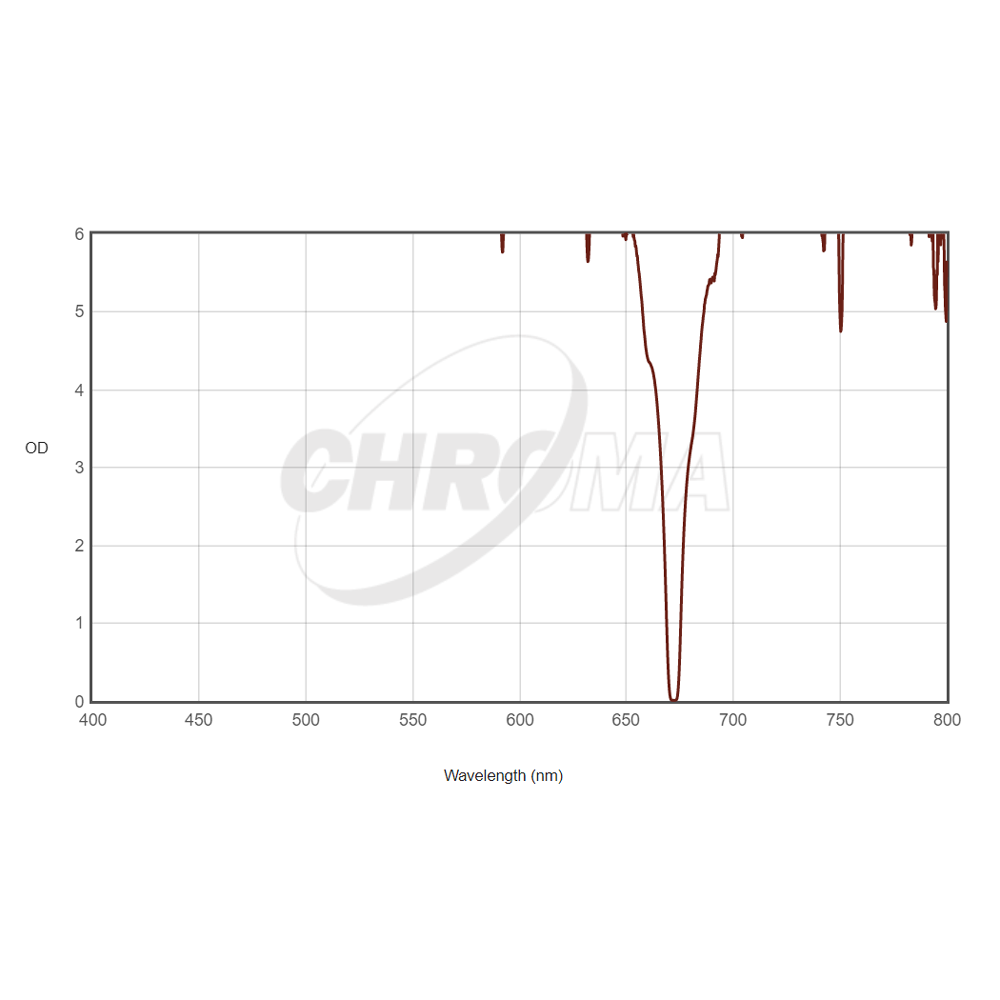

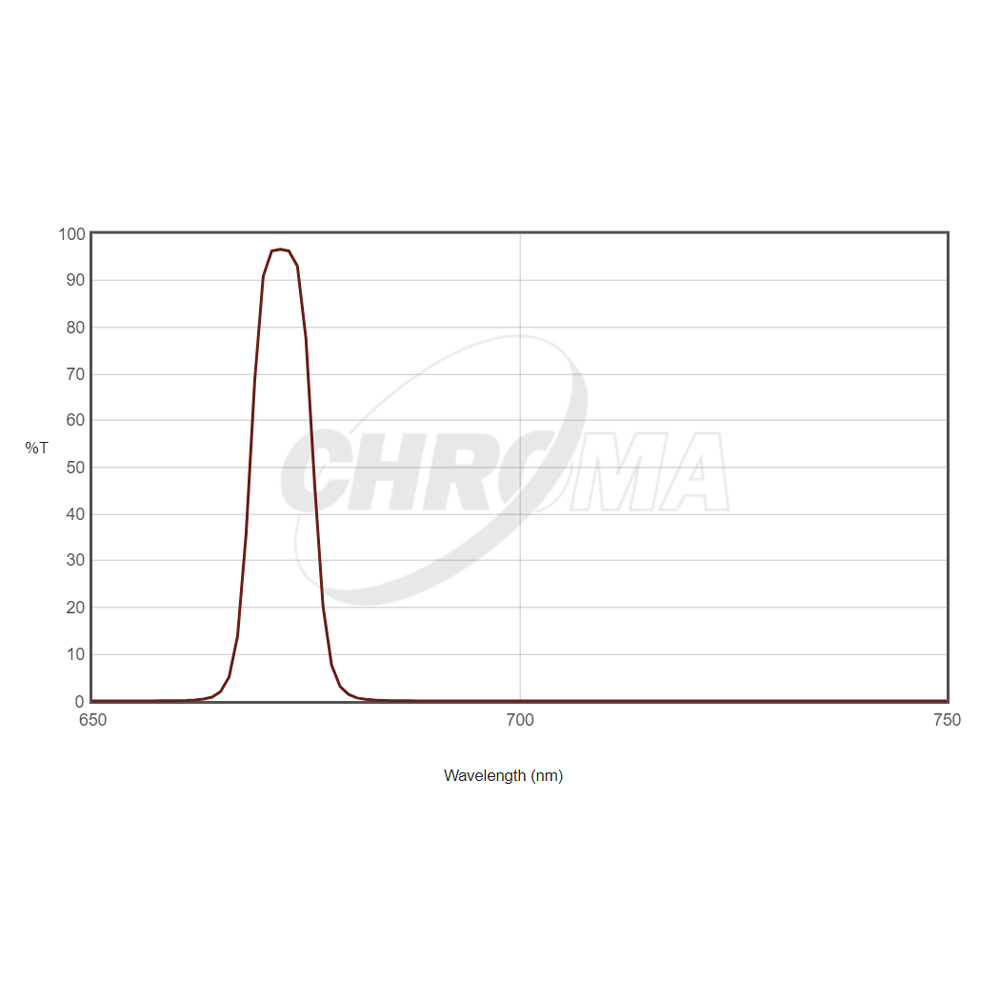

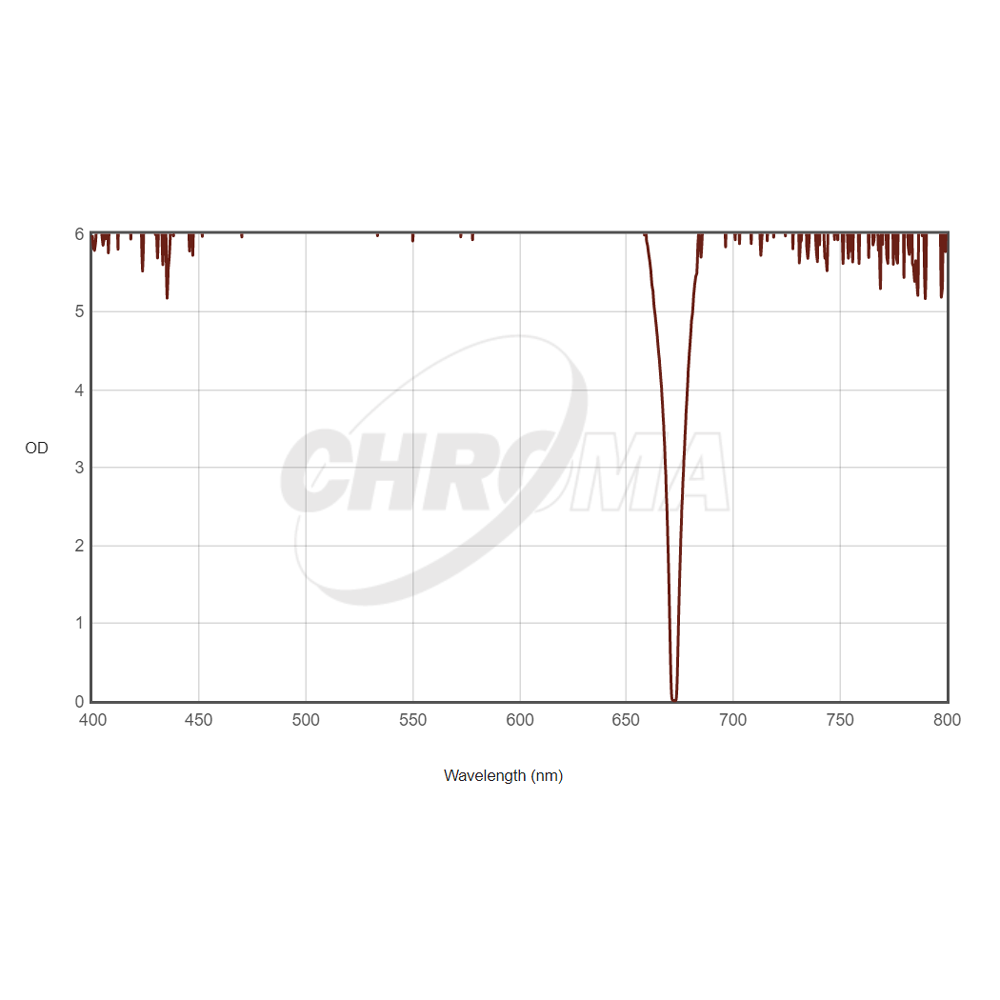

All transmission and blocking (OD) data are actual, measured spectra of representative production lots. Spectra varies slightly from lot to lot. Optical density values in excess of 6 may appear noisy because such evaluations push the resolution limit of low light level measurements.

Gallery





Cat's Paw nebula with Chroma 3nm Ha, OIII & SII filters by Vijay Ladwa.

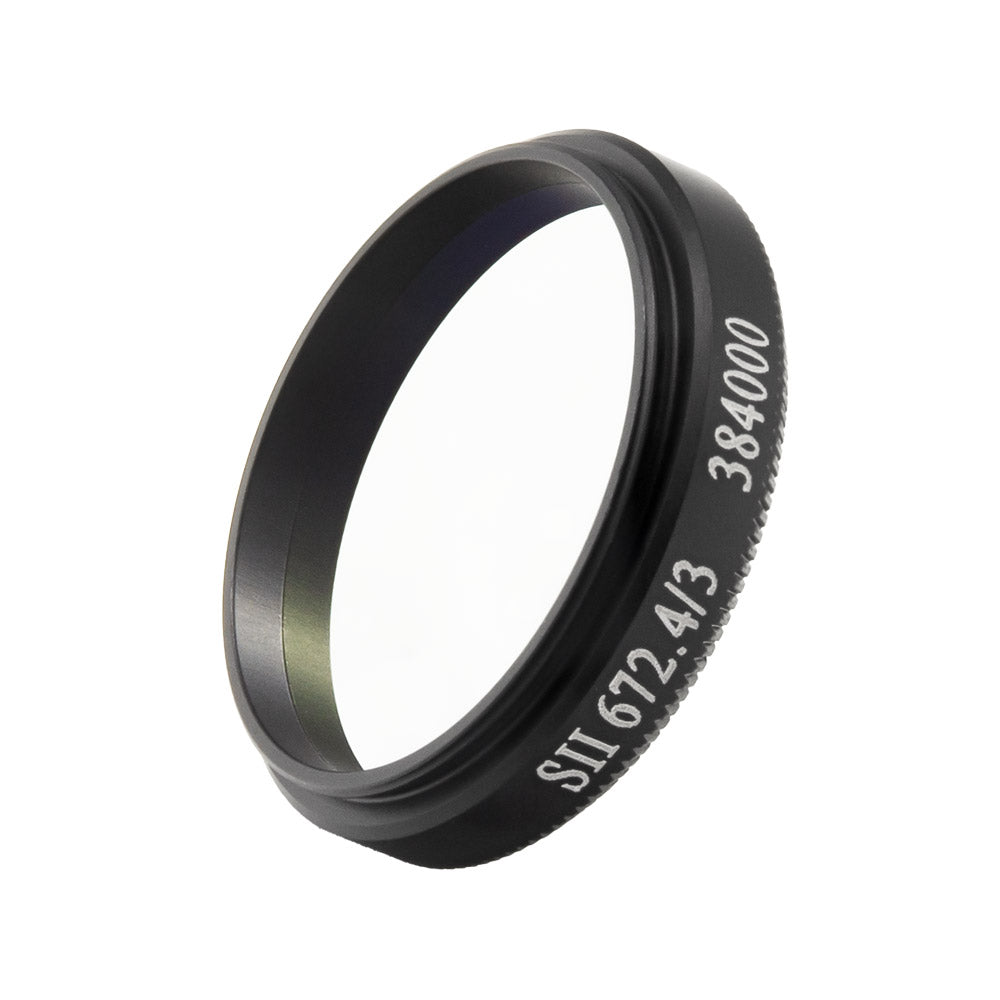

CHROMA TECHNOLOGY SII 3nm FILTER.

CHROMA TECHNOLOGY SII FILTER

From $499.00AUD

Size

  • 1.25"
  • 2"
  • 31mm
  • 36mm
  • 50mm round
  • 50mm square

Bandpass

  • 3nm
  • 5nm
  • 8nm

Optical design

Image circle

Focal ratio

Aperture

Focal length

Optical thickness

Threads

Cooled

Colour or Mono

Pixel size

Sensor dimensions

Resolution

Sensor diagonal

Quantum efficiency

Read noise

Fullwell capacity

Bit depth

FPS

Camera backfocus

Filter size

1.25", 2", 31 mm, 36 mm, 50 mm round, 50 mm x 50 mm square

Filter size

1.25", 2", 31 mm, 36 mm, 50 mm round, 50 mm x 50 mm square

Bandpass (FWHM)

3 nm

Bandpass (FWHM)

3 nm

Glass thickness

3 mm

Mount type

Payload capacity

Latitude range

Dovetail saddle

Slew speed

Encoders

Periodic error correction

Counterweight shaft

Azimuth adjustment range

Internal diameter

Illuminated diameter

Compatible telescope external diameter

Weight

Length

Width

Height

View product
