Astronomy Specialist

CHROMA TECHNOLOGY OIII FILTER

$1,049.00AUD
SKU: CT-27006-1.25M

Chroma

  • 3 nm


Size
Bandpass



Chroma narrowband filters are the highest performing filters on the market today. They are available with a range of bandpasses and sizes to suit any configuration where the finest image quality is of paramount importance.

The Chroma OIII filter isolates the 500.7nm primary emission line of doubly ionized oxygen. After H-alpha, this is the next most common emission when imaging nebulae.

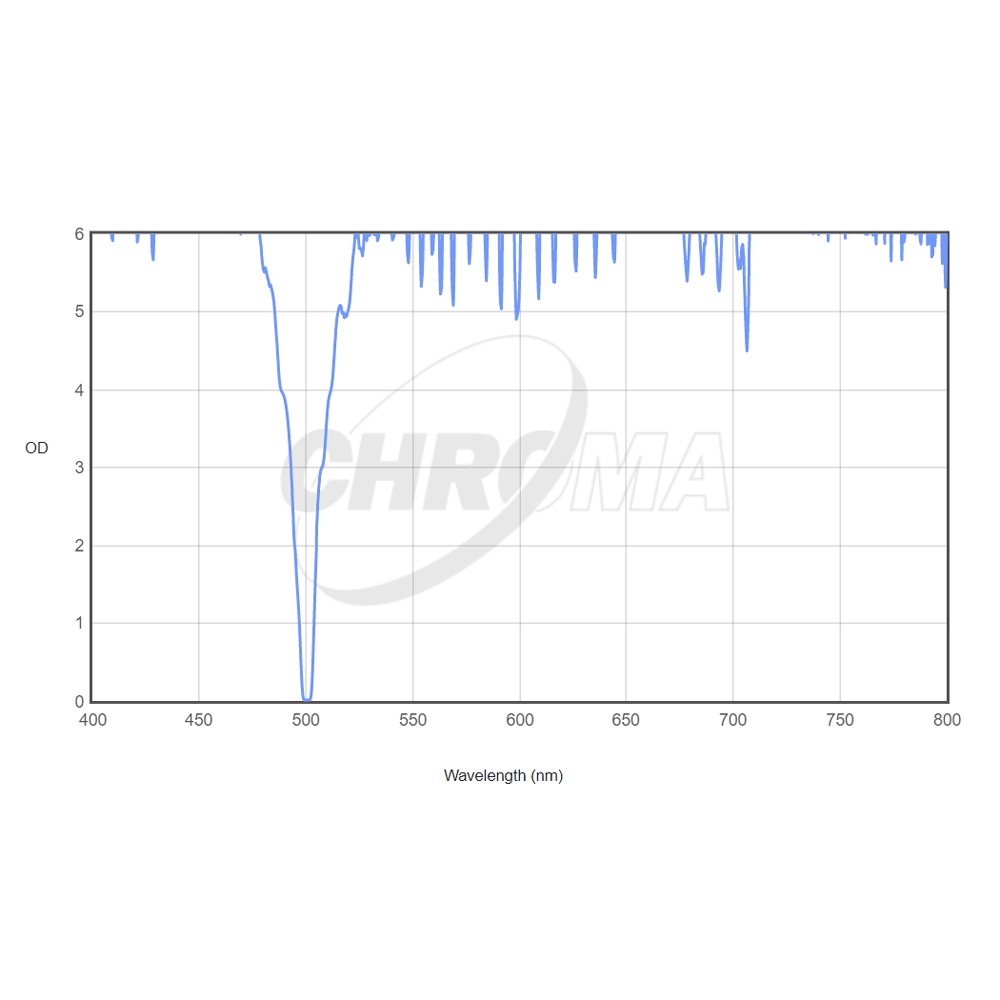

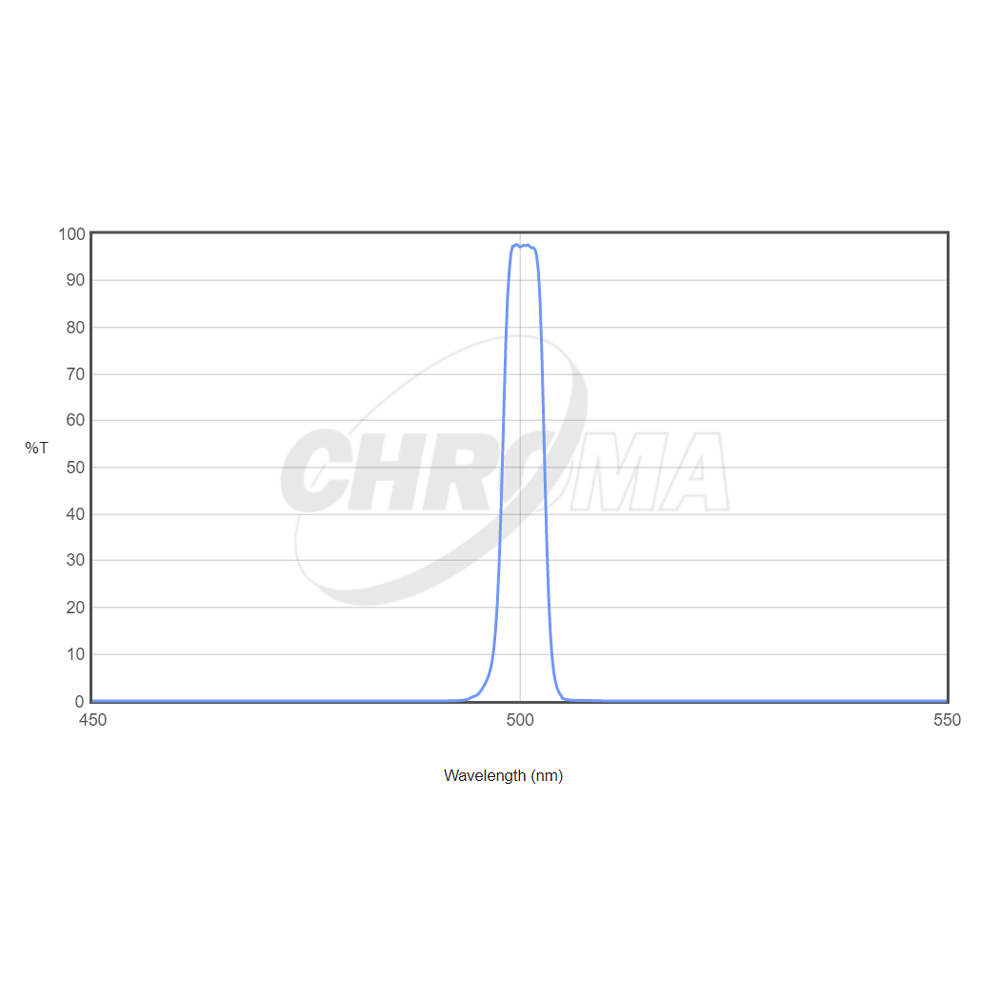

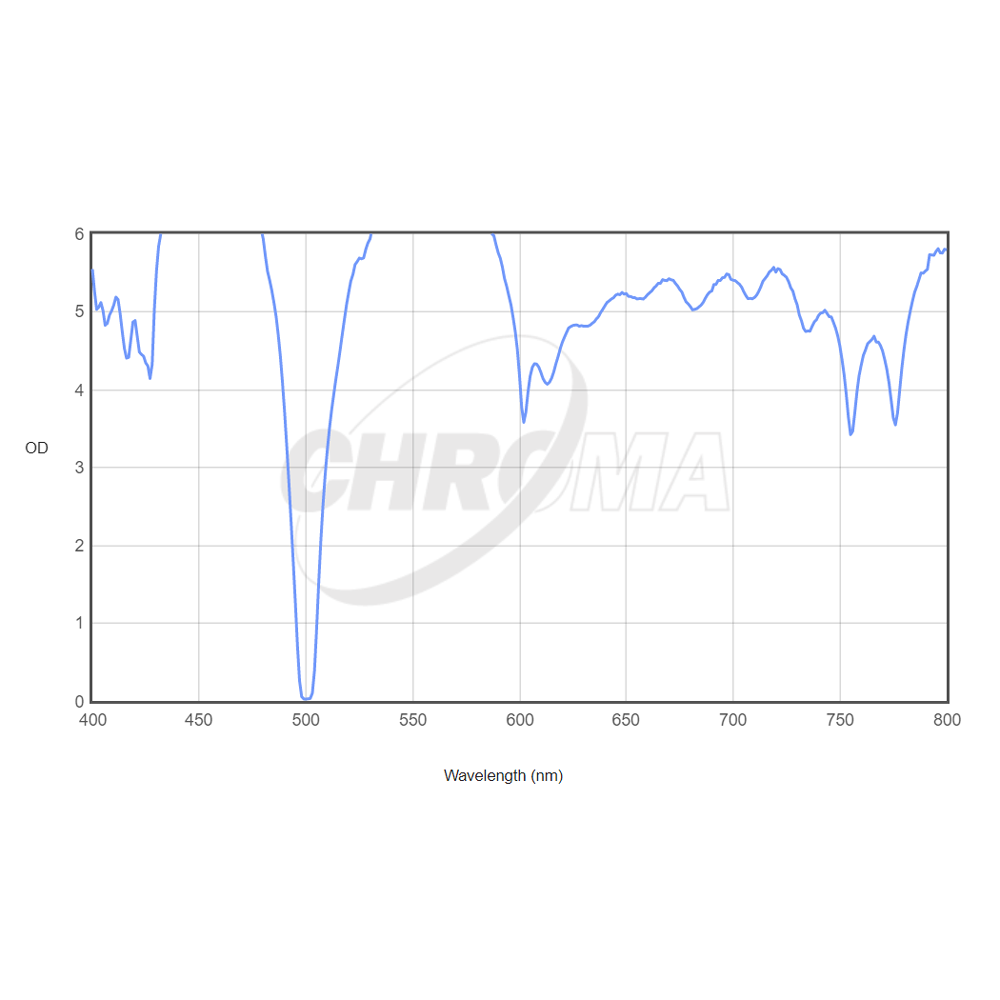

All transmission and blocking (OD) data are actual, measured spectra of representative production lots. Spectra varies slightly from lot to lot. Optical density values in excess of 6 may appear noisy because such evaluations push the resolution limit of low light level measurements.

Gallery





Cat's Paw nebula with Chroma 3nm Ha, OIII & SII filters by Vijay Ladwa.

CHROMA TECHNOLOGY OIII 3nm FILTER.

CHROMA TECHNOLOGY OIII FILTER

From $499.00AUD

Size

  • 1.25"
  • 2"
  • 31mm
  • 36mm
  • 50mm round
  • 50mm square

Bandpass

  • 3nm
  • 5nm
  • 8nm

Optical design

Image circle

Focal ratio

Aperture

Focal length

Optical thickness

Threads

Cooled

Colour or Mono

Pixel size

Sensor dimensions

Resolution

Sensor diagonal

Quantum efficiency

Read noise

Fullwell capacity

Bit depth

FPS

Camera backfocus

Filter size

1.25", 2", 31 mm, 36 mm, 50 mm round, 50 mm x 50 mm square

Filter size

1.25", 2", 31 mm, 36 mm, 50 mm round, 50 mm x 50 mm square

Bandpass (FWHM)

3 nm

Bandpass (FWHM)

3 nm

Glass thickness

3 mm
