CELESTRON ULTIMA EDGE EYEPIECE 1.25" 24mm

$395.00AUD
SKU: CE-93453

Celestron

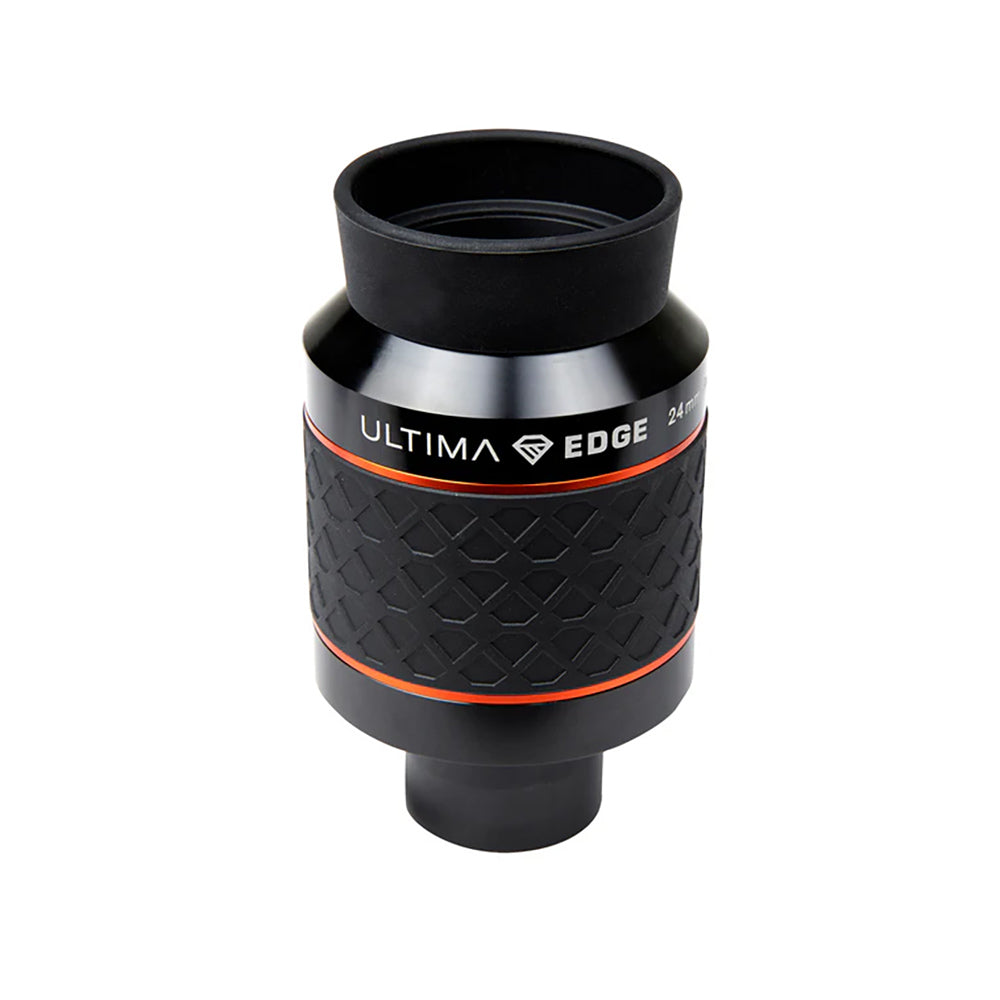

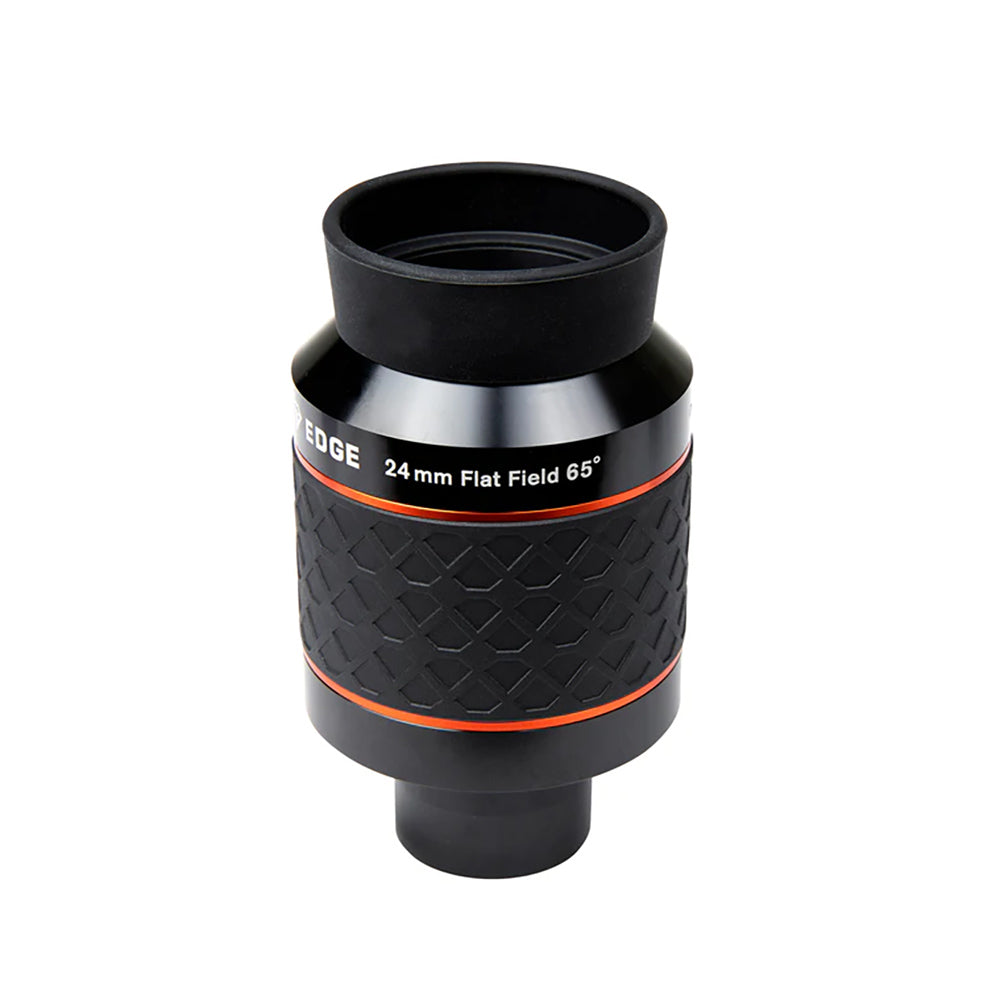

The Celestron Ultima Edge 24mm 1.25" eyepiece features a flat-field 8-element lens design which provides ultra-sharp, crisp images all the way to the edge of the field of view.

The Ultima Edge 24mm has a generous 65° apparent field of view, perfect for viewing planets, stars and the Moon’s surface. This eyepiece provides medium power magnification, perfect for viewing the Lunar surface and most deep sky objects.

The 24mm Ultima Edge eyepiece’s main housing is machined from high grade aluminium with a black anodized outer surface. Its 1.25" mounting barrel is internally threaded to accept standard 1.25" filters and adapters. It is compatible with 1.25” star diagonals and focusers.

On the exterior of the eyepiece, you will find a uniquely designed, moulded rubber grip ring for non-slip handling during observing sessions, even if you have gloves on.

Viewing through the 24mm Ultima Edge eyepiece is comfortable for both eyeglass wearers and non-eyeglass wearers alike, thanks to the fold-down rubber eyecups and long eye relief of 29mm.

Note: the Ultima Edge 24mm is not a parfocal eyepiece. Ultima Edge eyepieces are only parfocal within the line and do not maintain focus when swapped with parfocal eyepieces from other brands or series.

Specifications



Focal length
24 mm
Optical design
Proprietary
Barrel
1.25"
Lens elements / groups
8 / 5
Apparent field of view 65°
Eye relief 29 mm
Field stop diameter 30.2 mm
Filter threads Threaded for 1.25" filters
Height 104 mm
Diameter 60 mm
Weight 349.3 g
SKU CE-93453
