Astronomy Specialist

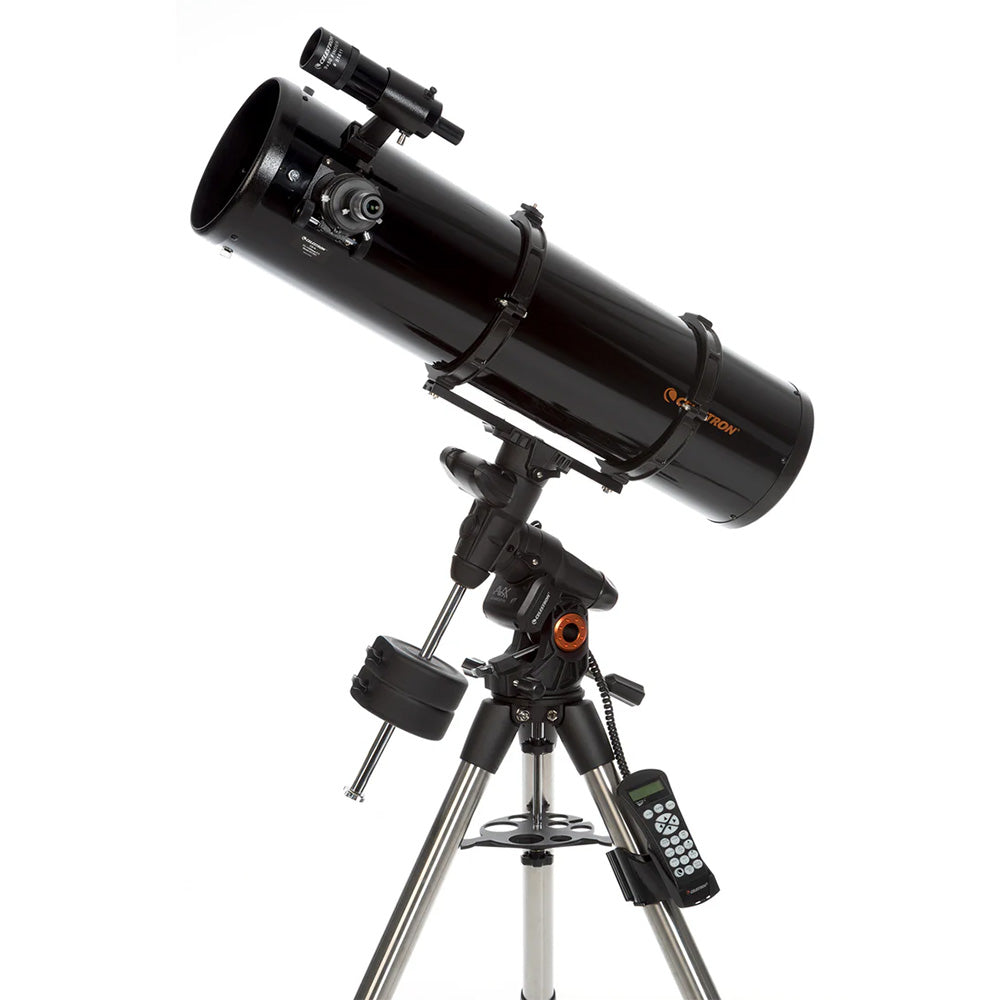

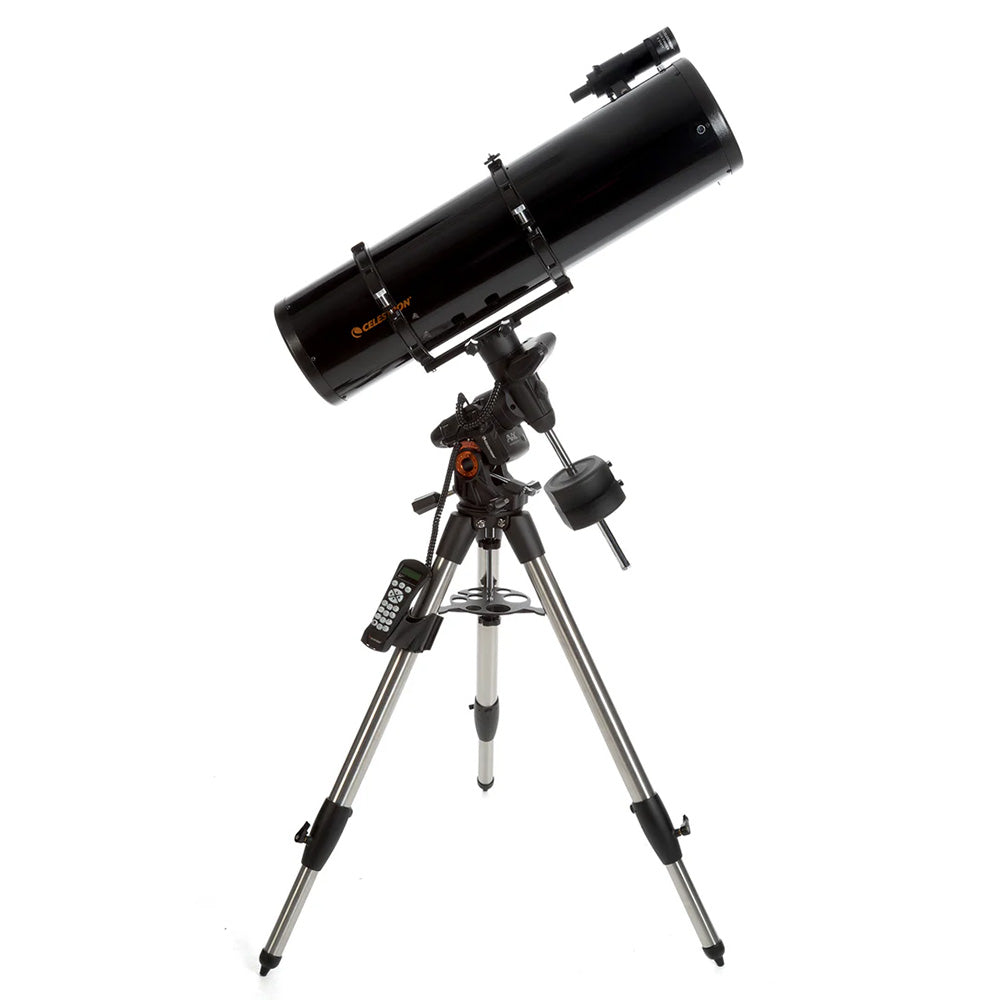

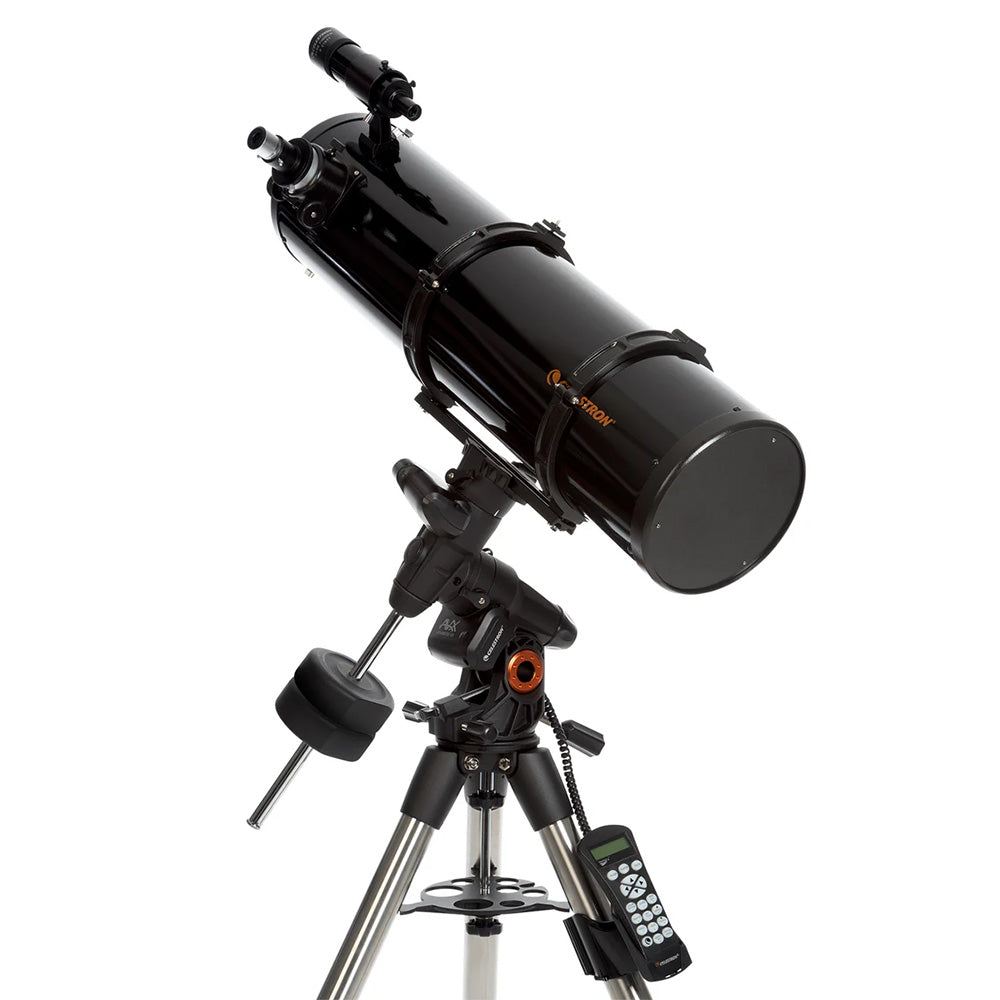

CELESTRON ADVANCED VX 8" NEWTONIAN

$1,999.00AUD
SKU: CE-32062

Celestron

Equatorial

Payload: 13.6 kg

Encoders: None

Newtonian

31.29 kg




The Celestron Advanced VX 8" Newtonian bundle includes the portable AVX mount & tripod plus a 200mm Newtonian telescope at an extremely affordable price.

The Advanced VX 8" Newtonian combines the excellent light gathering power and resolution of a large aperture reflector-type telescope with the portability and stability provided by the AVX mount. The Newtonian optical design is ideal for visual observing, offering the best performance to price ratio of all telescope designs. The parabolic primary mirror minimizes spherical aberration, resulting in sharper stars to the edge of the visual field.

The Advanced VX mount is designed to provide superior performance for smaller telescopes while taking advantage of Celestron’s most advanced technologies: All-Star Polar Alignment, Celestron PWI telescope control software, SkyAlign, and permanently programmable periodic error correction (PPEC).

If you’re an experienced imager, you’ll love taking this portable mount to a dark sky site and enjoying all the conveniences of a larger observatory mount. Or, if you’re new to imaging, Advanced VX will help you get started with the hobby and keep up with your needs for years to come.

The NexStar+ hand control gives you instant access to all the functions your mount has to offer and has a built-in database of 40,000 objects. With automatic slewing and menu descriptions, any level of astronomer can master this mount in just a few observing sessions. The Advanced VX also has an impressive tripod for its class with a 2” diameter steel tripod legs providing an extra-wide stance for improved stability.

Specifications



Optical design Newtonian reflector
Aperture 200 mm (8")
Focal length 1000 mm
Focal ratio f/5
Resolving power 0.58 arc seconds
Highest useful magnification 472 x
Light gathering power 816 times the human eye
Secondary obstruction diameter 56 mm (28% of aperture diameter)
Limiting stellar magnitude 14
Optical coatings Fully coated
Mount attachment CG-5 Dovetail
Tube length 914 mm
Tube weight 9.98 kg
Tube diameter 235 mm



Mount specifications



Mount type Computerized equatorial
Instrument load capacity 13.6 kg
Height adjustment range 1118 mm - 1626 mm (44" – 64")
Tripod leg diameter 50.8 mm (2") Stainless Steel
Mount head weight 7.71 kg
Tripod weight 8.16 kg
Slew speed 9 slew speeds - max speed 4°/second
Tracking rates Sidereal, Solar and Lunar
Tracking modes EQ North and EQ South
GPS N/A
Dovetail compatibility Dual CG-5 & CGE saddle plate
Auxiliary ports 3 AUX Ports (1 Hand Control and 2 AUX Ports)
Autoguide port Yes
USB port Yes, input on hand control
Power requirement 12V DC 3.5A (tip positive)
Motor drive DC servo motors
Alignment procedures 2-Star Align, 1-Star Align, Solar System Align, Last Alignment, Quick Align
Periodic error correction Yes
Computerized hand control 2 line x 18 character backlit Liquid Crystal Display, 19 LED backlit buttons, USB 2.0 Port for PC connection
NexStar+ database Over 40,000 including 220 of the best deep sky and solar system objects
Software Celestron Starry Night Special Edition Software and SkyPortal App
Total telescope kit weight 31.29 kg
Items included



  • Optical tube
  • Mount and tripod
  • Accessory tray
  • NexStar+ hand controller with holster
  • 9 x 50 finderscope
  • 20mm eyepiece
  • 2 x 12lb counterweights
  • Instruction manual
  • DC power cable (Celestron part #18769)

CELESTRON ADVANCED VX 8" NEWTONIAN

$1,999.00AUD

Optical design

Newtonian

Image circle

Focal ratio

f/5

Aperture

200 mm

Focal length

1000 mm

Optical thickness

Threads

1.25" barrel

Cooled

Colour or Mono

Pixel size

Sensor dimensions

Resolution

Sensor diagonal

Quantum efficiency

Read noise

Fullwell capacity

Bit depth

FPS

Camera backfocus

Filter size

Filter size

Bandpass (FWHM)

Bandpass (FWHM)

Glass thickness

Mount type

Equatorial

Payload capacity

Payload: 13.6 kg

Latitude range

7º - 77º

Dovetail saddle

CG-5/CGE

Slew speed

4º/s max

Encoders

Encoders: None

Periodic error correction

Permanent PEC

Counterweight shaft

19 mm

Azimuth adjustment range

Internal diameter

Illuminated diameter

Compatible telescope external diameter

Weight

31.29 kg

Length

Width

Height
