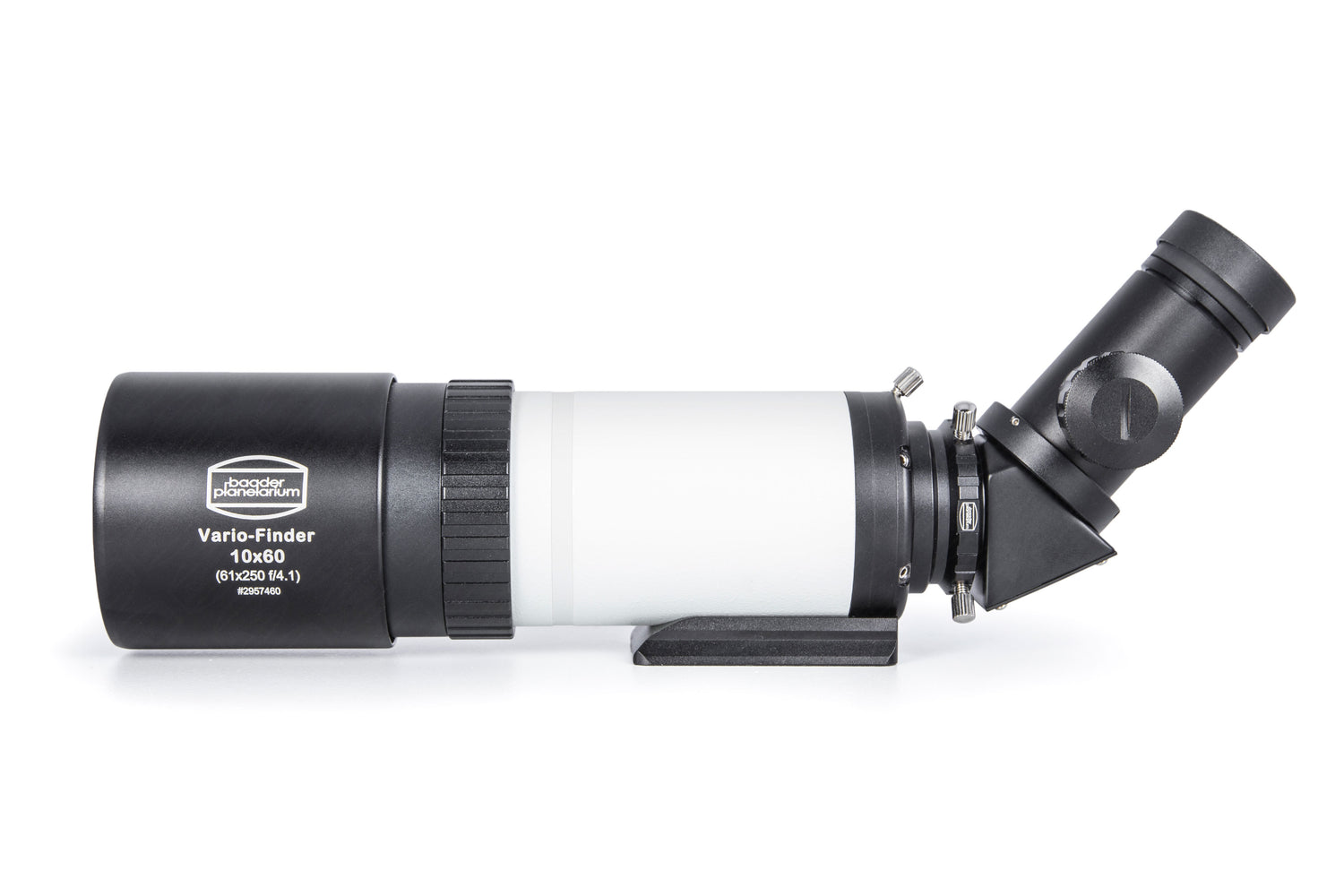

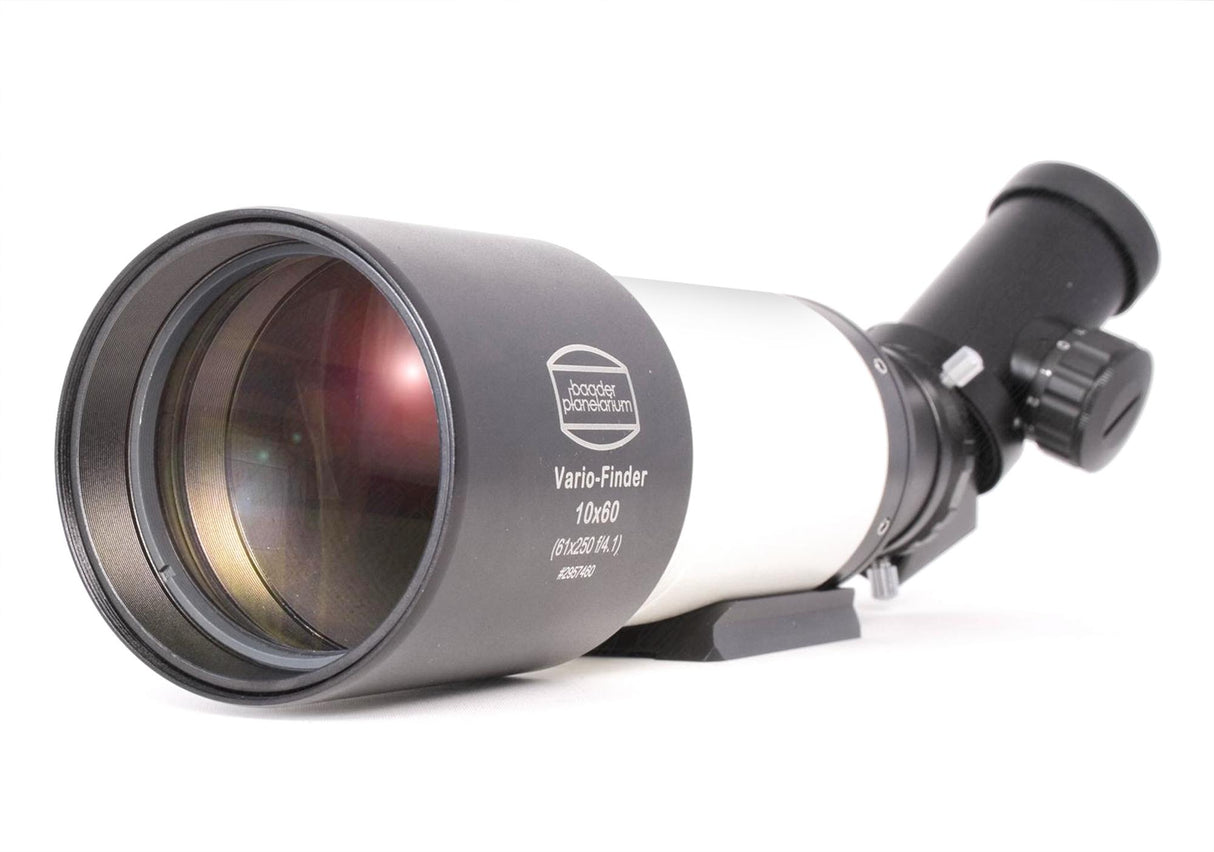

BAADER MULTI-PURPOSE VARIO-FINDER 10X60

The Baader Multi-Purpose Vario-Finder 10x60 is a compact, lightweight instrument with a doublet objective Carl Zeiss lens and a focal length of 250mm. With 12mm coarse focus adjustment, 35mm travel sliding focuser drawtube. Fine adjustment of the focus is also possible by moving the objective lens back and forth by 12 mm. This is an excellent choice for high-end finderscope, guide telescope, spotting scope, travel companion astro-telescope.

The technical data of the Vario Finder:

Baader Planetarium Vario Specifications:

• Optical design based on Carl Zeiss C Lens, Optics tested to provide sharp images at up to 120X
• 250 mm Focal Length (f/4 focal ratio)
• Baader Phantom-Group Multicoatings
• 1.25" eyepiece holder with non-marring internal brass clamp ring and multiple knurled thumbscrews
• 45° Erect image star diagonal (1.25"), accepts T-2 threaded accessories
• 25 mm Dual-crosshair measuring reticle Illuminated eyepiece (variable brightness)
• Objective housing permits 12 mm of coarse focus adjustment, w/ knurled lock ring

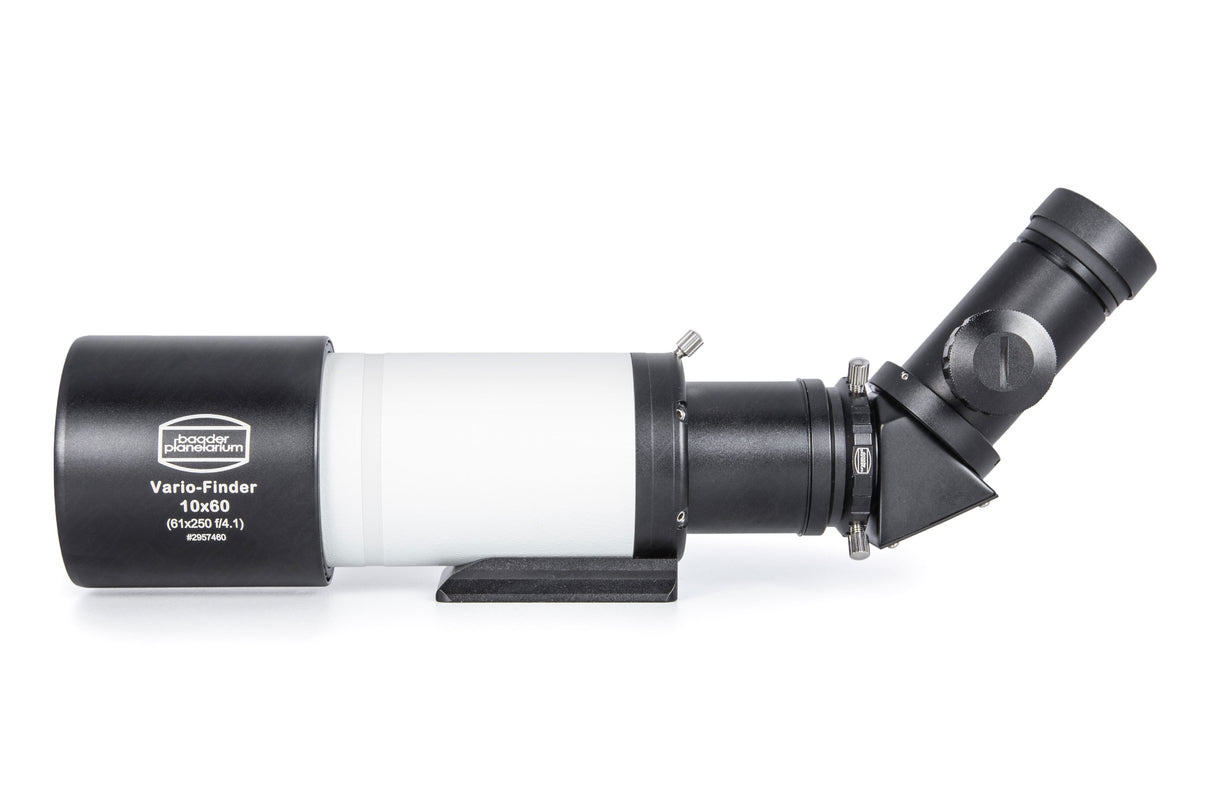

• Sliding focuser drawtube with 35 mm travel and multiple lock screws for rigidity (guidescope use)
• Integrated/Removable Dovetail Bar (EQ/Vixen), with 1/4-20 tripod thread
• T-thread Modularity (compatible with Baader Astro T-2 Accessories)

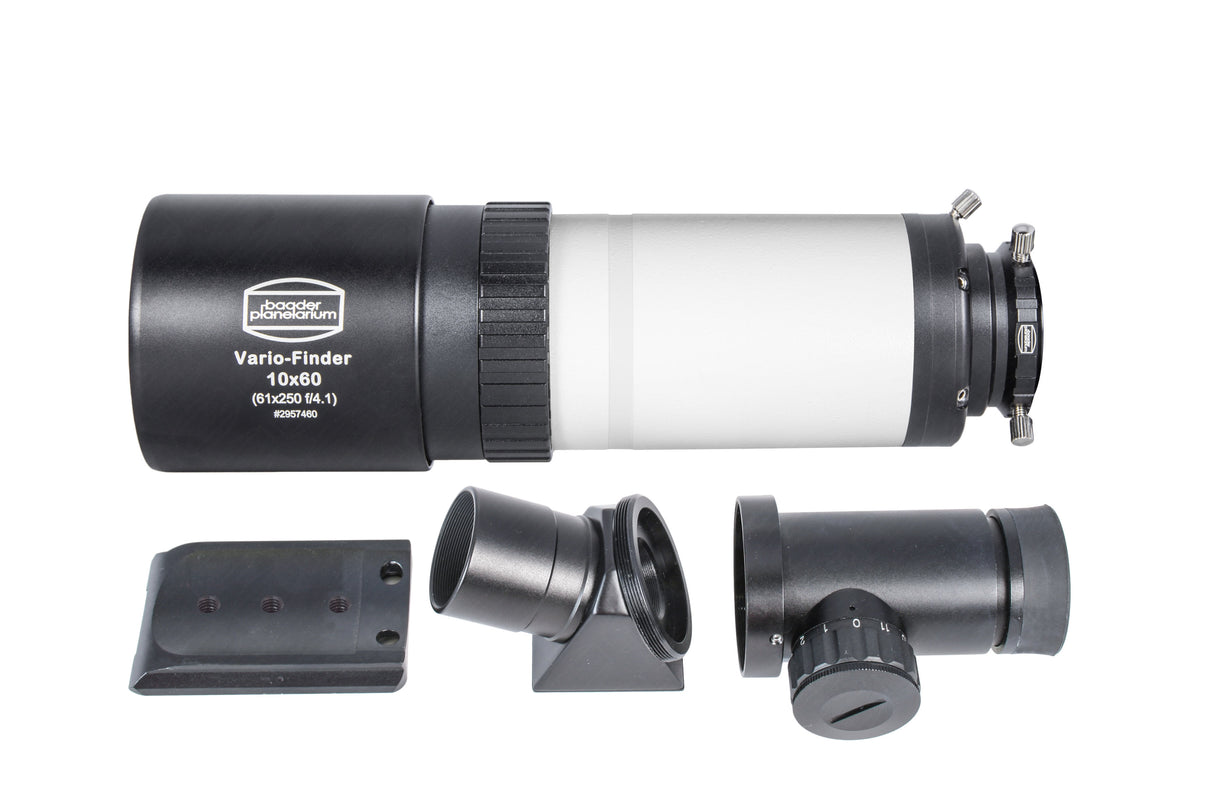

Item included:

• BAADER MultiPurpose Vario Finder 10 x 60mm
• 45° AMICI Prism for erect image
• 25mm eyepiece with illuminated measuring recticle
• EQ dovetail with ¼" photo thread

Download Manual:

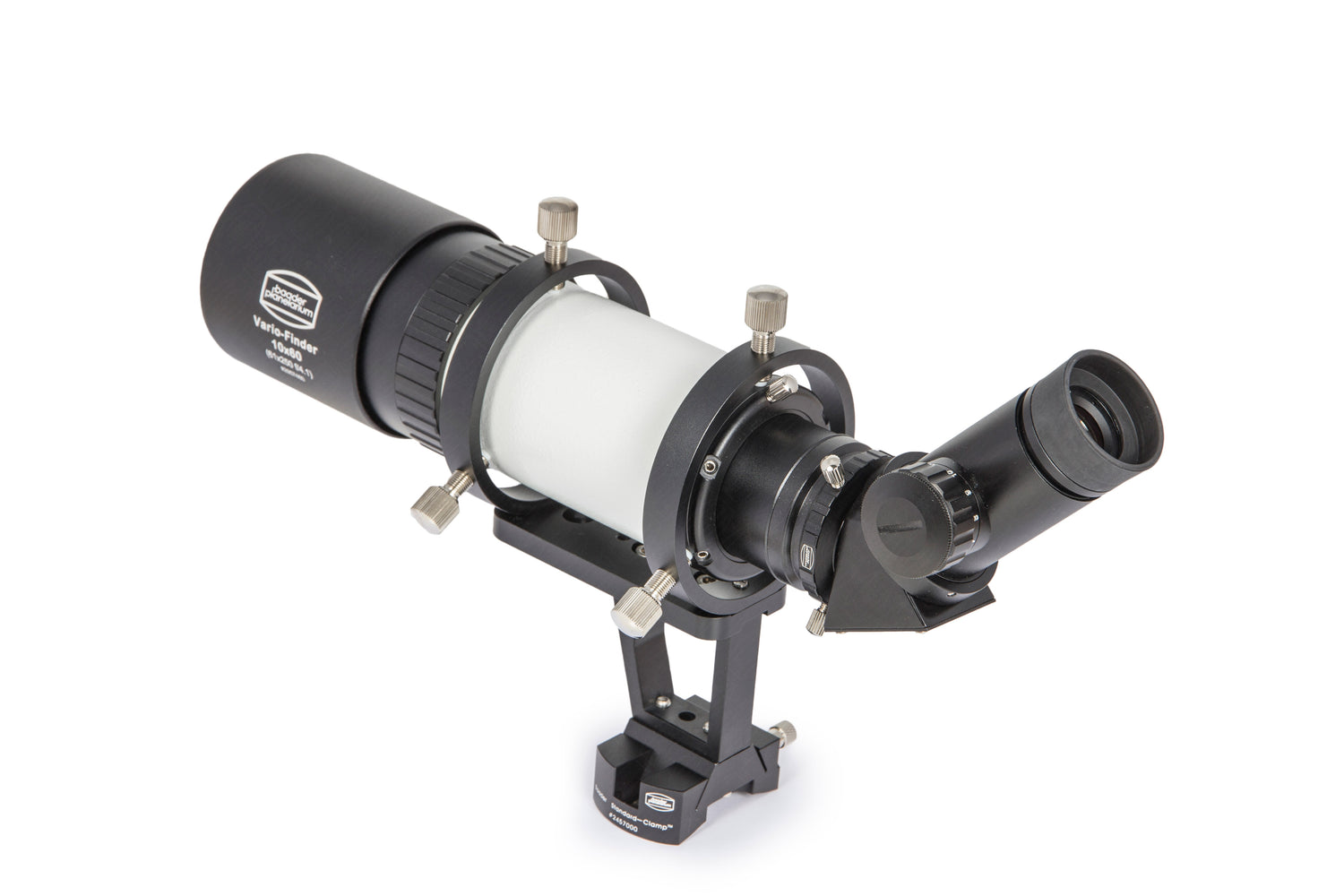

Possible applications of the BAADER Multi Purpose Vario Finder:

Guide camera not included.
