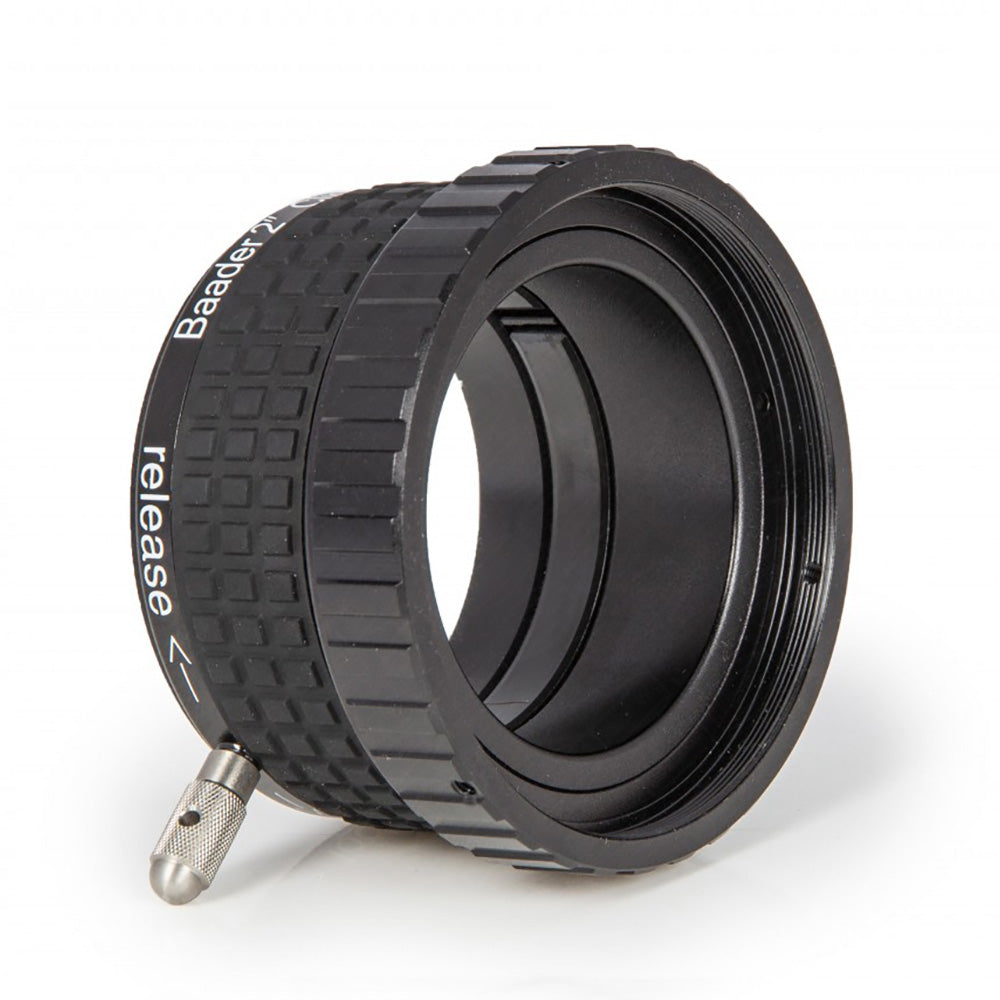

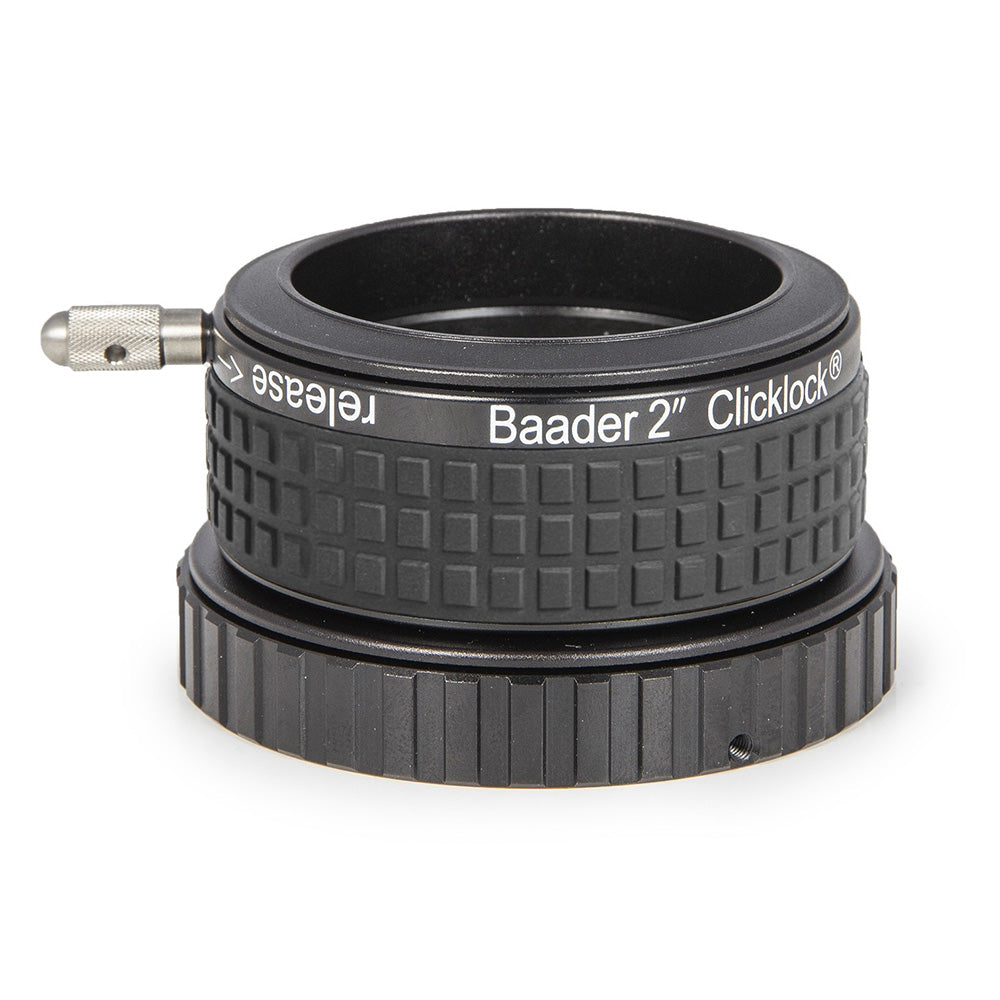

BAADER 2" CLICKLOCK M68 x 0.75 FEMALE
Baader Planetarium
BAADER 2" CLICKLOCK M68 x 0.75 FEMALE is backordered and will ship as soon as it is back in stock.
The Baader ClickLock© System is a precise accessory clamp without locking screws. The eyepiece, diagonal or accessory used is held without the inconvenience of the thumbs screws which causes tilt and therefore changes the collimation of the optical system.
This model fits on Bresser, Omegon and Explore Scientific Hexafoc / Hex focusers which feature M68 x 0.75 male threads and holds 2" accessories. It is made up of two pieces, the M68 x 1 Clicklock #BA2956268 and M68 x 1 to M68 x 0.75 Adapter #BA2458236.
Standard eyepiece holders use thumb screws to hold the accessory in place. While tightening, these screws turn the accessory and therefore alter the collimation. You can notice this effect with a laser collimator: the more you tighten the thumb screws, the more the laser dot will move across the mirror. If you repeat this test, the laser dot will move to another position so the collimation can never be precise.
The Baader ClickLock secures your 2" accessories using its clamping system that holds the part at three sides, thus not introduces tilting movements.
Make sure you double check the optical length of the Baader Clicklock before you purchase, in case the extra space puts the focal point to far out. This is especially important for Newtonians where space is limited.
The Baader ClickLock© System at a glance:
- A 20° rotation of the external collar is sufficient to securely hold 2" accessories while staying safe and firm.
- The compression ring holds your most expensive accessory without leaving scratches and marks on the barrels.
- The locking lever position can be set with 6 screws in different positions making the clamp usable for both right-handers and left-handers.
Specifications
Connection (telescope side) |
M68 x 0.75 female |
---|---|
Connection (camera side) | 2" |
Optical thickness | 37 mm |
Weight | 180 g |
SKU | BA2956269 |
