BAADER 2" CLICKLOCK DIELECTRIC DIAGONAL
Baader Planetarium
Mirror diagonal
0.48 kg
BAADER 2" CLICKLOCK DIELECTRIC DIAGONAL is backordered and will ship as soon as it is back in stock.

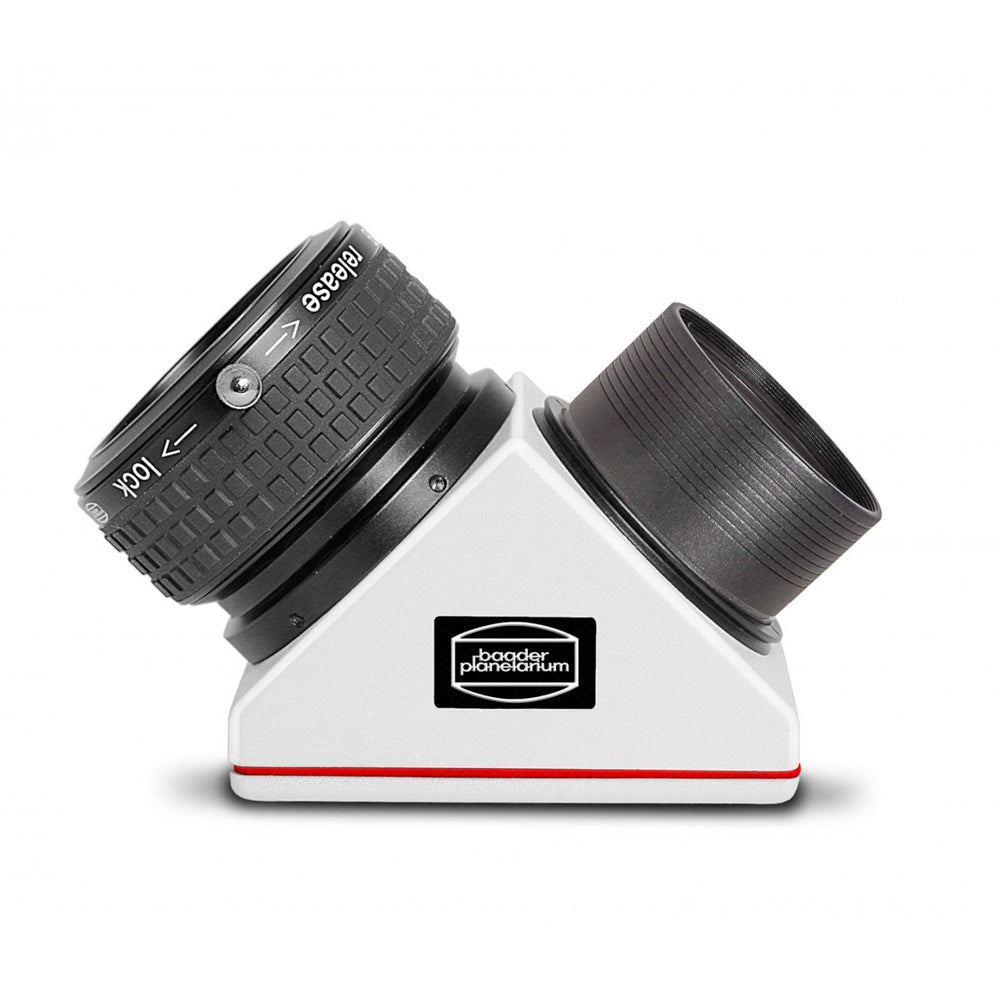

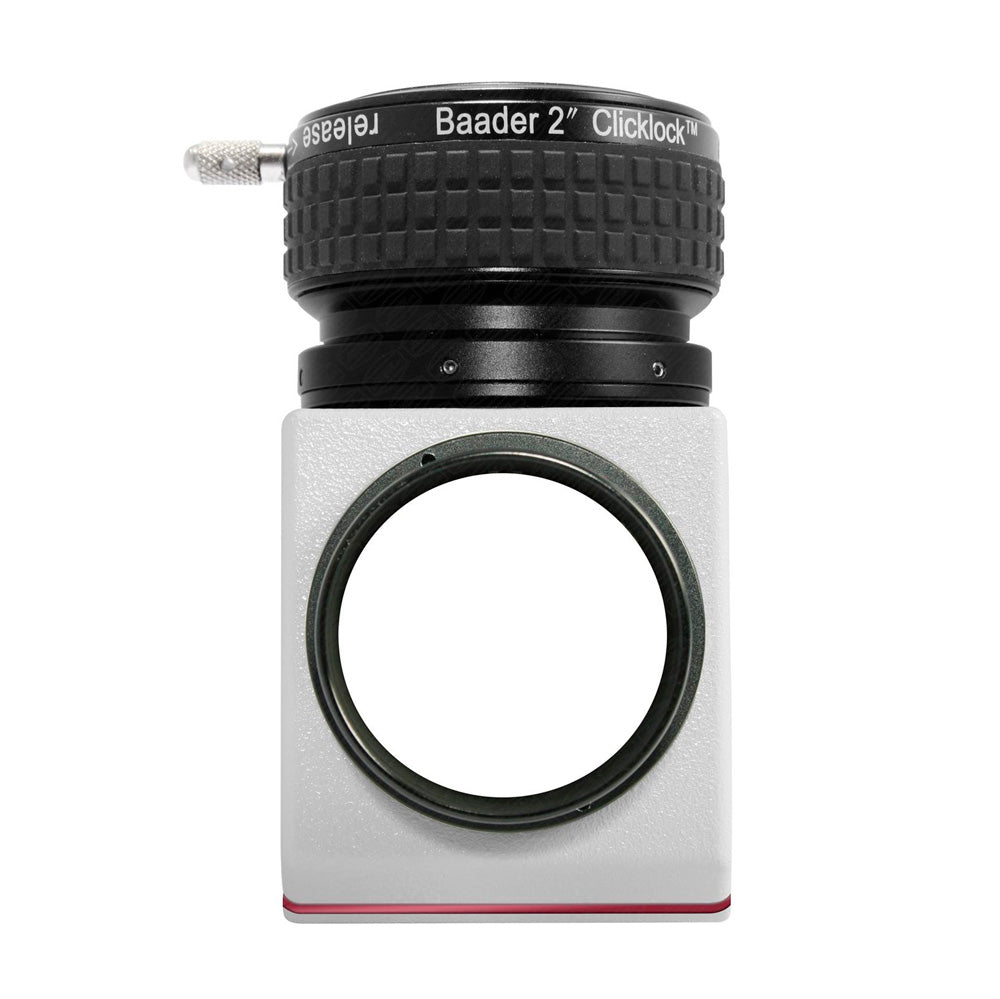

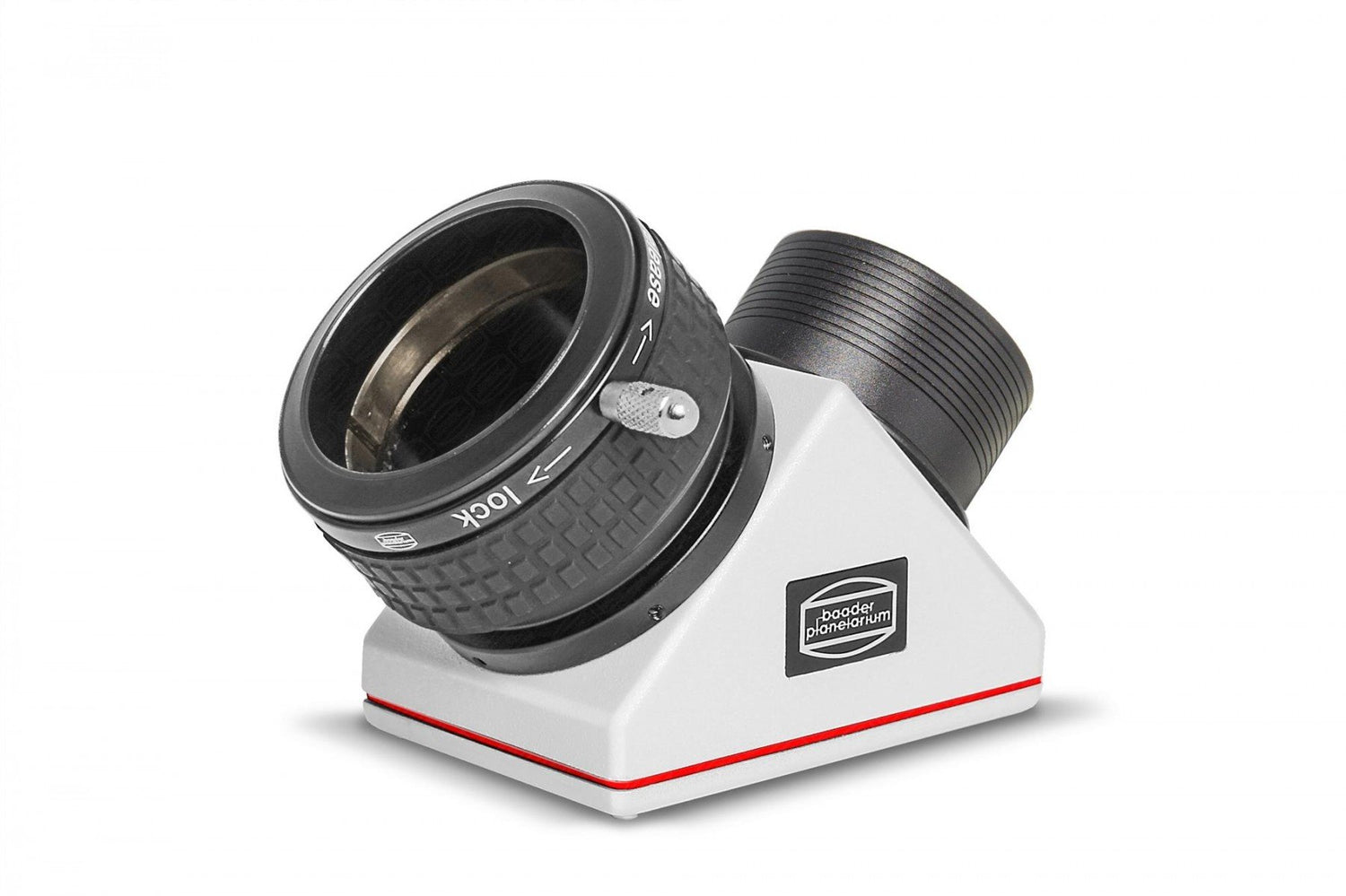

The Baader 2" Clicklock Dielectric Mirror Diagonal is a high quality 90° mirror-type star diagonal with dielectric coatings for 99% reflectivity, giving high contrast and resolution for planetary, lunar and binary star observation.
The oversized mirror substrate is polished to 1/10th lambda accuracy for the highest image quality and features scratch resistant hard coatings for a lifetime of use. The mirror rejects deep UV and IR radiation, allowing it to be used safely with white light and H-alpha solar filters.
The Baader 2" Clicklock clamp allows extremely precise and even securing of heavy eyepieces and accessories without introducing any tilt or offset. The removable 2" nosepiece is threaded on both ends for 2" filters and includes safety kerfs to prevent the diagonal from accidentally slipping. The mirror housing includes an S58 dovetail connection and M55 & 2" SC threads on both sides.
Specifications
| Optical design | Mirror diagonal |
|---|---|
| Reflection surface | Dielectrically coated |
| Image orientation | Erect image, mirror inverted |
| Optical length |
112 mm |
| Deflection angle |
90 degrees |
| Clear aperture | 46.6 mm |
| Connection telescope side |
2" barrel with M48 x 0.75 female thread |
| Connection eyepiece side |
2" clamp |
| Weight | 480 g |
| SKU | BA2956100 |
