BAADER 1.25" NOSEPIECE - M42

$49.00AUD
SKU: BA2458106

Baader Planetarium

  • Optical thickness: 1.5 mm

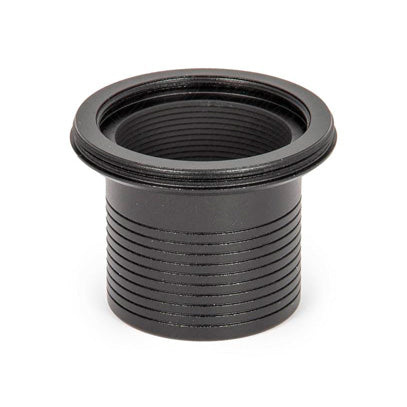

The Baader 1.25" Nosepiece to M42 adapter allows you to attach accessories with M42 x 0.75 (T2) female threads to a 1.25" barrel receptacle. On the telescope side is a female M28.5 thread for attaching all 1.25" mounted filters. The proprietary safety kerf grooves ensure a secure fit so that even the heaviest accessories will not accidentally fall to the ground.

The camera-side threads are only 3mm tall for maximum compatibility with modern cameras.

Specifications



Optical length
 1.5 mm
Clear aperture
 28 mm
Outer diameter
 43 mm
Connection telescope side 1.25" barrel with M28.5 filter thread
Connection camera side M42 x 0.75 (T2)
Weight 20 g
SKU BA2458106
BAADER 1.25" NOSEPIECE - M42.

BAADER 1.25" NOSEPIECE - M42

$49.00AUD

Optical design

Image circle

Focal ratio

Aperture

Focal length

Optical thickness

Optical thickness: 1.5 mm

Threads

1.25" Barrel, M42 x 0.75 Male
