ASKAR SQA70 f/4.8 APO QUINTUPLET FREE GUIDE

$2,999.00AUD
SKU: AS-SQA70-FREE-GUIDE

Askar

Apochromatic Quintuplet

3.5 kg

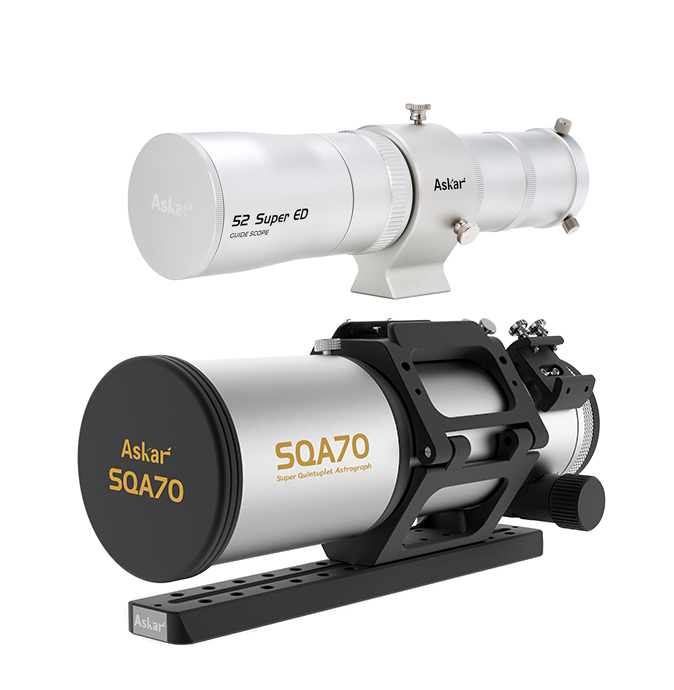

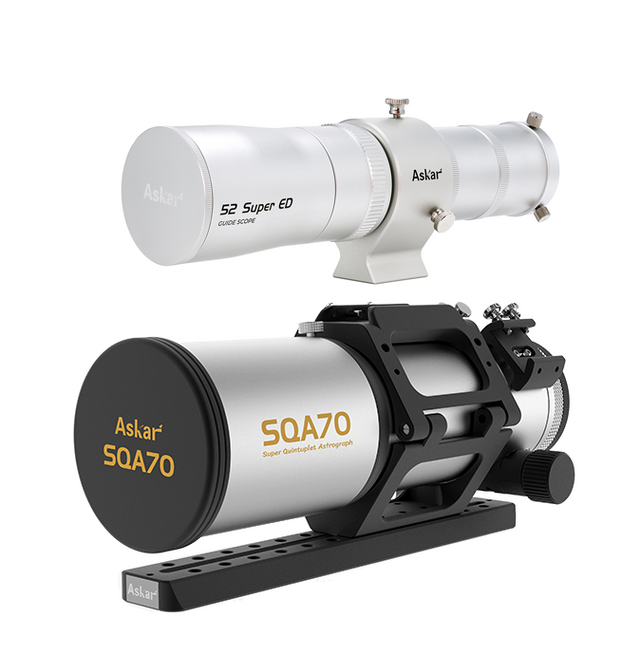

For a limited time, customers who purchase the SQA70 will receive a free 52 Super ED guide scope. Valued at $499!



The Askar SQA70 is an apochromatic quintuplet flat-field astrograph that offers high performance thanks to its air-spaced 2 pieces of ED lens design. The SQA70 is a Petzval lens structure, due to the self-flattened design, the support back focus has a wide range between 37 to 68 mm.

With a 44 mm full frame image circle support, a central star point RMS radius of less than 1.84 µm, and a full-field illumination of over 90% at 44 mm image circle, it ensures superb image quality. MTF data reveals excellent performance, with a super-fine star point of less than 2.4 µm at full frame sensor corners.




Thanks to its Petzval design, you don't need to worry about reaching a precise backfocus distance. As long as you're in focus, you're good to go.





The SQA70 has a 2.5" dual-speed rack & pinion focuser which is compatible with most motorized focusers on the market, such as the ZWO EAF, the Touptek AAF or the QHY Q-Focuser. Like the rest of the tube, the entire focuser barrel is CNC-machined for strength and rigidity. Anti-reflective matte paint ensures that the stray light is kept to a minimum.





The SQA70 include M42, M48 (with M48×0.75 filter thread) and M54 adapters for an easy connection to most off axis guiders, filter wheels and cameras. The rear high-precision 360 degree rotator is engraved with a micrometric scale, making repeatable framing for astronomical targets straightforward.





Two finder brackets on the focuser as well as a finder saddle on the top of the rings allows you to connect a variety of accessories such as guiders and control units. The 290 mm Vixen style dovetail plate gives you plenty of room to balance the scope with most imaging trains.





A durable water resistant resin case with EVA foam interior keeps the telescope safe and offers plenty of space for additional accessories.





Optical Performance






Specifications



Optical design

Apochromatic air-spaced quintuplet with two UD lens

Objective diameter

70 mm

Focal length

336 mm

Focal ratio

f/4.8

Mount attachment

290 mm Vixen style dovetail plate, integrated tube rings

Focuser

Dual-speed 2.5" rack & pinion

Tube weight

2.68 kg (3.5 kg with dovetail and rings)

Tube length

332 mm (372 mm when the dew shield is extended out)

Tube diameter

96 mm

Dew shield diameter

103 mm

Connections

M42/M48(with M48×0.75 filter thread)/M54 adapters

Backfocus range

37 - 68 mm from M48 thread

Image circle

44 mm

SKU

AS-SQA70



 Items included



  • SQA70 OTA
  • Padded soft case
  • Tube rings and 290 mm Vixen style dovetail plate
  • M76 x 1, M54 x 0.75, M48 x 0.75 and M42 adapters
  • Manual
Downloads



 Instruction manual

Gallery



 Yinjie Zheng | IC 1805 Heart Nebula | ASKAR SQA70 + ZWO ASI 2600MC




ASKAR SQA70 f/4.8 APO QUINTUPLET FREE GUIDE

$2,999.00AUD

Optical design

Apochromatic Quintuplet

Image circle

44 mm

Focal ratio

f/4.8

Aperture

70 mm

Focal length

336 mm

Optical thickness

Threads

M68 x 1 Male, M54 x 0.75 Male, M48 x 0.75 Male

Cooled

Colour or Mono

Pixel size

Sensor dimensions

Resolution

Sensor diagonal

Quantum efficiency

Read noise

Fullwell capacity

Bit depth

FPS

Camera backfocus

Filter size

Filter size

Bandpass (FWHM)

Bandpass (FWHM)

Glass thickness

Mount type

Payload capacity

Latitude range

Dovetail saddle

Slew speed

Encoders

Periodic error correction

Counterweight shaft

Azimuth adjustment range

Internal diameter

Illuminated diameter

Compatible telescope external diameter

Weight

3.5 kg

Length

Width

Height
