ASKAR 0.7x FLATTENER AND REDUCER FOR FRA400 & FRA500
Askar
0.39 kg
ASKAR 0.7x FLATTENER AND REDUCER FOR FRA400 & FRA500 is backordered and will ship as soon as it is back in stock.

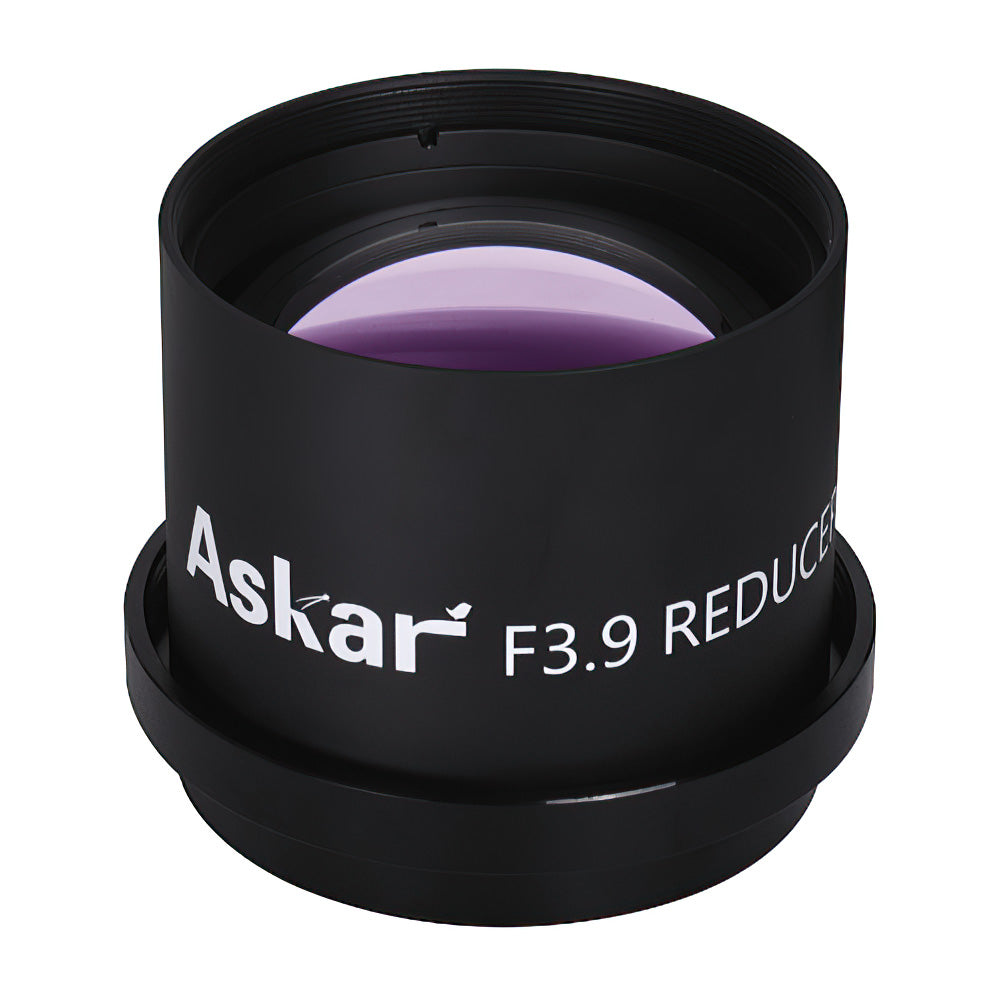

The field flattener & reducer for the ASKAR FRA 400 & FRA 500 is a dedicated corrector with a reducing power of 0.7X. It shortens the focal length from 400mm to 280mm and the focal ratio from f/5.6 to f/3.9 halving the exposure time. The working distance between the flattener and the sensor is 55mm.
The flattener/reducer can be connected to the focuser of the Askar FRA 400 & FRA 500 using the M68 x 1 male thread, on the camera side there is the universal M48 x 0.75 male thread. The flattener has an internal M48 x 0.75 thread to accept any standard 2" filter.
Spot diagram SharpStar 400 + 0.7x dedicated reducer
Specifications
| Reducing power |
0.7 X |
|
Focuser connection |
M68 x 1 male |
|
Camera connection |
M48 x 0.75 male |
|
Working distance |
55 mm |
|
Length |
63 mm |
|
Weight |
385 gr |
|
Width |
63 mm |
|
Outer diameter |
76 mm |
|
SKU |
ASA-FRA400-R |
Gallery
