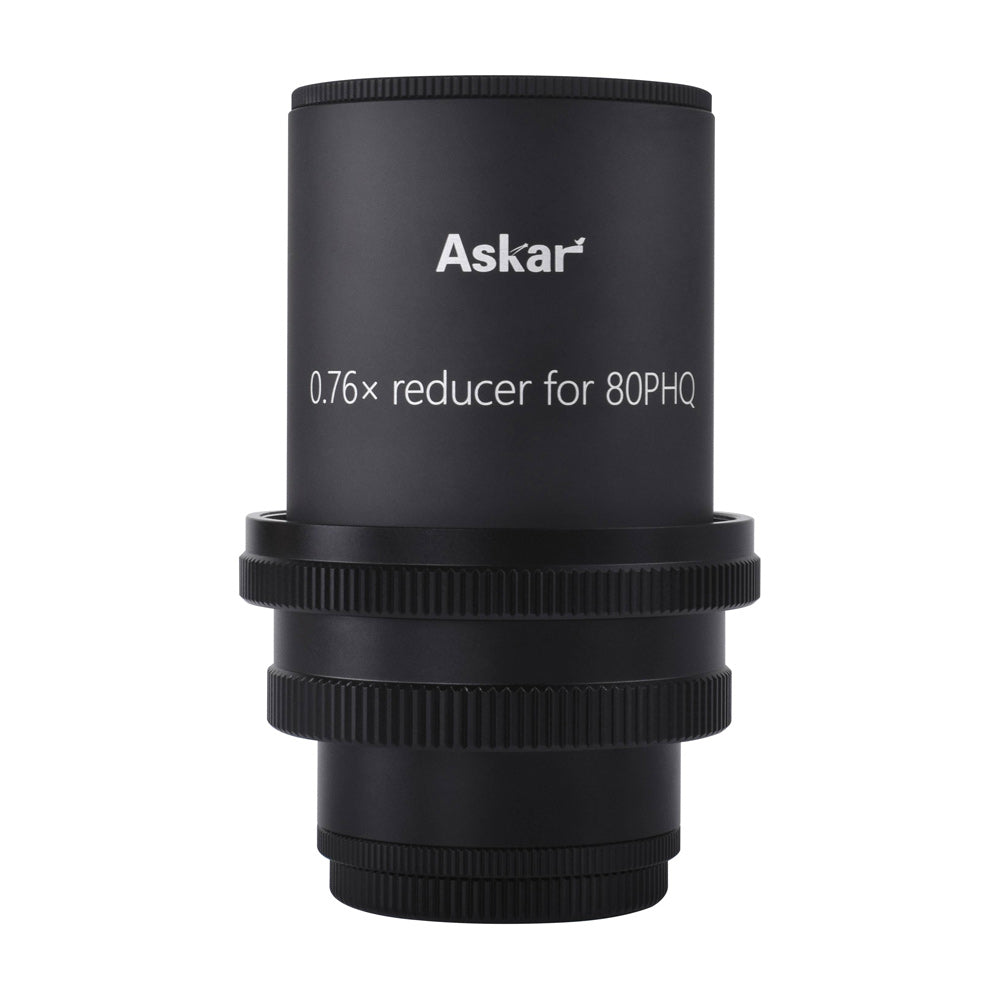

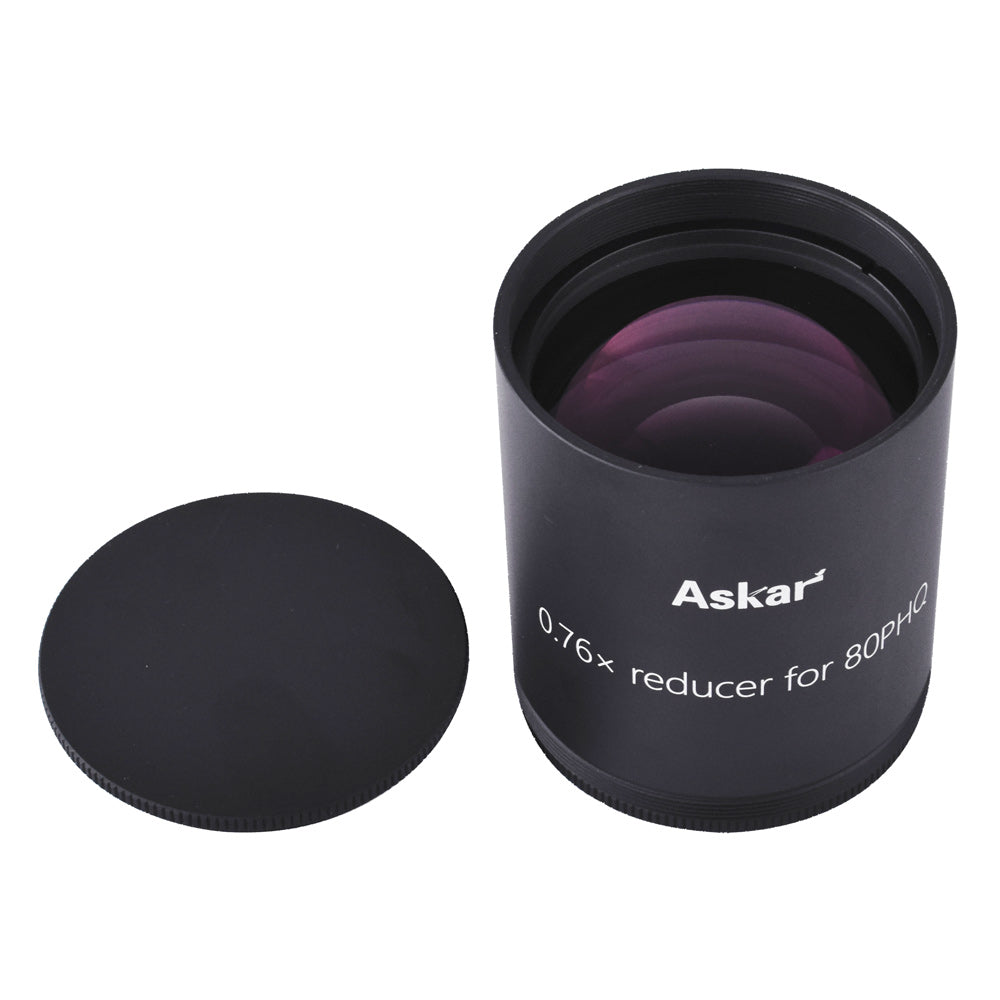

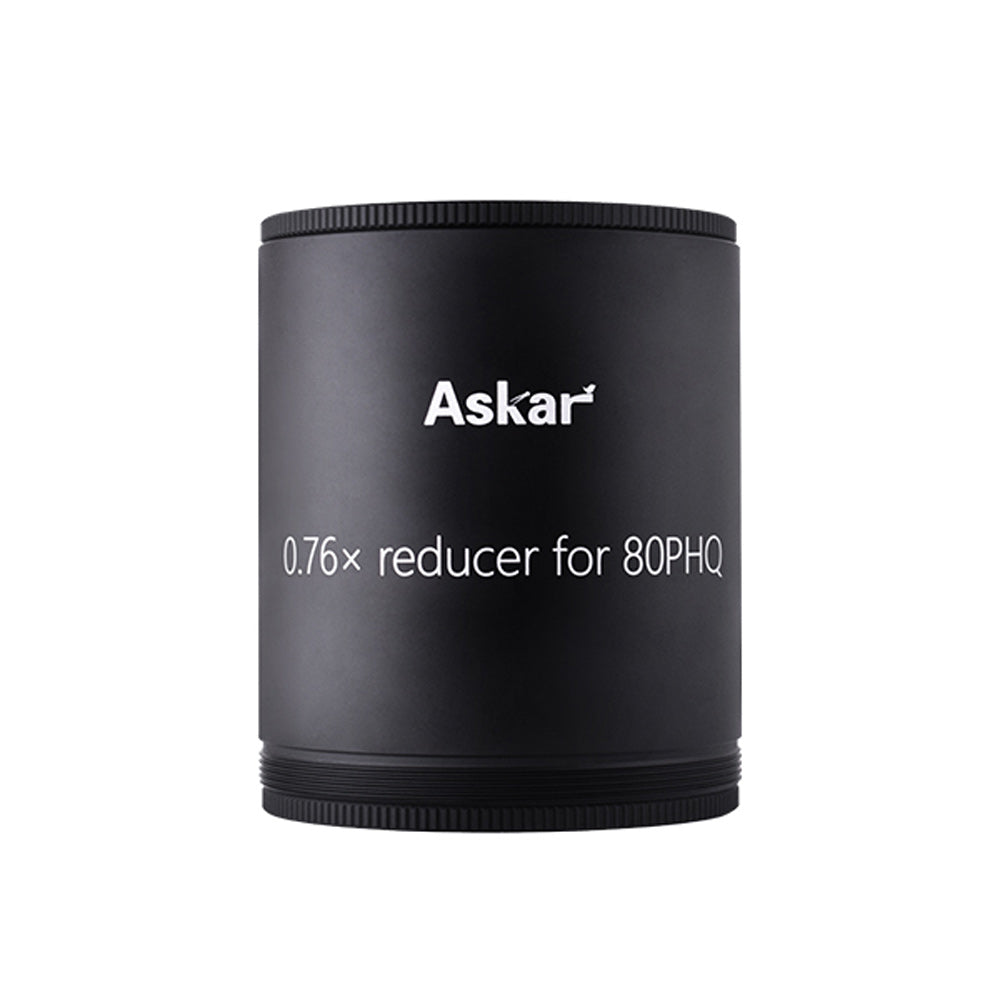

ASKAR 0.76x REDUCER FOR 80PHQ

$429.00AUD
SKU: ASA-80PHQ-R

Askar



The Askar 0.76x Flattener/Reducer for the 80PHQ is a 3" corrector for full frame sensors. The flattener/reducer is a triplet design with one element of ED (Extra-low Dispersion) glass. The 0.76x reduction factor shortens the focal ratio of the 80PHQ to f/5.7, shortening the exposure time and increasing the field of view.

When paired with this flattener/reducer, the focal length of the 80PHQ becomes 456mm, transforming it into an extremely capable widefield astrograph. The flattener/reducer has a backfocus requirement of 55mm, making it straightforward to connect common imaging trains.





Specifications



Reduction factor 0.76 x
Telescope connection M68 x 1, M64 x 0.75
Camera connection M68 x 1, M54 x 0.75, M48 x 0.75
Image circle Full frame
Backfocus distance 55 mm
Weight TBD
SKU ASA-80PHQ-R



Instructions



ASKAR 0.76x REDUCER FOR 80PHQ.

ASKAR 0.76x REDUCER FOR 80PHQ

$429.00AUD

Optical design

Image circle

Focal ratio

Aperture

Focal length

Optical thickness

Threads

M64 x 1 Female, M68 x 1 Male, M54 x 0.75 Male, M48 x 0.75 Male
