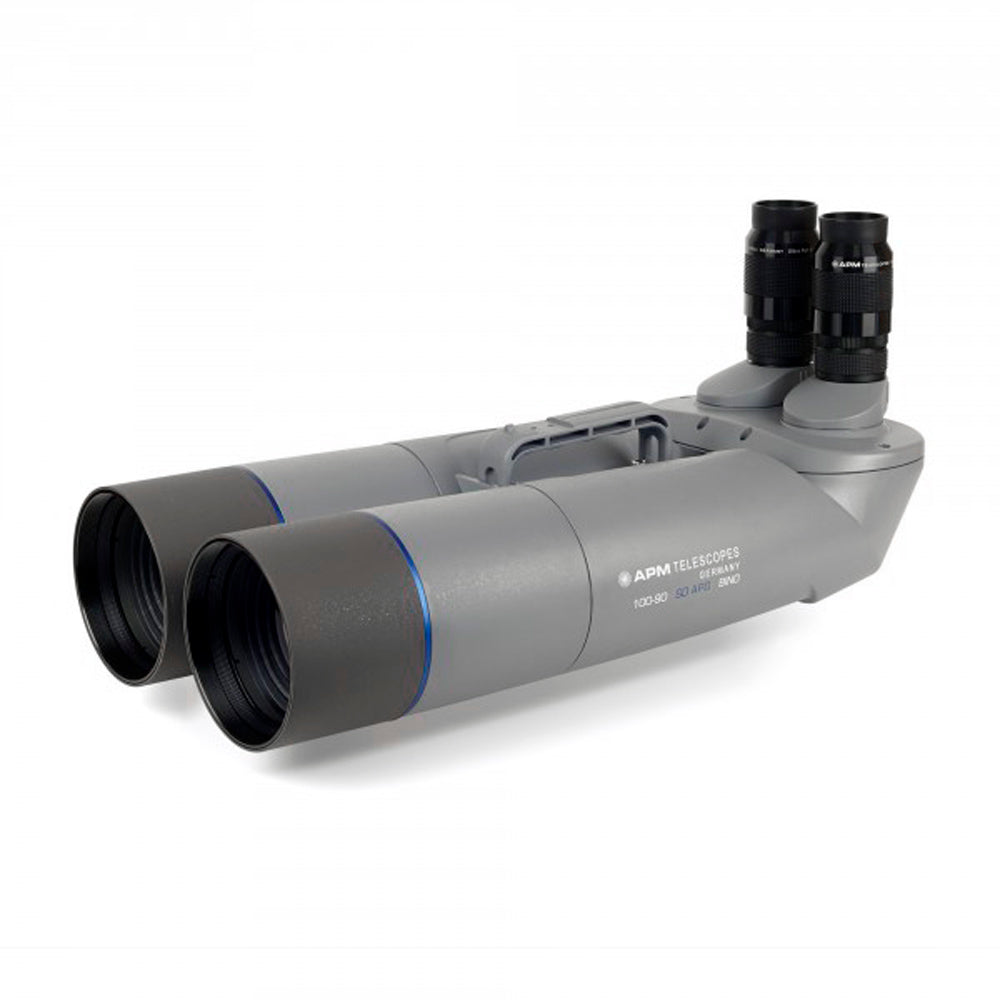

APM 100mm SD ED APO BINOCULARS 90°
APM
APM 100mm SD ED APO BINOCULARS 90° - NO CASE is backordered and will ship as soon as it is back in stock.
The APM 100mm SD ED 90° Binoculars are high quality apochromatic binoculars with FCD100 doublet lenses and BAK-4 prisms for exceptional views of astronomical and terrestrial objects. All optical surfaces are fully broadband multi-coated for high transmission and contrast.
The use of FCD100 glass objectives result in excellent colour correction and truly apochromatic performance. With 100mm objectives, it is possible to observe faint nebulae and make use of higher magnifications for planetary and Lunar viewing.
The extendable dew shields protect the lenses during long observations and can be used as a light shade during daytime viewing. The binoculars include a tripod mounting connection and a heavy duty carrying handle. The nitrogen-filled housing is weatherproof and made of magnesium alloy for maximum rigidity and lightness.
APM binoculars are designed to provide comfortable focus position with common high-end 1.25" eyepieces such as those by Baader. The interpupillary distance can be adjusted and each eyepiece can be individually focused. Thanks to the standard 1.25" holders, wide-angle eyepieces can be used.
Both 90° and 45° versions are available. Typically 45° is better suited to low altitude astronomical objects and earth observation, with the 90° version providing a more comfortable position for high altitude astronomical objects.
Note: A pair of 24mm Ultra Flatfield eyepieces are included. It is highly recommended to mount these on a tripod such as the incredibly sturdy Geoptik Binoplus Pantograph mount.
Specifications
Focusing system |
Helical focuser for each eyepiece |
---|---|
Objective design |
2 element air-spaced apochromat with rear FCD100 lens |
Tripod thread |
1/4"-20 thread |
Coating |
All optical surfaces fully broadband multi-coated |
Housing |
Magnesium alloy |
Eye relief |
54 - 75 mm |
Prism size |
28 mm |
Front lens diameter | 100 mm |
Objective angle of view | Max 2.93° |
Focal length | 550 mm |
Dimensions | 560 x 270 x 200 mm |
Weight | 8.05 kg including tripod adapter without eyepieces |
Waterproof | Yes, nitrogen-filled |
Dew shields | Extendable, 120 mm inner diameter, 124 mm outer diameter |
Dew shield inner diameter thread | M116 x 1-6H, 6mm threads |

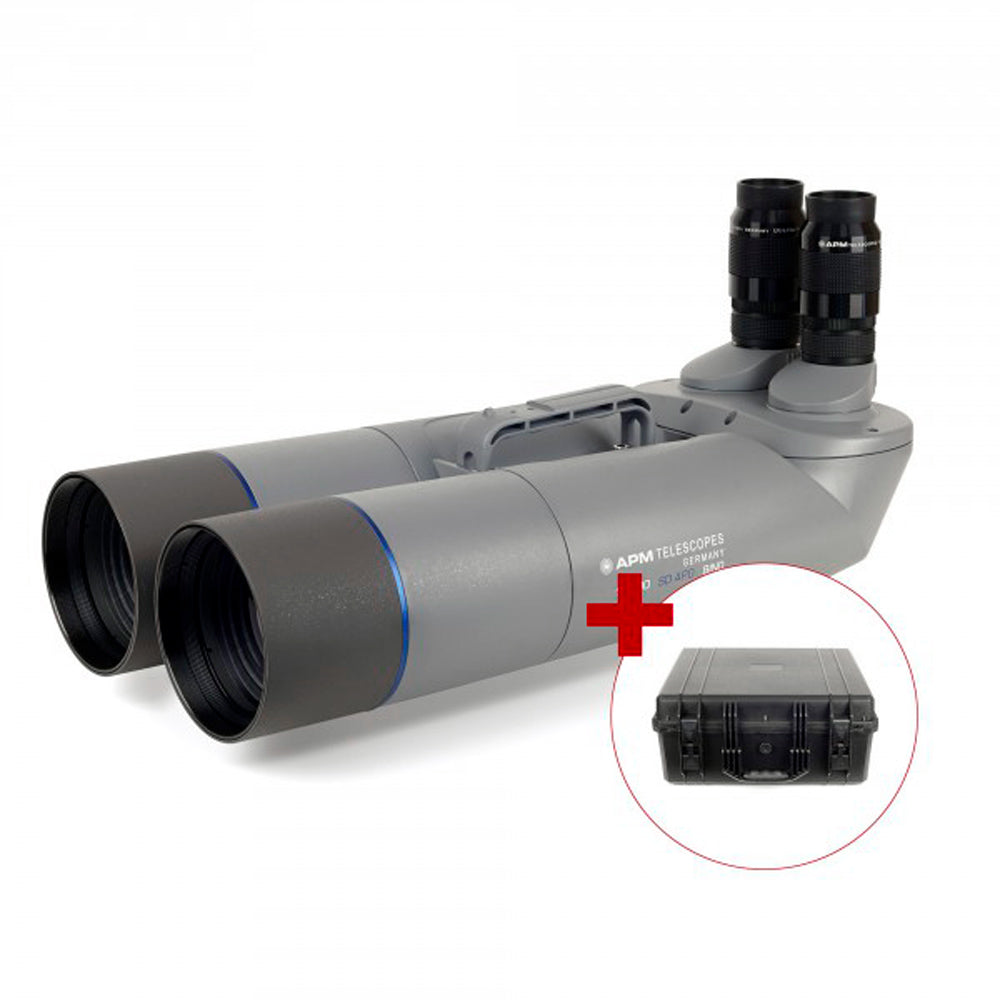

SKU | APM-FCD100-Bino90 (without case), APM-FCD100-Bino90-hc (with hardcase) |
-
Aperture
