Astronomy Specialist

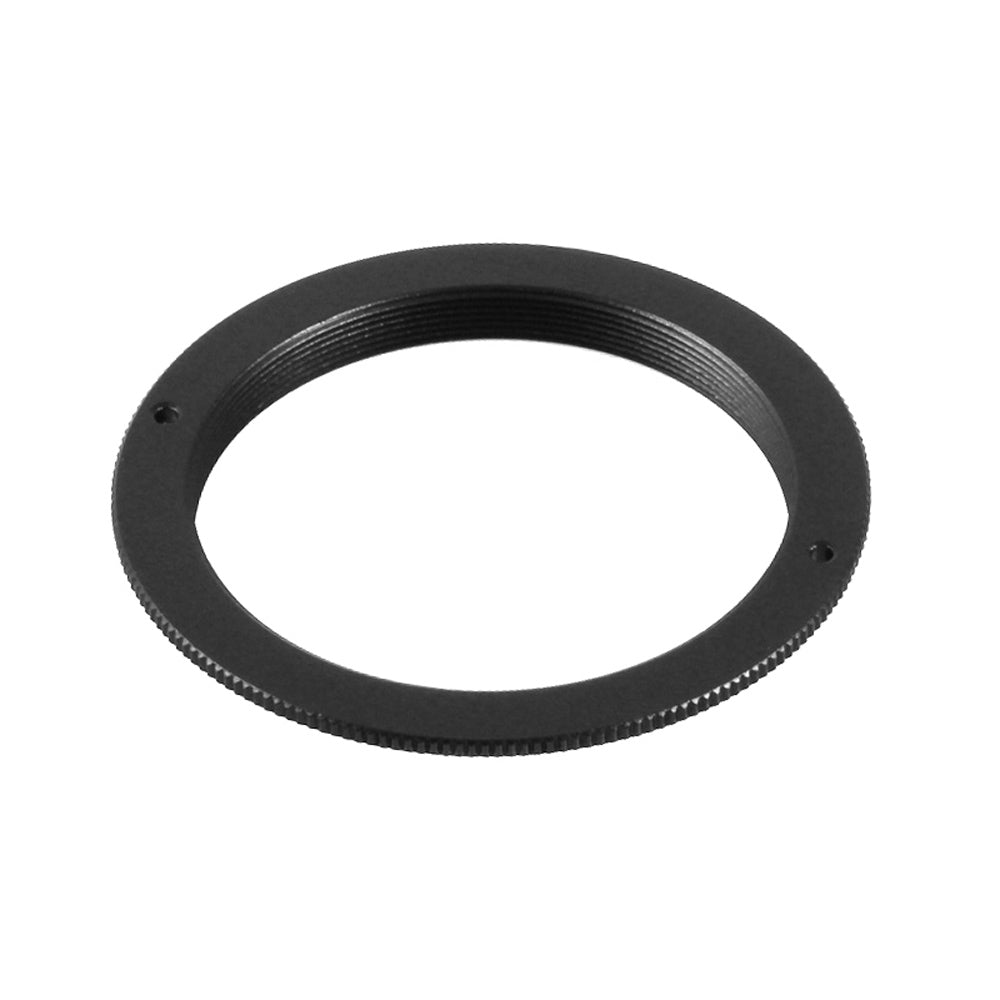

ADAPTER M52 MALE - M48 FEMALE 2mm

$59.00AUD
SKU: AX-M52M-M48F

Testar

  • Optical thickness: 2 mm



This M52 Male to M48 Female adapter has male M52 x 0.75 threads on one side and female M48 x 0.75 threads on the other. It can be used to connect accessories which have M52 female threads such as some Takahashi adapters and correctors to accessories with male M48 threads.

Specifications



Optical length
2 mm
Clear aperture
47 mm
Outer diameter
60 mm
Connection side A M52 x 0.75 male
Connection side B M48 x 0.75 female
SKU AX-M52M-M48F
ADAPTER M52 MALE - M48 FEMALE 2mm.

ADAPTER M52 MALE - M48 FEMALE 2mm

$59.00AUD

Optical design

Image circle

Focal ratio

Aperture

Focal length

Optical thickness

Optical thickness: 2 mm

Threads

M52 x 0.75 Male, M48 x 0.75 Female
