12V 5A POWER SUPPLY FOR SKYWATCHER AZ-EQ6, EQ6-R, EQ8-R, CQ350
Testar
12V 5A POWER SUPPLY FOR SKYWATCHER AZ-EQ6, EQ6-R, EQ8-R, CQ350 is backordered and will ship as soon as it is back in stock.

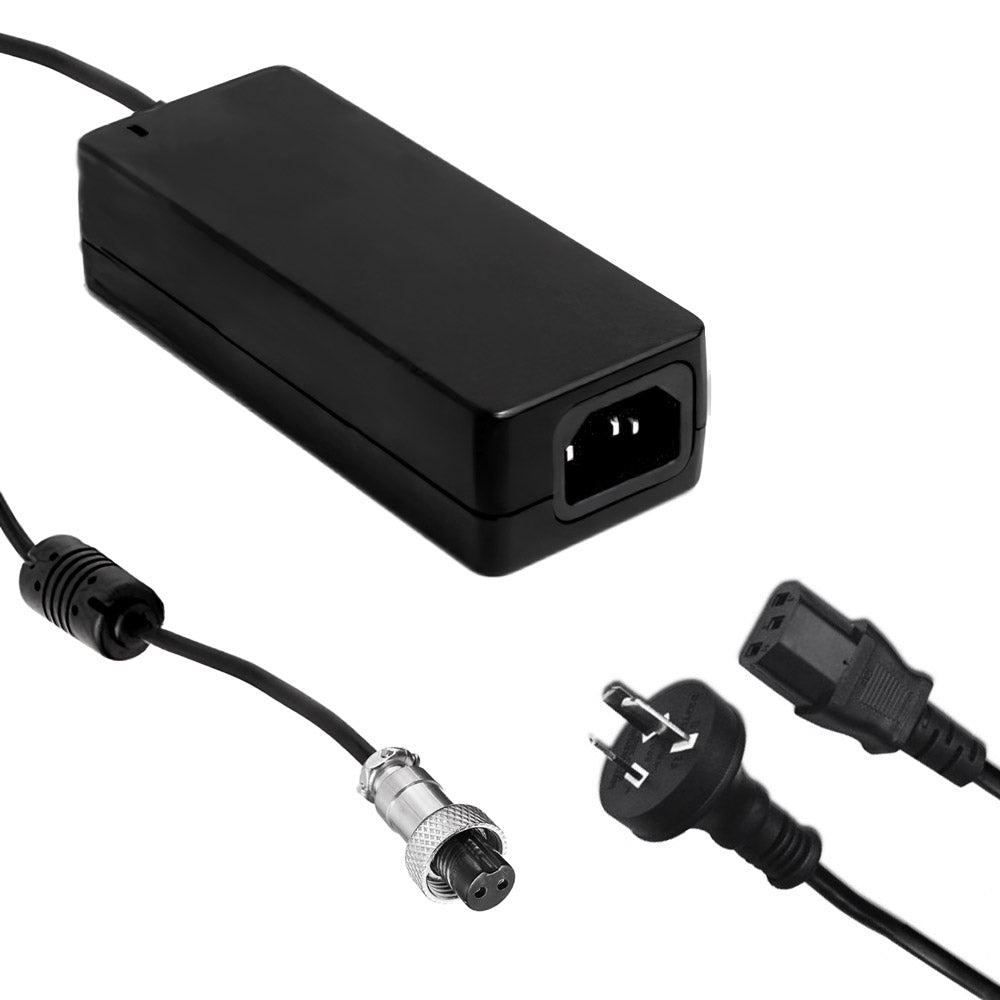

12V DC 5A power supply with a screw lockable output plug and IEC AC input cable for the Saxon Az-Eq6, Skywatcher AZ-EQ5, AZ-EQ6, EQ8-R, EQ8-Rh, EQ6-R Pro, CQ350 and the new NEQ6 mount. Fully Australian certified - unlike many generic power supplies that come with overseas products, this is fully compliant with all safety certifications!
Specifications
| Input voltage | 90 - 264VAC |
|---|---|
| Input current | 1A / 230VAC |
| Output voltage |
12V |
| Output current |
5A |
| Rated output power |
60W |
| Output connector |
Saxon Az-Eq6 SkyWatcher mount: new NEQ6, Az-Eq5, AZ-Eq6, Eq6-R, Eq8-R, Eq8-Rh |
| Efficiency |
89.5% |
| Operating temperature range | -30 to +70º C |
| Approvals | AS/NZS, RCM, CE, UL, CCC, FCC, TÜV, PSE, KCC, EAC |
| Protections | Short circuit, overload, over-voltage, over-temperature |
| No load power consumption | <0.075W |
| Max ripple & noise | 120mV p-p (measured at 20MHz using 12" twisted pair terminated with a 0.1μF & 47μF capacitor) |
| Output cable length | 1m |
| Input cable length (240V) | 1.8m |
Customer Reviews
Works a treat for the azeq6, I now have 2 of them one fore each mount
Needed a new power supply after my original that came with the mount went faulty, it used cigarette style plugs which I never liked. This one is a much better design and works well, also I keep the the main power box near the mount so the cable to the mount is long enough not to get pulled when the mount slews to odd angles. Very happy with purchase .
extremely happy with the power supply it is as advertised and delivery was on time
It does exactly what it says on the tin. Nice unit. The only downside (and I am being fussy) is that the lead from the power supply to the mount is a bit short so needs to be stuck to the mount. The unit cannot be left on the ground. A strip of 3M Dual Lock tape does the job nicely.
Good turn around from Testar.
Very happy with the replacement power cable for my SkyWatcher EQ6 Pro mount.
I will have to be much more careful with this one, from things that go bump in the night!
Great service and delivery from Testar, thank you!
