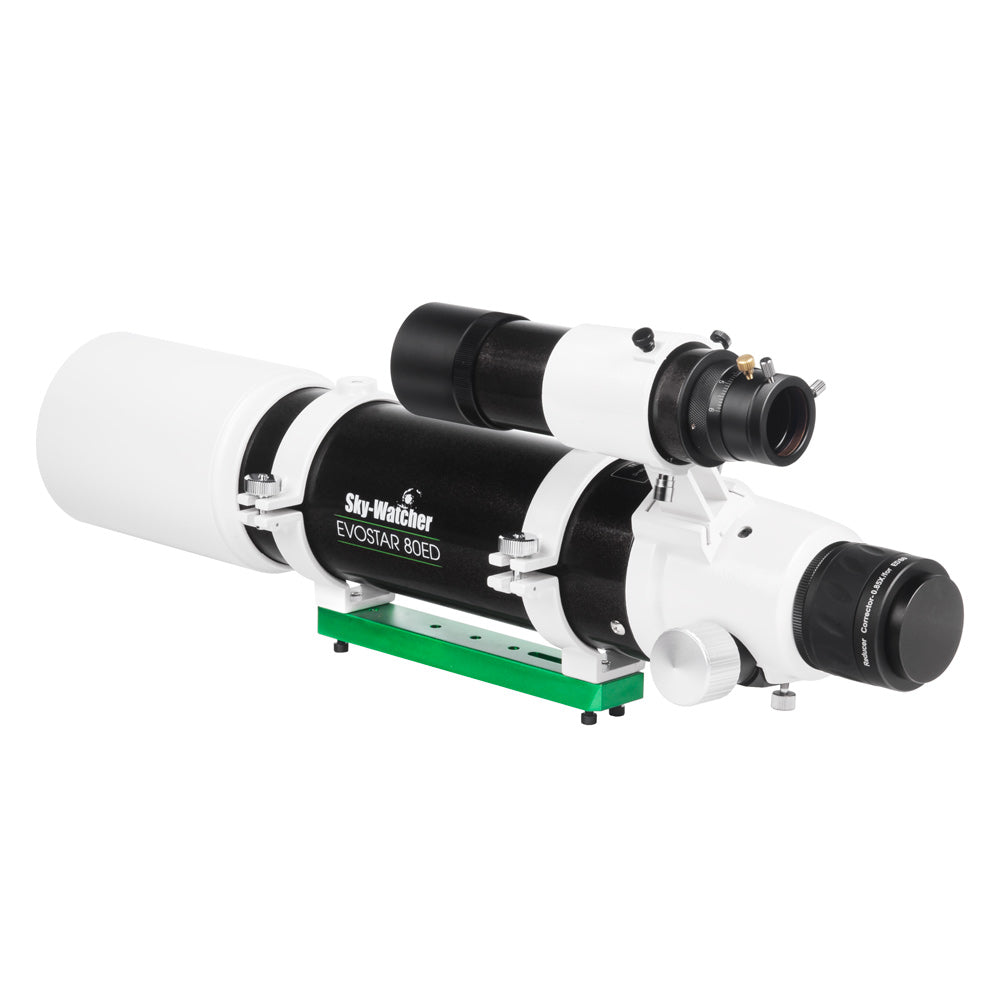

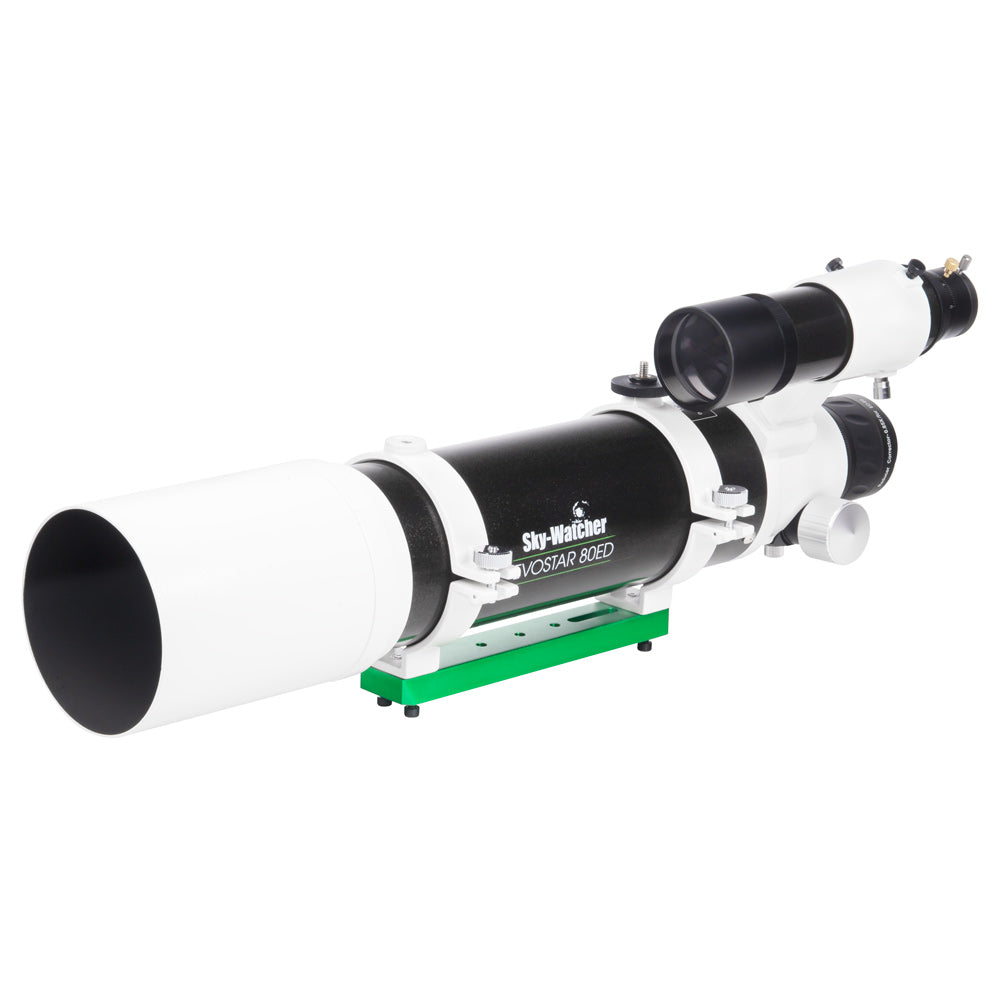

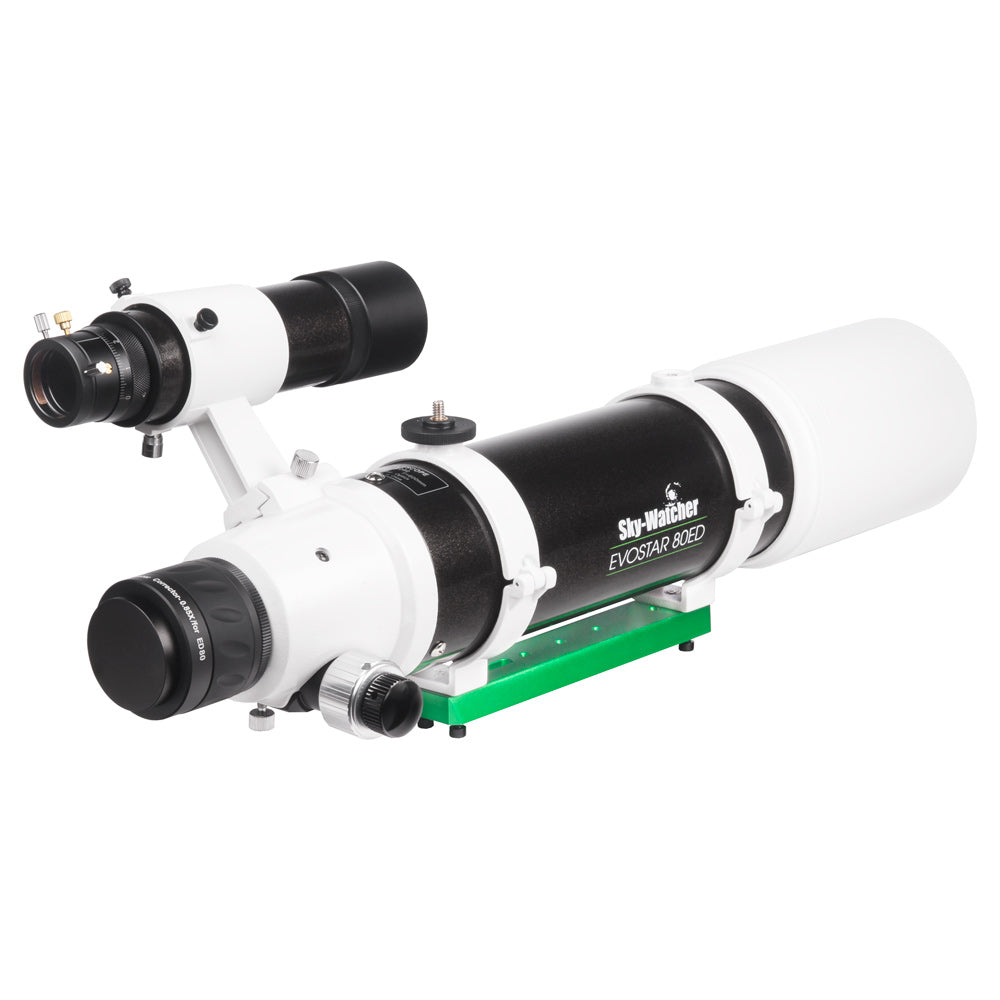

The Skywatcher Evostar 80ED Imaging Kit includes the popular Evostar 80ED apochromatic doublet refractor, dedicated field flattener/reducer, plus upgraded finderscope with Testar helical focuser, which allows you to use it as a guidescope with 1.25" barrel-sized guide cameras such as the ASI120MM Mini.
The Evostar 80ED is an apochromatic doublet refractor that offers high performance for visual observers and astrophotographers. The objective lens features an element similar in performance to FPL-53, extra-low dispersion glass (ED) that minimizes the chromatic aberration for the best colour correction. As a result, planets and the moon are sharp at high magnification and in astrophotography, images have a high contrast as stars are not surrounded by the purple halo due to chromatic aberration.

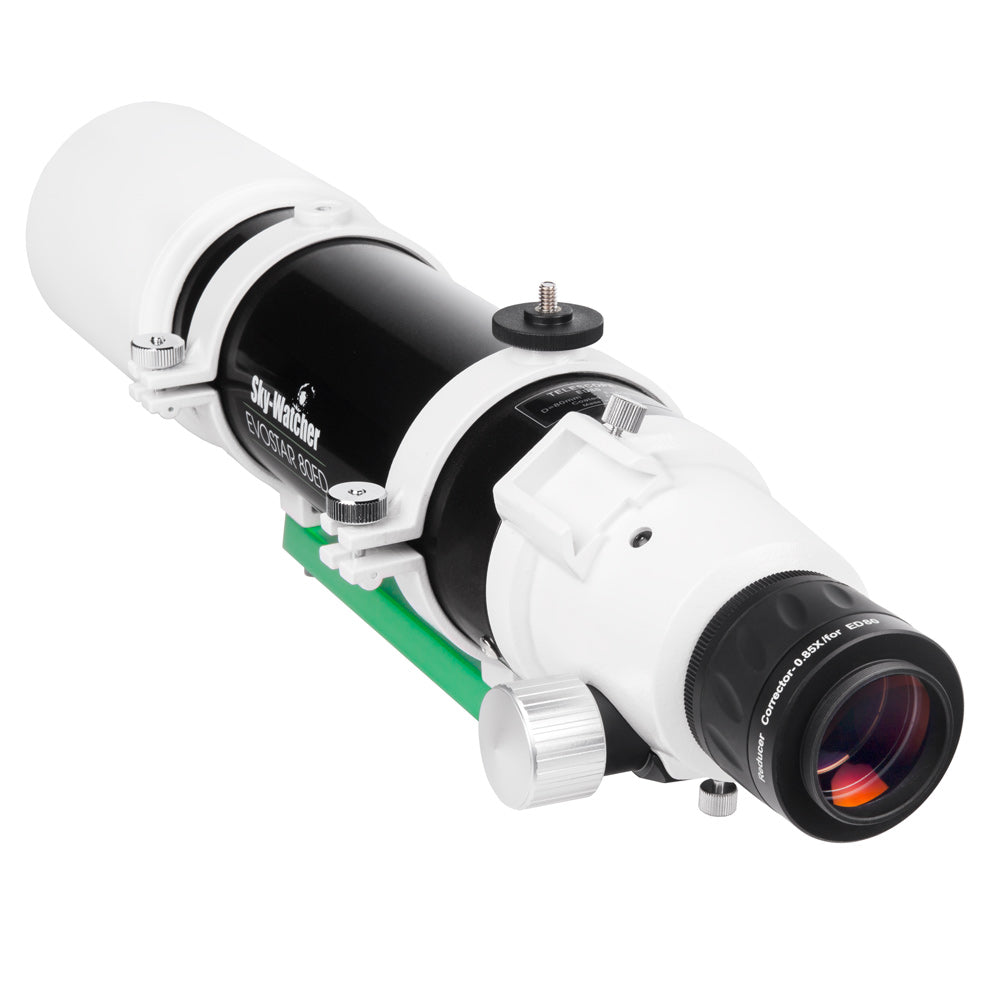

The 2" Crayford focuser is solid, precise and backlash free. It operates at two speeds due to the 10:1 reduction mechanism for an extra fine focusing adjustment, which is paramount for astrophotography and high resolution observations. The 0.85x field flattener/reducer turns the scope into a powerful astrograph corrected for the APS-C format.
The objective lens is fully multi coated with the Skywatcher proprietary "Metallic High-Transmission Coating" (MHC) for an effective anti-reflection result that approaches a transmission of 99.5%. The aluminium tube is light-baffled and blackened to ensure high contrast absorbing stray light.
The Evostar 80 ED is an excellent telescope for astrophotography. Its chromatic correction is the highest of all the Evostar telescopes and its small dimension and affordable price makes this telescope the best entry level apochromatic refractor for astrophotographers.
The sunspot AR 12192 has been the largest sunspot of the last 3 decades with a size of 129.000 km. Image taken with the Evostar 80ED, Canon Eos 6D at direct focus (image cropped), full aperture ND5 Astrosolar filter. Sydney, Australia 23 October 2014. |
Optical design |
Apochromatic ED doublet |
Objective diameter |
80 mm |
Focal length |
600 mm |
Focal ratio |
f/7.5 |
Resolving power |
1.50 arc second |
Stellar limiting magnitude |
11.5 |
Max. magnification |
160 x |
Light gathering power |
131 times the human eye |
Mount attachment |
Tube rings on Vixen bar (rings are 183 mm centre to centre apart) |
Focuser |
Crayford dual speed (10:1) |
Tube weight |
2.5 kg |
Tube length |
620 mm |
Tube diameter |
100 mm |
Dew shield diameter |
115 mm |
SKU |
SWBDED80-OTA+KIT1 |
- Evostar 80ED with dual speed focuser

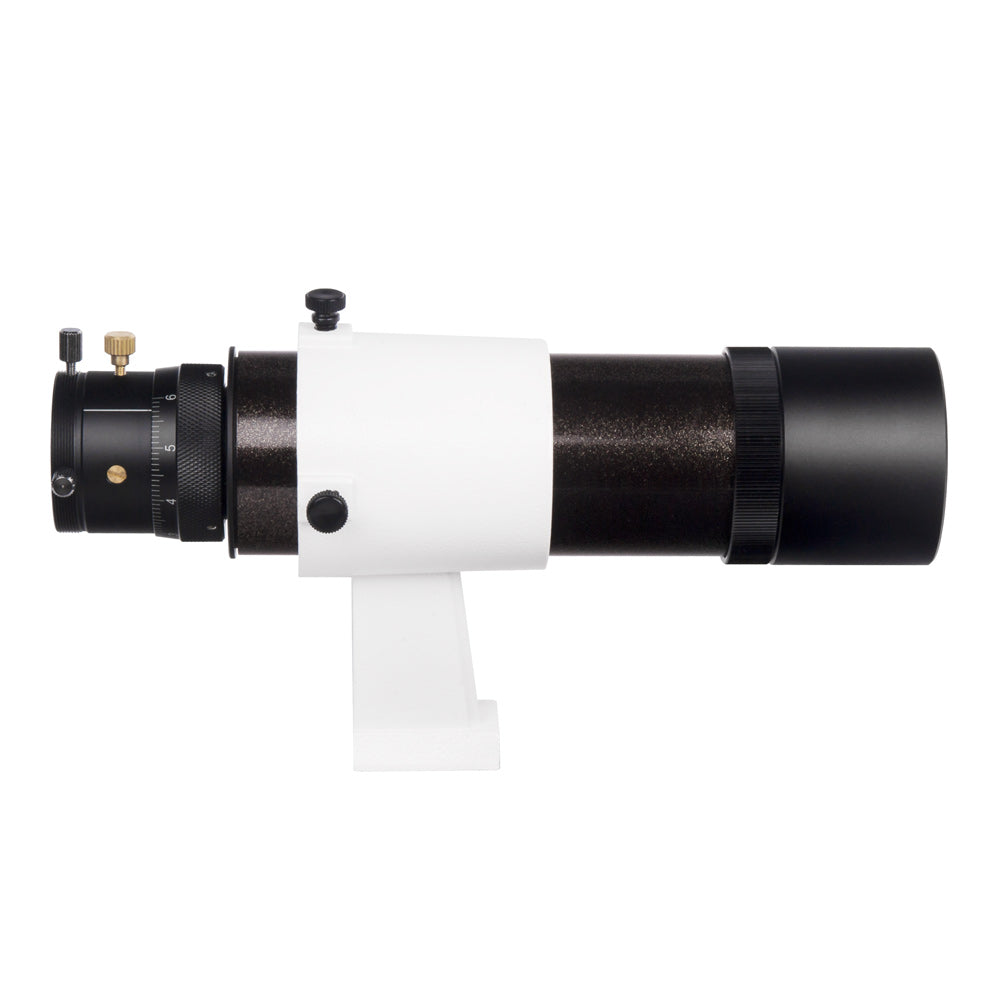

- Upgraded 8x50 finderscope with helical focuser and fast release bracket
- Field flattener/reducer
- 2" mirror diagonal (90°)
- 2" to 1.25" adapter for the diagonal
- 2" to 1.25" adapter with M42 thread
- M42 extension tube
- Eyepiece LET 28mm
- Tube rings with Vixen style bar
- Lens cap with aperture reduction mask
- Piggyback 1/4" screw with camera locking nut

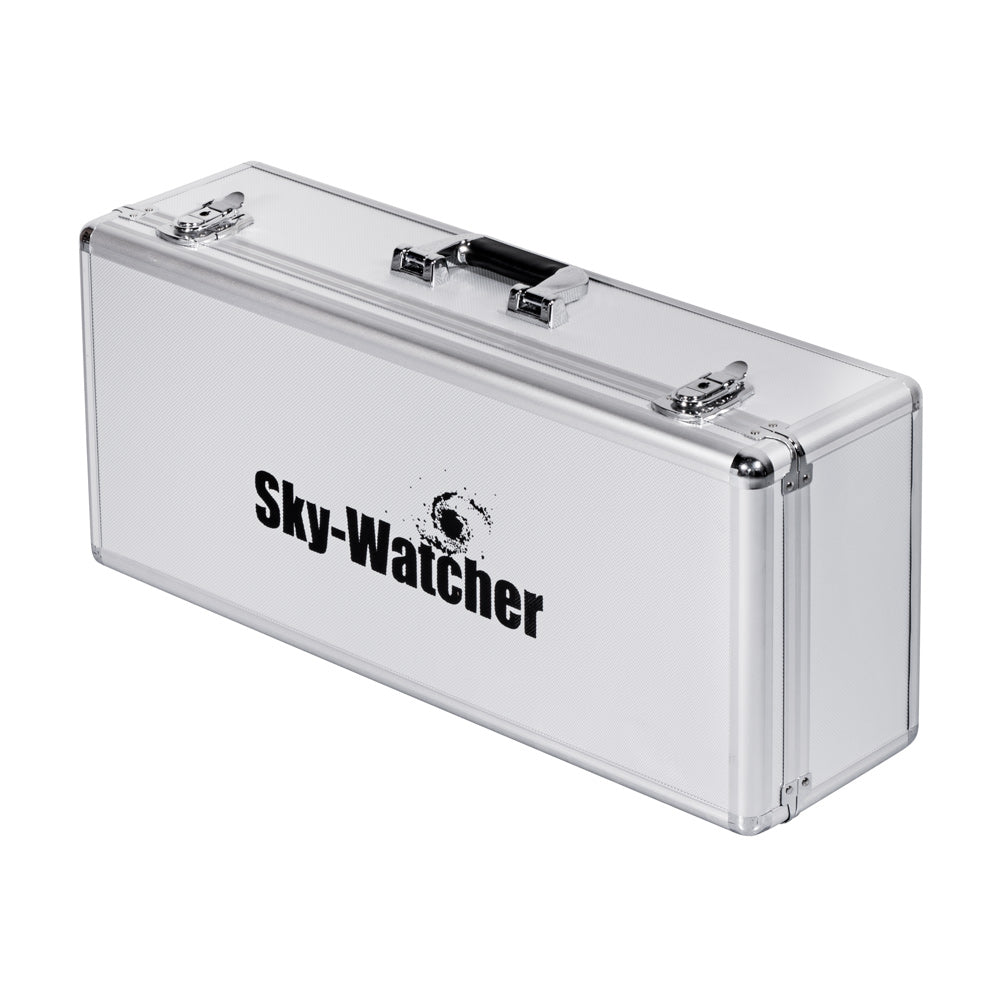

- Foam-lined aluminium carrying case
I recently had the pleasure of immersing myself in the mesmerizing world of astrophotography with the SkyWatcher EvoStar 80ED Imaging Kit from Testar. This compact and powerful kit proved to be a game-changer, offering impeccable image quality and an impressive array of features. Equally noteworthy was the exceptional customer service provided by Testar, which elevated my overall experience to new heights. Join me as I delve into the details of the EvoStar 80ED and the outstanding support provided by Testar.
Astro-Imaging Excellence:
The SkyWatcher EvoStar 80ED Imaging Kit is a compact marvel, equipped with an 80mm apochromatic refractor that delivers breathtaking image quality. The kit provides incredible sharpness, contrast, and color fidelity, without any signs of chromatic aberration. This allows for stunning captures of celestial objects, unveiling intricate details of galaxies, nebulae, and planets. The EvoStar 80ED consistently impressed me with its exceptional performance and ability to create awe-inspiring imagery.
User-Friendly Design:
The SkyWatcher EvoStar 80ED Imaging Kit features a user-friendly design that enhances the overall astrophotography experience. The compact size of the kit makes it easy to transport and set up, allowing for convenience and versatility. The 80mm apochromatic refractor telescope included in the kit showcases a robust construction and ergonomic design, ensuring durability and ease of use. With its straightforward operation, this kit is suitable for both beginners and experienced astrophotographers.
Superior Customer Service:
Testar's exceptional customer service deserves accolades. They promptly addressed my inquiries with in-depth knowledge and genuine enthusiasm for the field of astronomy. Their guidance and responsiveness made me feel valued as a customer, and their dedication to ensuring my satisfaction was evident throughout our interactions. Testar's commitment to customer support sets a remarkable precedent in the industry, making them a reliable partner for aspiring and seasoned astrophotographers alike.
Conclusion:
In conclusion, the SkyWatcher EvoStar 80ED Imaging Kit presents a captivating opportunity for astrophotography enthusiasts. With its impeccable image quality and user-friendly design, this kit allows for the creation of stunning astrophotographic images. Furthermore, Testar's exceptional customer service ensures a positive and enriching experience for their customers. I highly recommend the SkyWatcher EvoStar 80ED Imaging Kit, supported by Testar's exemplary customer service, to anyone seeking to embark on an enthralling journey into the world of astrophotography.
